Product Overview
The Gobel Power GP-WP1-16K is a highly scalable 16.1kWh (314Ah) LiFePO4 energy storage battery. Featuring an IP65 waterproof rating and the advanced GP-PC200B BMS, it provides safe, reliable power for residential and commercial off-grid applications. Expand your system easily with up to 63 units in parallel for a massive 1012kWh capacity.
Key Features
- 16.1kWh LiFePO4 Cells: 314Ah premium high-density cells for extended cycle life.

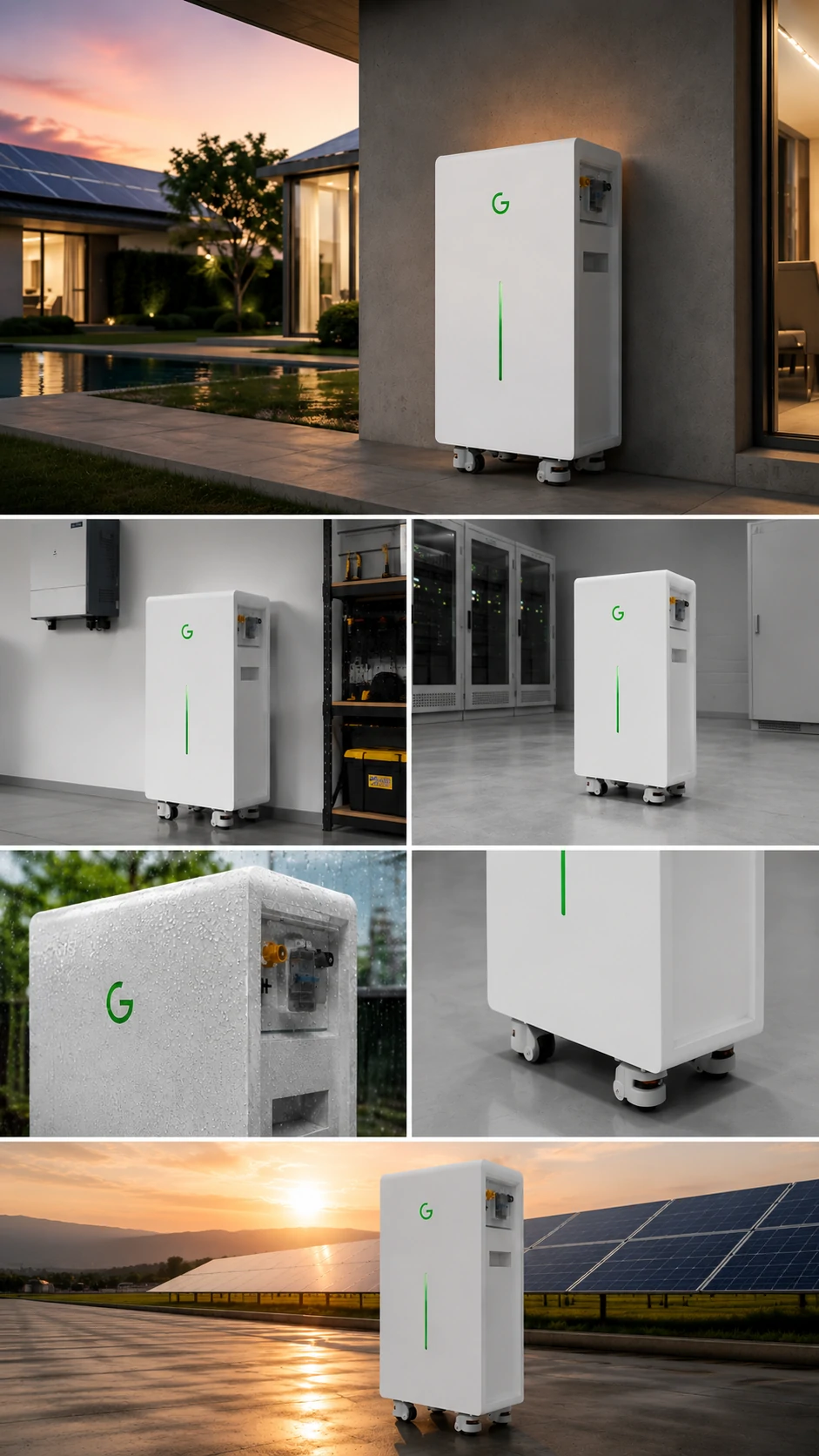

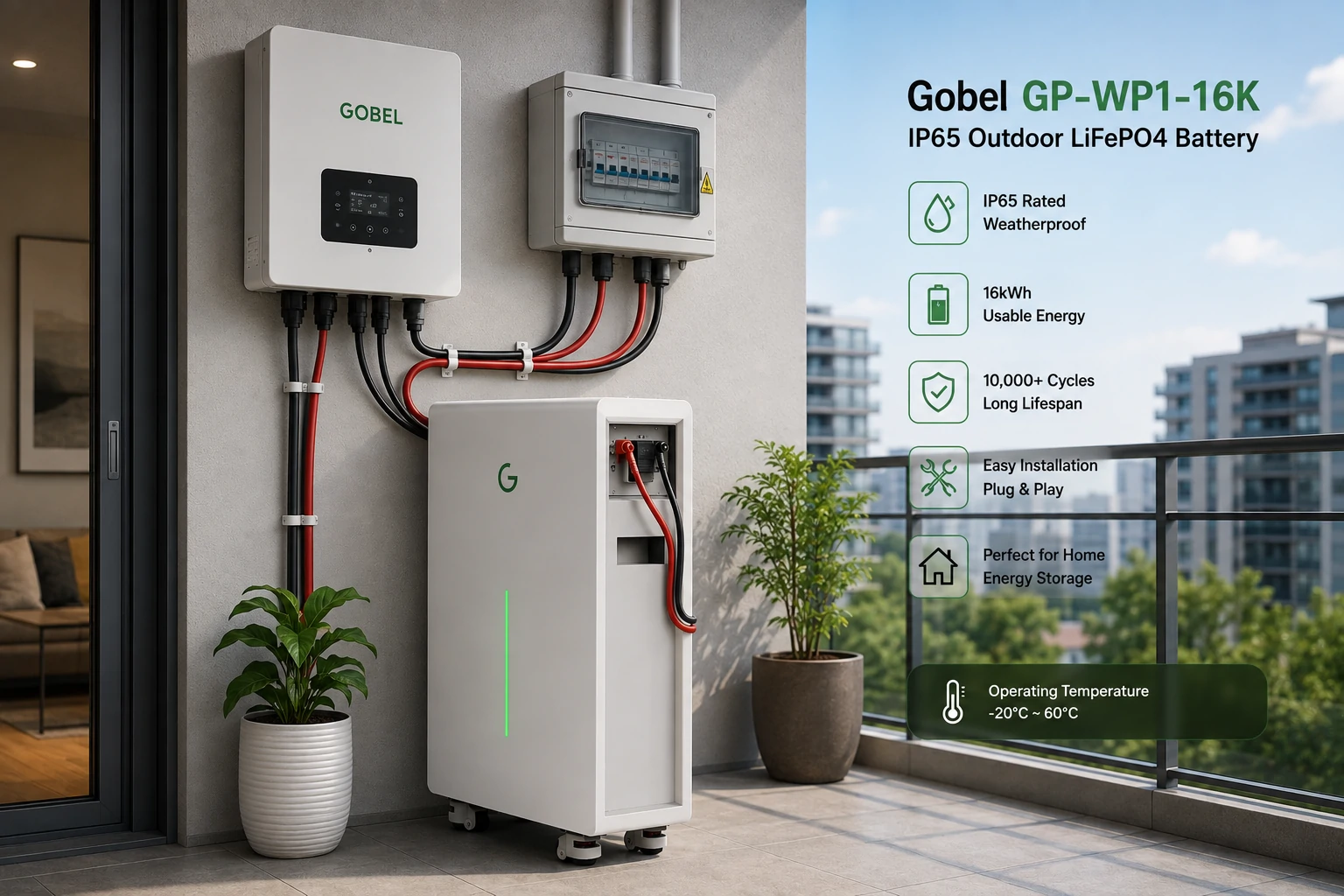

- IP65 Waterproof: Rugged enclosure safe for both indoor and outdoor installations.

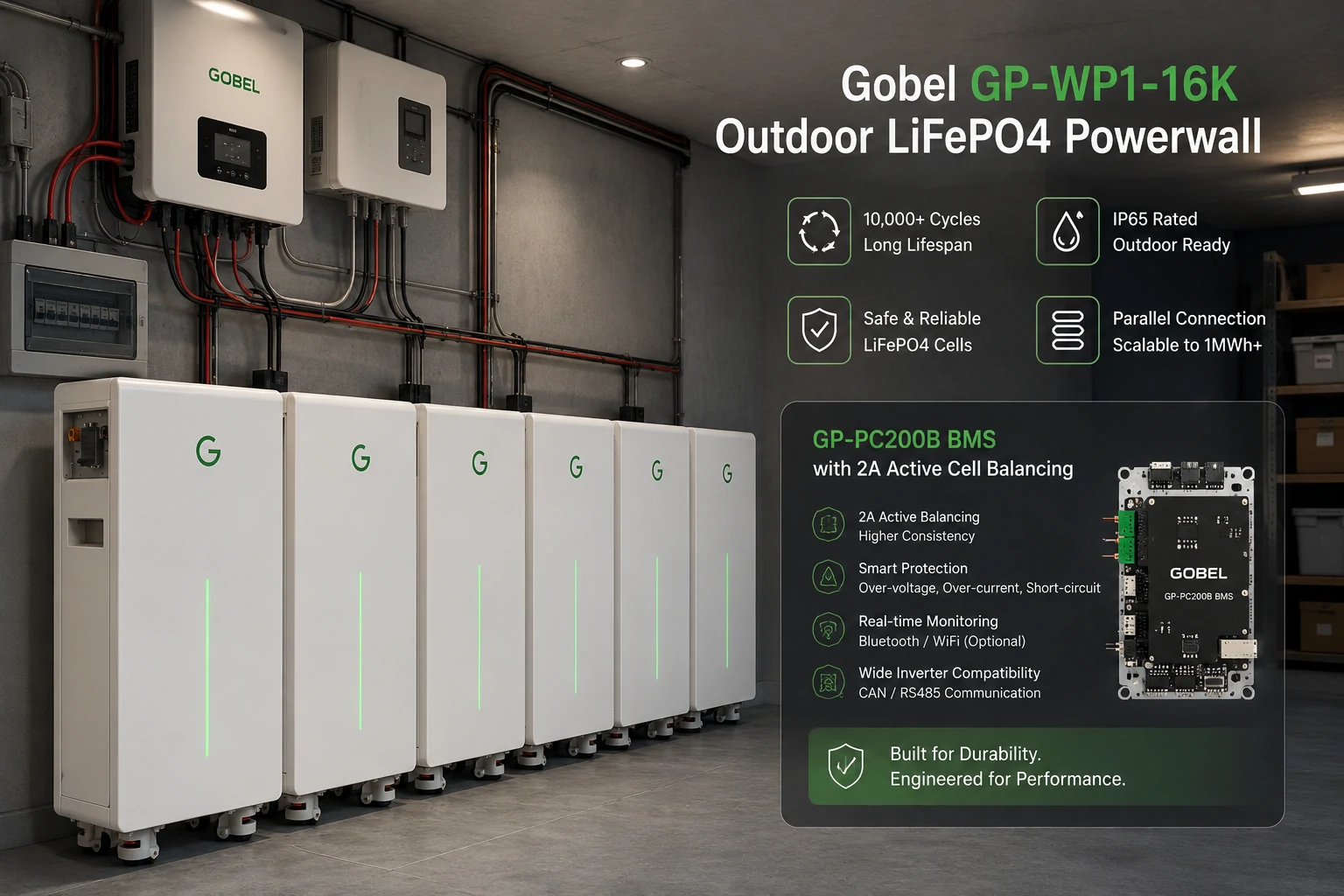

- Smart GP-PC200B BMS: Features built-in 2A active balancing and complete system protection.

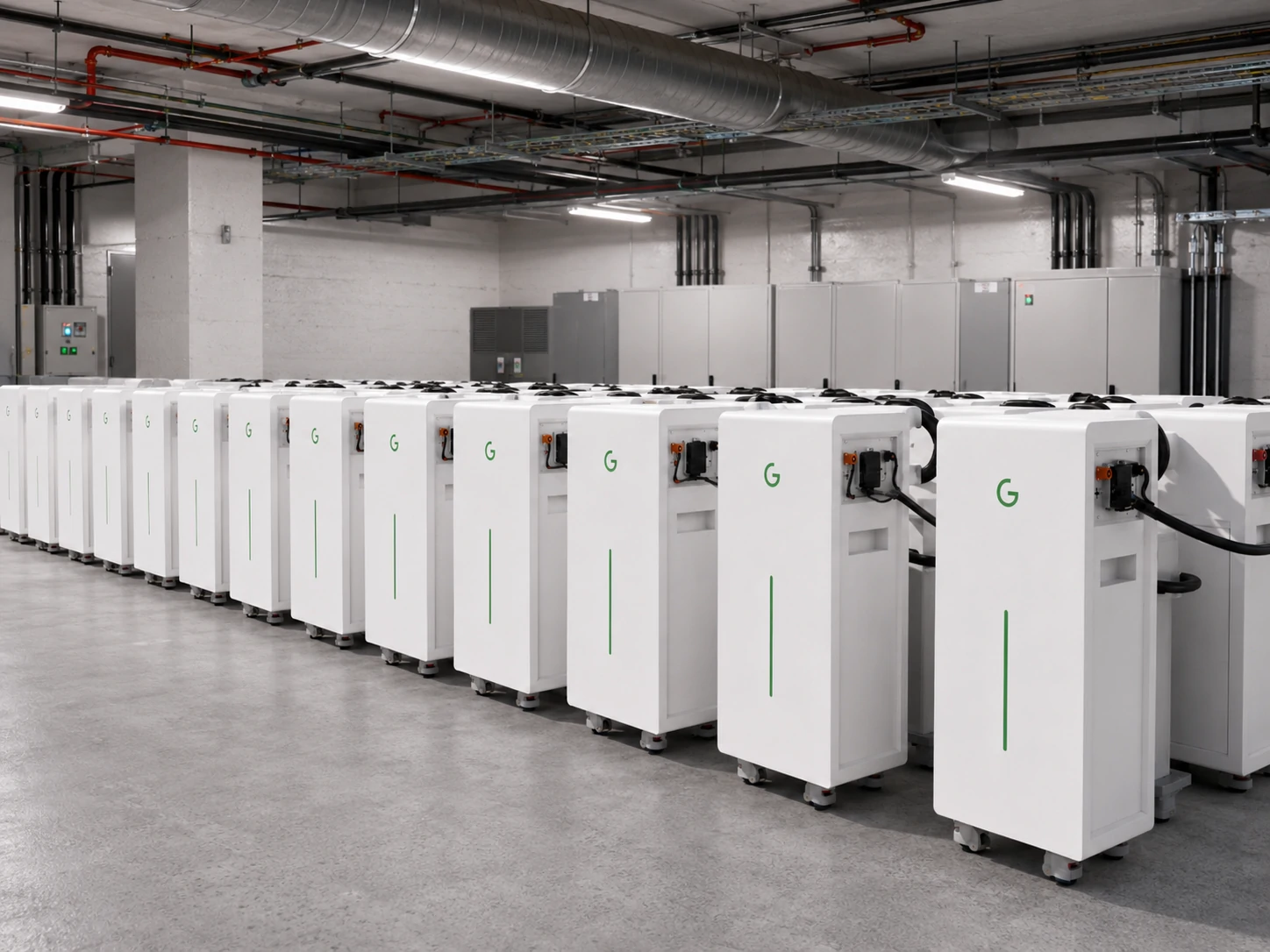

- Massive Scalability: Auto-addressing allows up to 63 batteries in parallel (1012kWh max).

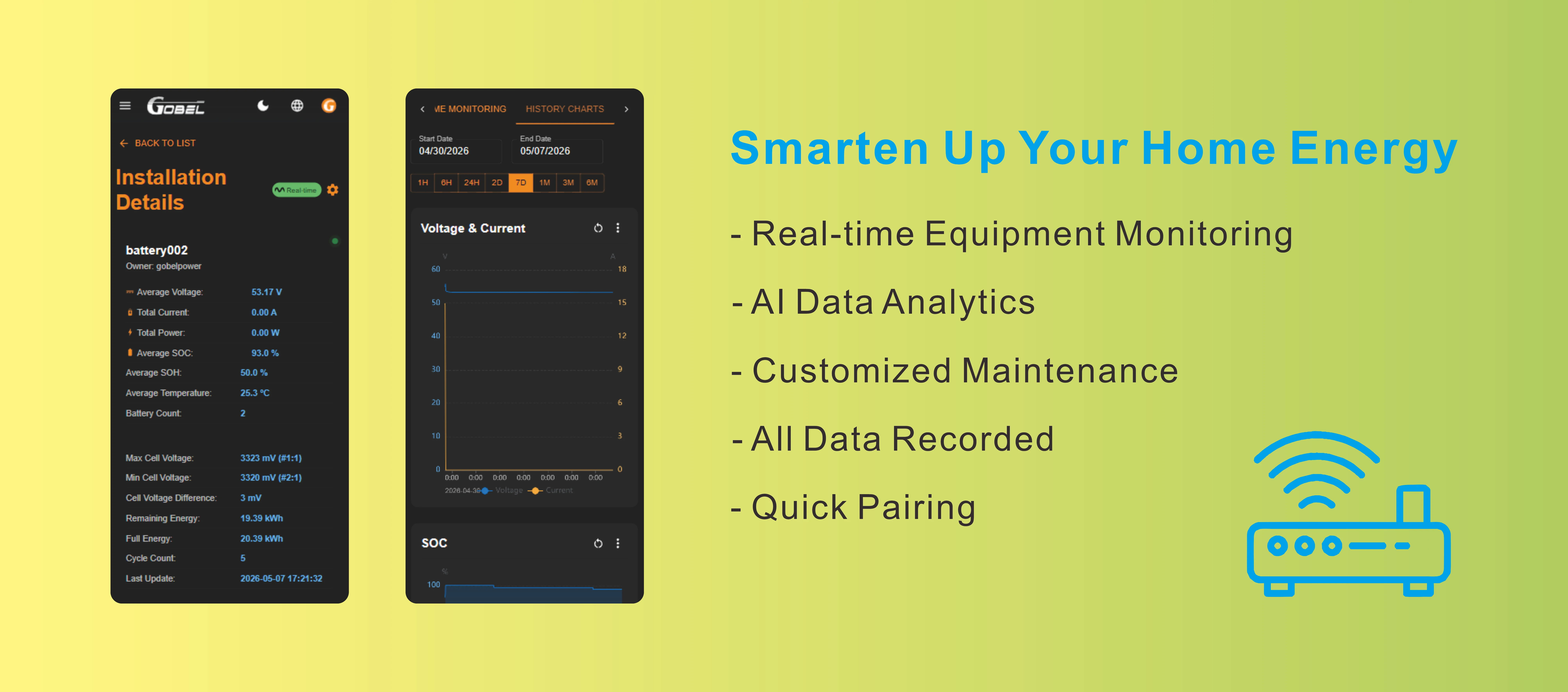

- WiFi Monitoring: Real-time tracking via the Gobel VRM app.
- Universal Compatibility: Plug-and-play with global mainstream inverters.
Customer's Setup
Check Victron VRM profiles here: View Configuration
Quality Standards
All Gobel Power batteries must undergo rigorous full cycling tests before being shipped. Some standards for battery with LSEV cells are:
Welcome to join us
Compatible Inverter List
CAN Port:
1. Deye (Pylon/Sunsynk/SolarEdge/CHNT Power/EG4/LiVolTek/Megarevo/SunGrow/Sol-Ark)
2. Victron
3. SMA
4. Studer
5. Growatt (Sacolar)
6. Schneider (SE)
7. GoodWe
8. Solis
9. Luxpower (EG4)
10. Sofar
11. REVO (SRD)
12. MUST
13. Senergy
RS485 Port:
1.Deye (Bentterson)
2.Growatt
3.Lithium
4.Luxpower
5.MSL
6.Pace
7.Phocos
8.Pylontech (Anern)
9.SE
10.Voltron (EA Sun Power, MPP Solar)
- Model:
- GP-WP1-16K
- Battery Type:
- Prismatic LiFePO4
- Nominal Voltage:
- 51.2V
- Nominal Capacity:
- 314Ah
- Total Energy:
- 16.08kWh
- Battery Cells:
- 16S1P 314Ah Cells
- Max Charge Current:
- 150A
- Max Discharge Current:
- 150A
- Charge Cut-off Protect Voltage:
- 58.4V
- Disharge Cut-off Protect Voltage:
- 44V

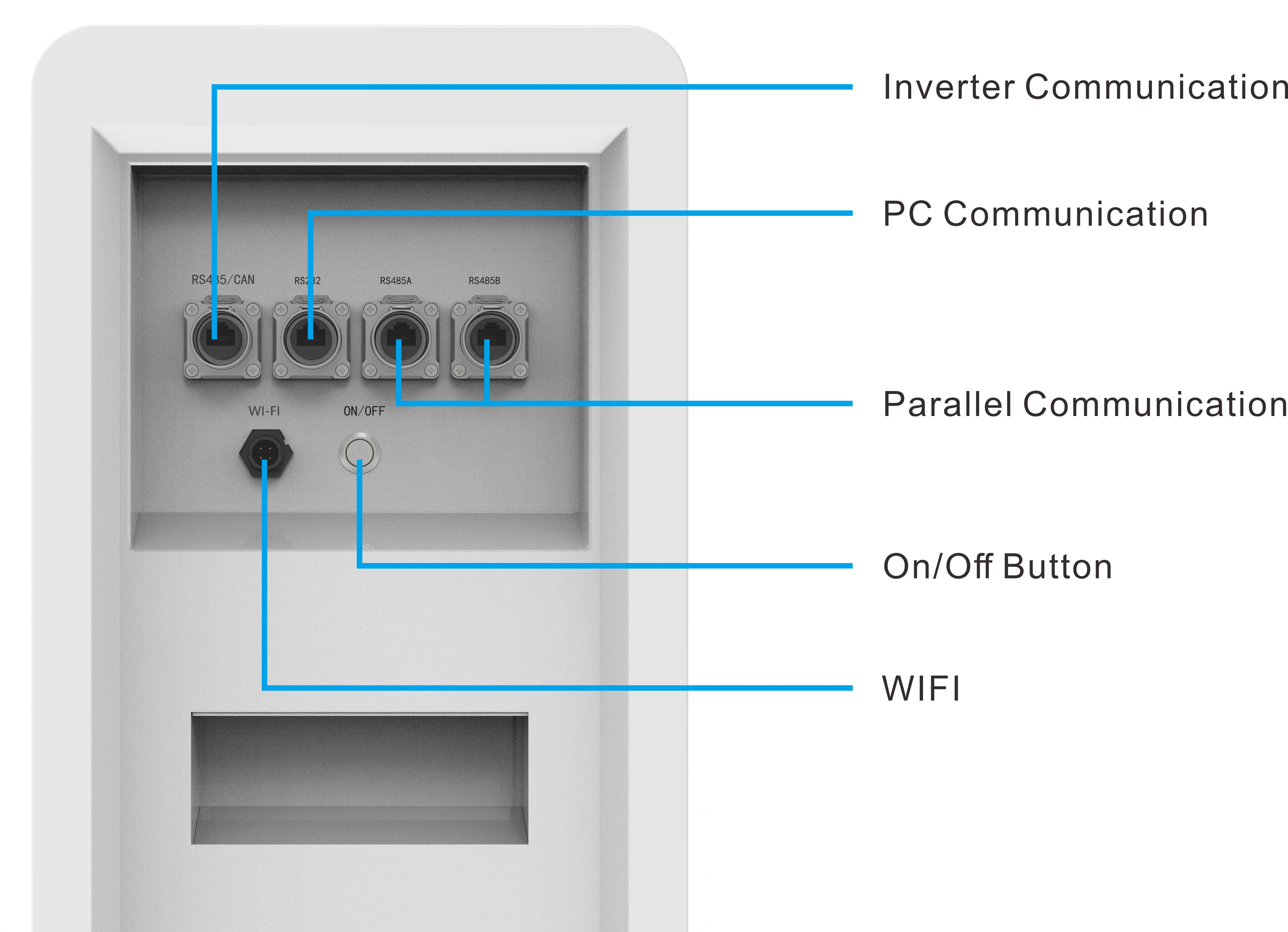

- Communication Port:
- RS485, RS232, CAN，WIFI
- Parallel Connection:
- Max 63 Units in Parallels
- Series Connection:
- No
- Cycle life:
- 10000 Times
- Size:
- 960 * 480 * 270
- Weight:
- 125kg
- Cooling:
- Natural cooling
- Environment:
- Indoor/Outdoor
- Mounting options:
- Sever Rack, Floor
- Discharge Temperature (℃):
- -20℃~+60℃
- Charge Temperature (℃):
- -20℃~+60℃
- Inverter Compatibility:
- Yes
- Active Balancer:
- Built-in 2A Active Balancer
- Maximum Elevation:
- 4000m
- Warranty:
- 5-10 Years
Visual Gallery & Diagrams
Product Dimensions

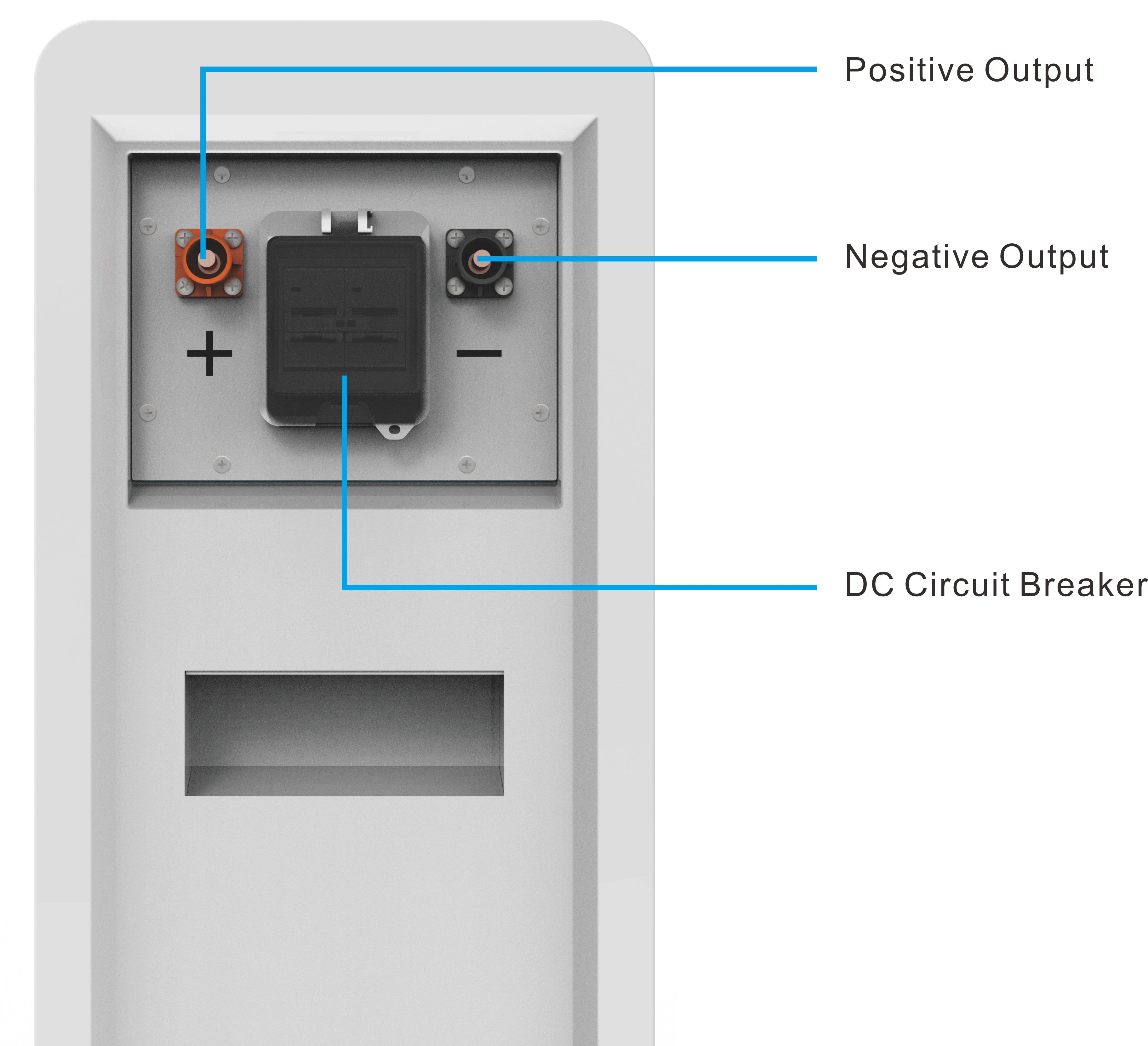

GP-WP1-PC314 Front Design
Typical Energy Storage System Connection
Searching for a high-performance outdoor energy storage solution?
The Gobel Power GP-WP1-PC314 is a 51.2V 16kWh Lithium Iron Phosphate (LiFePO4) low-voltage energy storage battery system, specifically designed for both on-grid and off-grid applications. This system utilizes 314Ah prismatic cells and features a built-in 200A Battery Management System (BMS) with 2A active balancing, ensuring exceptional structural and electrical safety. With its IP65 protection rating, the GP-WP1-PC314 is perfectly suited for both floor-standing and outdoor installations. Furthermore, it offers exceptional scalability, supporting the parallel connection of up to 63 modules to achieve a massive total capacity of up to 1013.04kWh. Widely compatible with leading global inverter brands—including Deye, GoodWe, Growatt, and Victron—this product is the ideal choice for meeting your high-capacity, all-weather energy storage requirements.
