Quality Improvement V2

Comprehensive Cell and Pack Test Data

Buy batteries as if you were in a physical store. You can check detailed battery test report at your convenience.

Samples:

• GPEV314H240921R1012
• GPEV314H250507R1015
• GPEV314H241114R1004
• GPEV314H250527R1025
• GPEV314H250610R1010

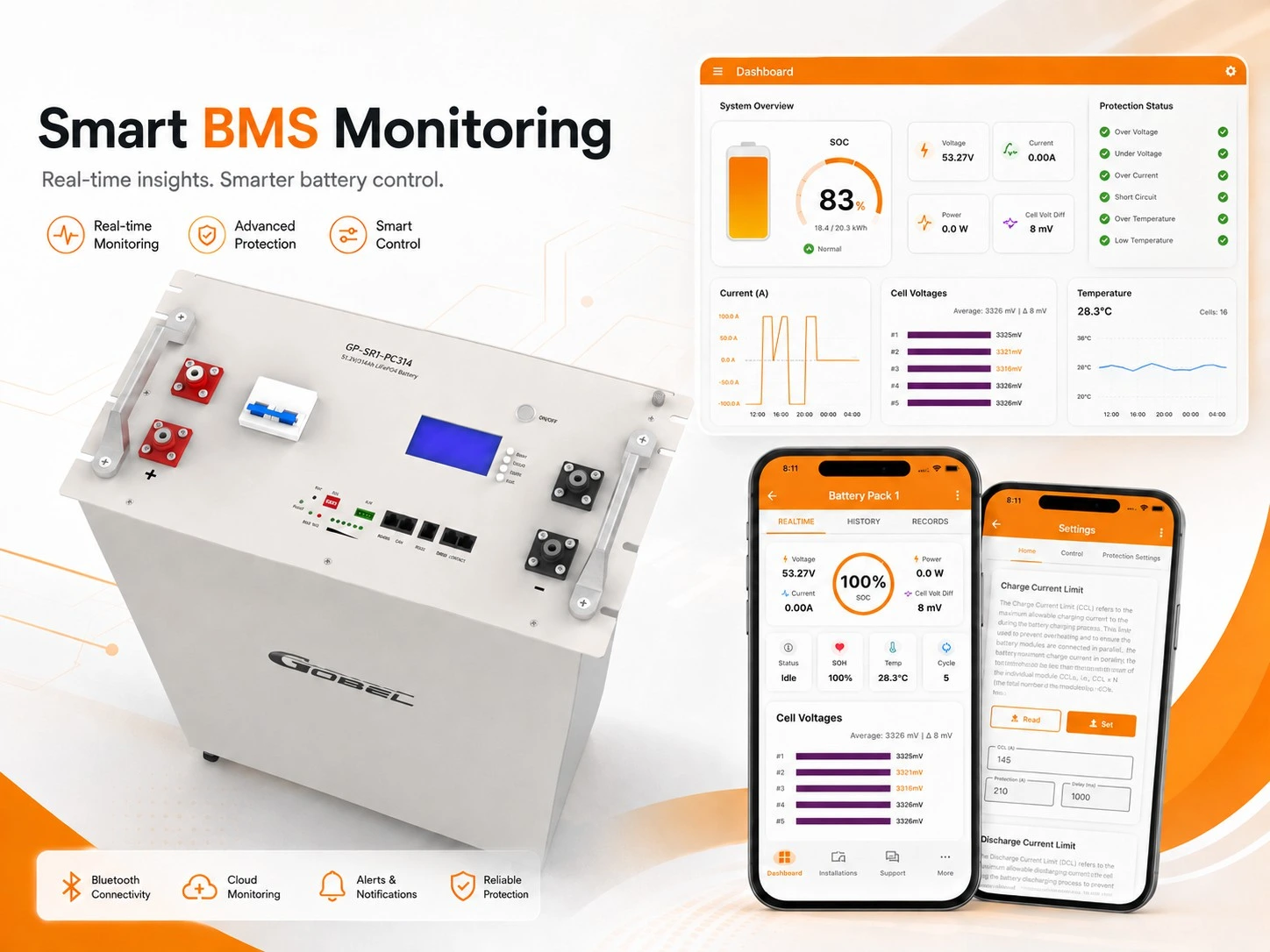

Home Assistant Addon

Use Home Assistant to monitor battery in real time, check Manual here.

General Information

• Cells Inside: Brand new 280Ah cells with 8,000 times cycles life
• 2 Mounting Method: Standard 6U server rack or on floor
• BMS: 200A professional ESS BMS compatible with most inverters
• Communication Ports: RS485, CAN, RS232
• Active Balance: Heltec (NEEY) 4A Bluetooth Active Balancer
• Compressed Cells: noval design able to impose 300kgf on cells
• Circut Breaker: 250A
• Wheels: Easily Move

Customer's Setup

Check Victron VRM profiles here: Check

Quality Standards

All Gobel Power batteries (GP-SR1) must undergo rigorous full cycling tests before being shipped. Some standards for battery with LSEV cells are:

• The maximum charging voltage when a single cell triggers overvoltage protection: ≥56V (The standard ensures that all battery cells possess commendable uniformity. The lower the voltage value, the poorer the consistency.)
• The minimum discharge voltage when a single cell triggers low voltage protection: ≤44V (The standard ensures that all battery cells possess commendable uniformity. The higher the voltage value, the poorer the consistency.)
• Capacity: ≥280Ah

Quality Classification

	GP-SR1-PC200 Standard	GP-SR1-PC200 Premium
Max Charge Voltage	56V+	57V+
Default Working Voltage	44V-55.2V	44V-55.2V
Full Capacity	280Ah-305Ah @ 25℃	300Ah-315Ah @ 25℃
Cell Grade	HSEV Hithium280/HSEV- EVE280	HSEV EVE280
Cell Consistency	★★★★	★★★★★
Pack Certification	CE	CE, IEC-62619
Warranty	5 Years	10 Years
		Buy
Europe Warehouse	Go To	Go To

The presented classification method above aims to assess the quality of different batteries, focusing on their maximum charge voltage. This parameter serves as an indicator of the cells' consistency within the battery. Specifically, a higher level of cells consistency corresponds to a higher maximum charge voltage.

Cell consistency refers to the uniformity in performance and characteristics among individual cells within a battery pack. In the context of a lithium iron phosphate (LiFePO4) battery, this means that each cell in the battery should ideally have the same capacity, internal resistance, self-discharge rate, and other key parameters.

The importance of cell consistency in a LiFePO4 battery lies in its impact on the overall performance and lifespan of the battery. When cells are consistent, the battery can deliver its power more efficiently, and it is less likely to experience premature aging or failure.

This is because when cells are inconsistent, the weaker cells can become overworked as they try to keep up with the stronger ones, leading to faster degradation. Furthermore, inconsistent cells can result in imbalanced charging and discharging, which can cause some cells to become overcharged or over-discharged, potentially leading to damage or even failure of the entire battery pack.

Therefore, maintaining cell consistency is a critical aspect of battery design and management, ensuring optimal performance, safety, and longevity of LiFePO4 batteries.

Compatible Inverter List

CAN Port:

• 1. Deye (Pylon/Sunsynk/SolarEdge/CHNT Power/EG4/LiVolTek/Megarevo/SunGrow/Sol-Ark)
• 2. Victron
• 3. SMA
• 4. Studer
• 5. Growatt (Sacolar)
• 6. Schneider (SE)
• 7. GoodWe
• 8. Solis
• 9. Luxpower (EG4)
• 10. Sofar
• 11. REVO (SRD)
• 12. MUST
• 13. Senergy

RS485 Port:

• 1. Deye (Bentterson)
• 2. Growatt
• 3. Lithium
• 4. Luxpower
• 5. MSL
• 6. Pace
• 7. Phocos
• 8. Pylontech (Anern)
• 9. SE
• 10. Voltron (EA Sun Power, MPP Solar)
