EV Grade A EVE 3.2V 280Ah Rechargeable LiFePO4 Battery Cell
Now we have warehouse in Poland, fast free shipping to most Europe address.
Check products in Poland warehouse here: LiFePO4 Cells in European Warehouse
In our system, Grade HSEV>LSEV>ESS.
Grade HSEV are the best quality cells, which are sold in EVE official shop. HSEV cells have strict matching standard, so price is pretty high.
EVE sell ESS cells to distributor such as Gobel Power. These cells are the second best quality cells you can get in the market.
Gobel Power do some tests and group better matching cells toghter, these are LSEV cells. LSEV cells have better matching standards than ESS cells.
If not all, 99% distributors have only ESS grade cells, no matter how they call these cells, Grade A+ or Grade A, they are ESS cells.
To discriminate HSEV cells from ESS cells, EVE starts to print B Mark on ESS cells, these cells are same as Intact QR cells, The only difference is QR.
Why EVE do it? In previous months, some distributors claim their cells are HSEV cells, but actually they are ESS cells. At that moment, Both HSEV and ESS cells have Intact QR, the only difference is HSEV cells have official testing report (Excel or Paper format), but testing report is easy to counterfeit, so EVE starts to print B Mark on all ESS cells.
|Grade ESS||Grade LSEV||Grade HSEV|
|Usage||Energy Storage||Low Speed Electric Vehicle||High Speed Electric Vehicle|
|Official Test Report||No||No||Yes|
|QR||B Mark||B Mark||Original QR|
This is EVE 3.2V 280Ah LiFePO4 battery cell, model number is LF280K.

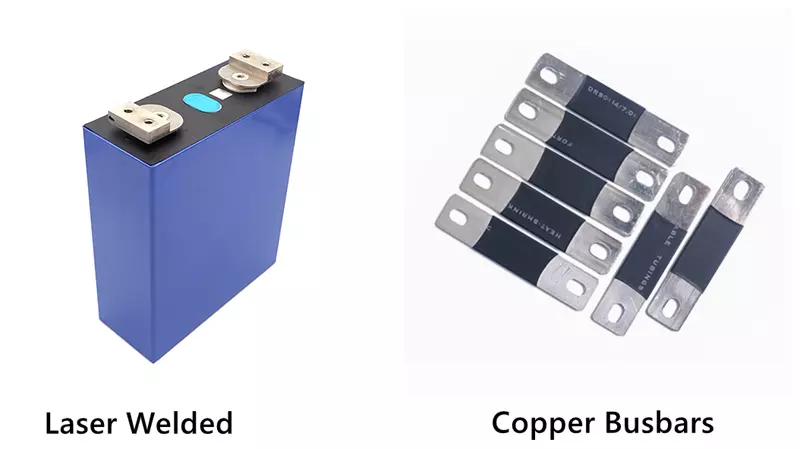

The price come with Bus bars and Bolts. one cell will come with one set bus bar and bolt (1 bar 2 bolts), If need more please contact us online.
All HSEV cells have detailed data in EXCEL file.
Normal shipping method is sea freight, railway and air freight. Sea freight and railway will take about 1-2 months, air freight can be less than 15 days. All shipping method is door to door delivery.
- Model No.:
- Typical Voltage:
- Typical Capacity:
- AC Impedance Resistance:
- Life Cycle:
- Standard Charge/Discharge Current:
- Standard Charge Cut-off Voltage:
- Standard Discharge Cut-off Voltage:
- Continuous Charge/Discharge Current:
- Pulse Charge/Discharge Current (60s):
- Recommended SOC Window:
- Charging Working Temperature:
- Discharging Working Temperature:
- Self Discharging Rate:
- Short Term Storage Temperature (< 1 Month):
- Long Term Storage Temperature (< 1 Year):
- Storage Moisture:
- Cell Dimension:
- Cell Weight:
- UL, MSDS, UN38.3, CE
Lifepo4 Zellen, 3,2V, LiFePO EVE 280ah, 6000 Zyklen
Brand new EVE 3.2V 280Ah Cell with original QR.
EVE 280Ah LiFePO4 Battery Cell CAD Drawing with Dimensions and Main Parameters
EVE 280Ah LiFePO4 battery cell is 3.2V LFP battery, widely used in home solar energy storage system, and it has been top choice for ESS DIY. This 280Ah lithium battery cell has 6000 max cycle life, long service life makes it suitable for diy powerwall.
During transportion, cells may have following flaws due to friction:
Traces of dust and scratches.
