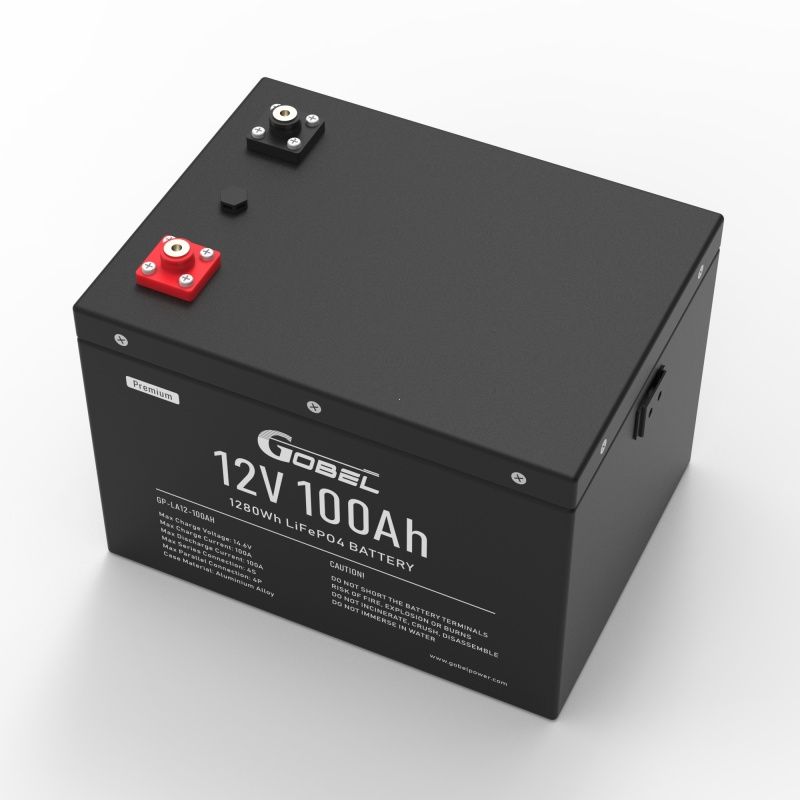

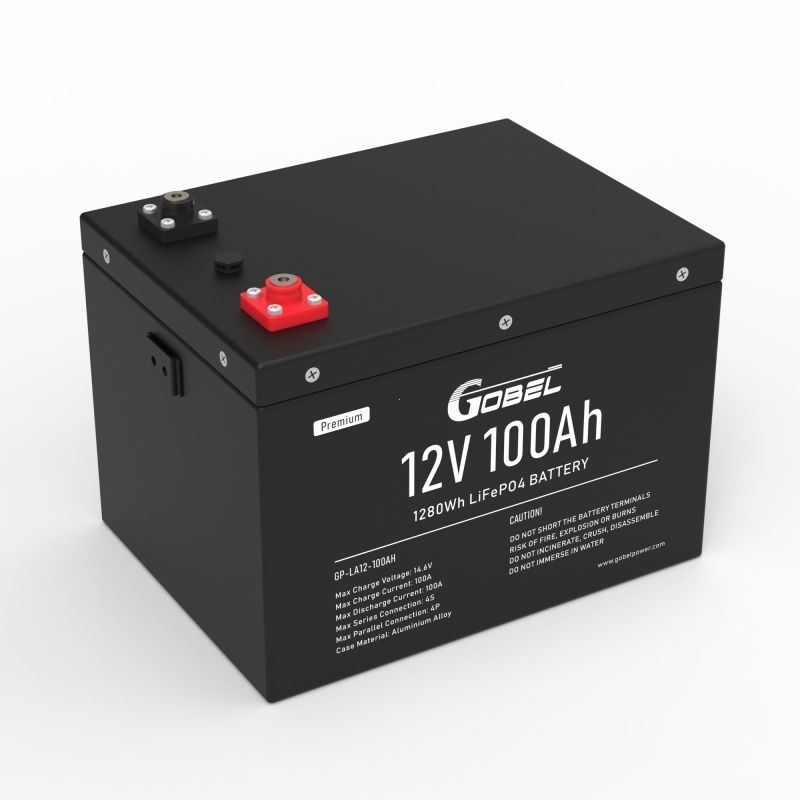

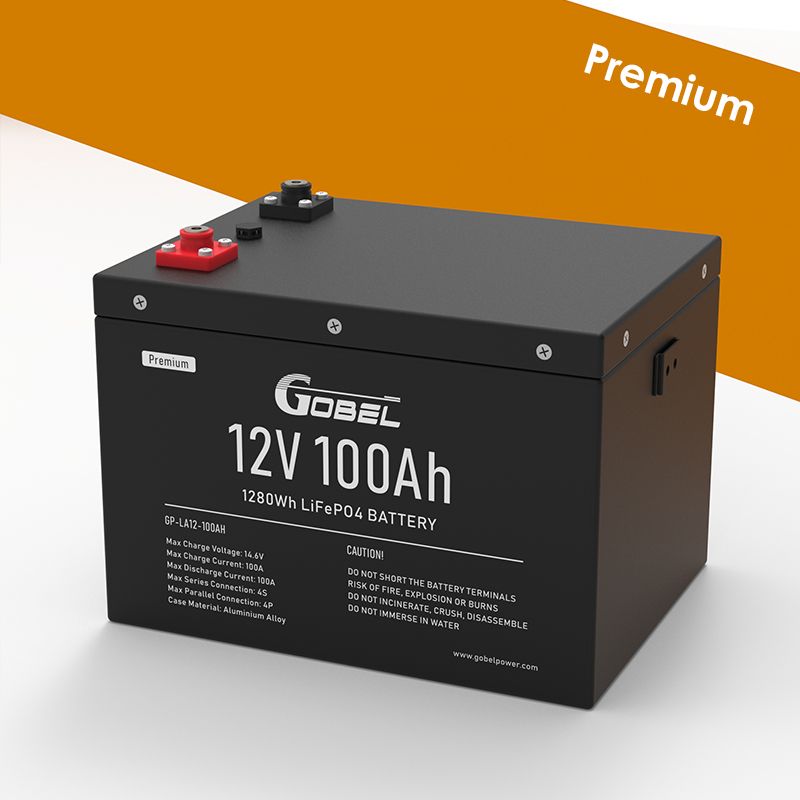

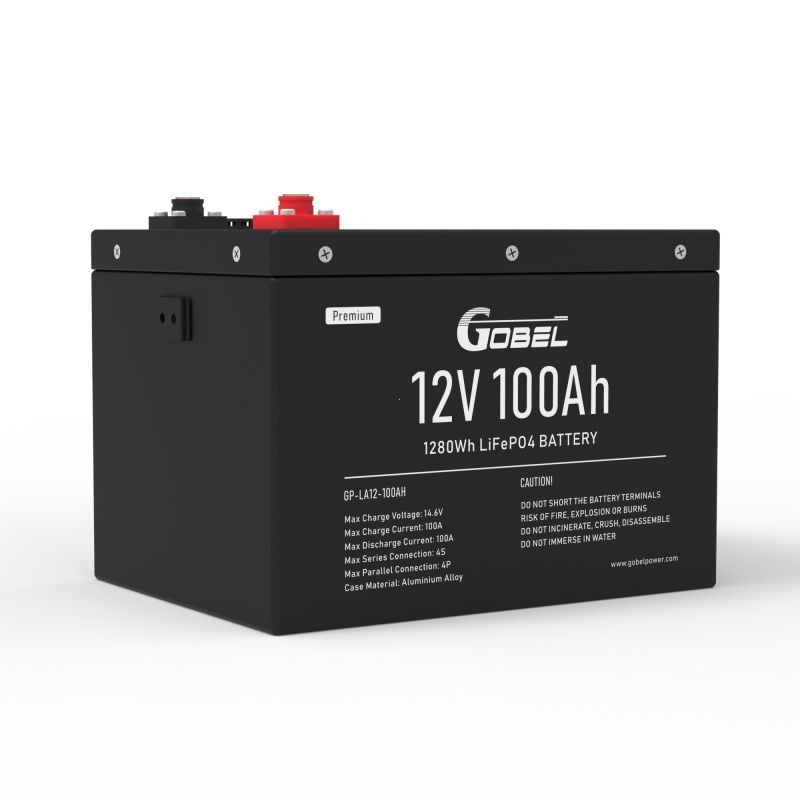

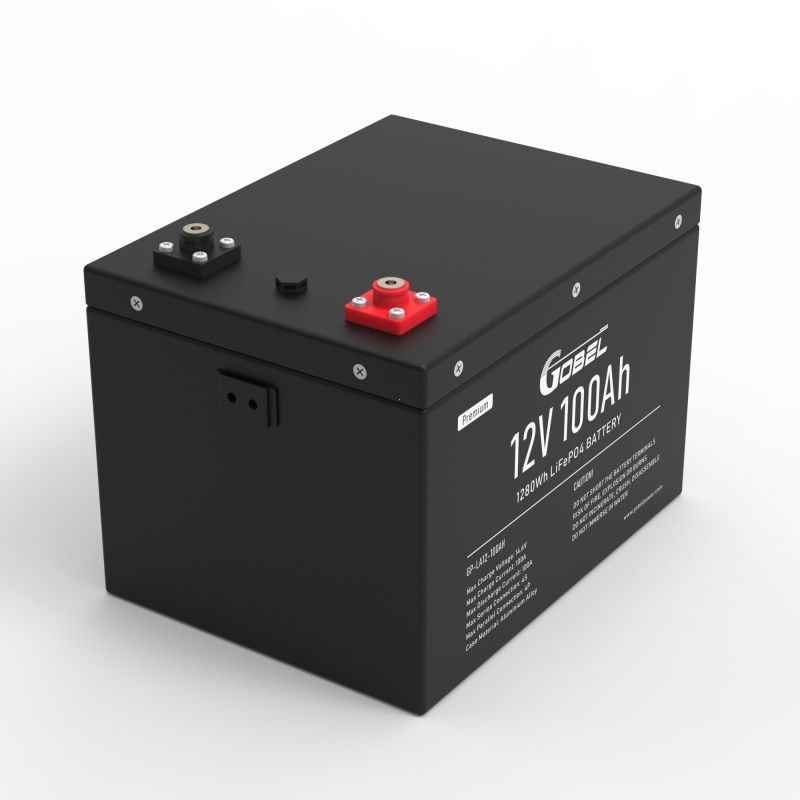

12V 100Ah LiFePO4 Battery GP-LA12-100AH Premium Deep Cycle Battery 1.2kWh Energy

Aluminum Alloy Case, 100A Output, Series Connection to 48V

Model: GP-LA12-100AH-Premium-EV100

US$ 0.10~0.30/Wh
  • Wholesale, OEM Service
  • Private Label Service
  • Physical and Electrical Design Service
  • Complete Solutions for Packing Factory
  • Full Documents for Export & Import
    • Grade:

    In Stock , Ship to US
    Like
    147

    Ships to US and Other Countries.

    Buy Together

    12V 100Ah LiFePO4 Battery GP-LA12-100AH Premium Deep Cycle Battery 1.2kWh Energy

    Packing Factory Solutions Contact Us Cooperation with Factories Worldwide

    Compact Size

    12V 280Ah LiFePO4 Battery, More Capacity, Less Space

    GP-LA12-280Ah 12V 280Ah LiFePO4 battery is only similar size as other 12V 100Ah LiFePO4 battery, but 2.8X more energy inside.

    Scalable

    12V 280Ah LiFePO4 Battery, scalable, up to 51.2V 280Ah

    GP-LA12-280Ah 12V 280Ah LiFePO4 battery supports max 4 in series, and 4 in parallel to make 51.2V 1120Ah system, total energy 57kWh.

    Modular Design

    12V 280Ah LiFePO4 Battery, modular design, safer and more reliable

    Smart BMS with Bluetooth

    gobel power 12V 280Ah LiFePO4 Battery, Smart BMS with Bluetooth

    Low Temperature Protection

    gobel power 12V 280Ah LiFePO4 Battery, low temperature protection

    Deep Cycle Applications

    gobel power 12V 280Ah LiFePO4 Battery, Deep Cycle Applications

    gobel power 12V 280Ah LiFePO4 Battery, Deep Cycle Applications

    Specifications (Verified)
    Gobel Power technician has verified the accuracy of following technical parameters according to manufacturer's data sheet. Gobel Power gurrantees the product is authentic.

    Model:
    GP-LA12-100AH Premium
    Battery Type:
    Prismatic LiFePO4
    Nominal Voltage:
    12.8V
    Nominal Capacity:
    100Ah
    Total Energy:
    1280Wh
    Battery Cells:
    4S1P 100Ah Cells
    Max Charge Current:
    100A
    Max Discharge Current:
    100A
    Charge Cut-off Voltage:
    13.8V
    Disharge Cut-off Voltage:
    11V
    Communication:
    Bluetooth
    Parallel Connection:
    Max 4 Units in Parallels
    Series Connection:
    Max 4 Units in Series
    Cycle life:
    8000 Times
    Size:
    260L*192W*195H
    Weight:
    11kg
    Discharge Temperature (℃):
    -20℃~+55℃
    Charge Temperature (℃):
    0℃~+55℃
    Case Materials:
    Aluminum Alloy
    Warranty:
    5 Years
    Shipping & Payment

    Sea Freight shipping for all batteries Free Tax, we have paid tax for you Spareparts can be shipped by UPS/DHL
    Paypal Credit Card Bank Transfer
    Related Downloads

    BMS Datasheet
    Spec Sheet
    Wholesale or OEM? Chat with Our Experts in WhatApp
    Model Summary

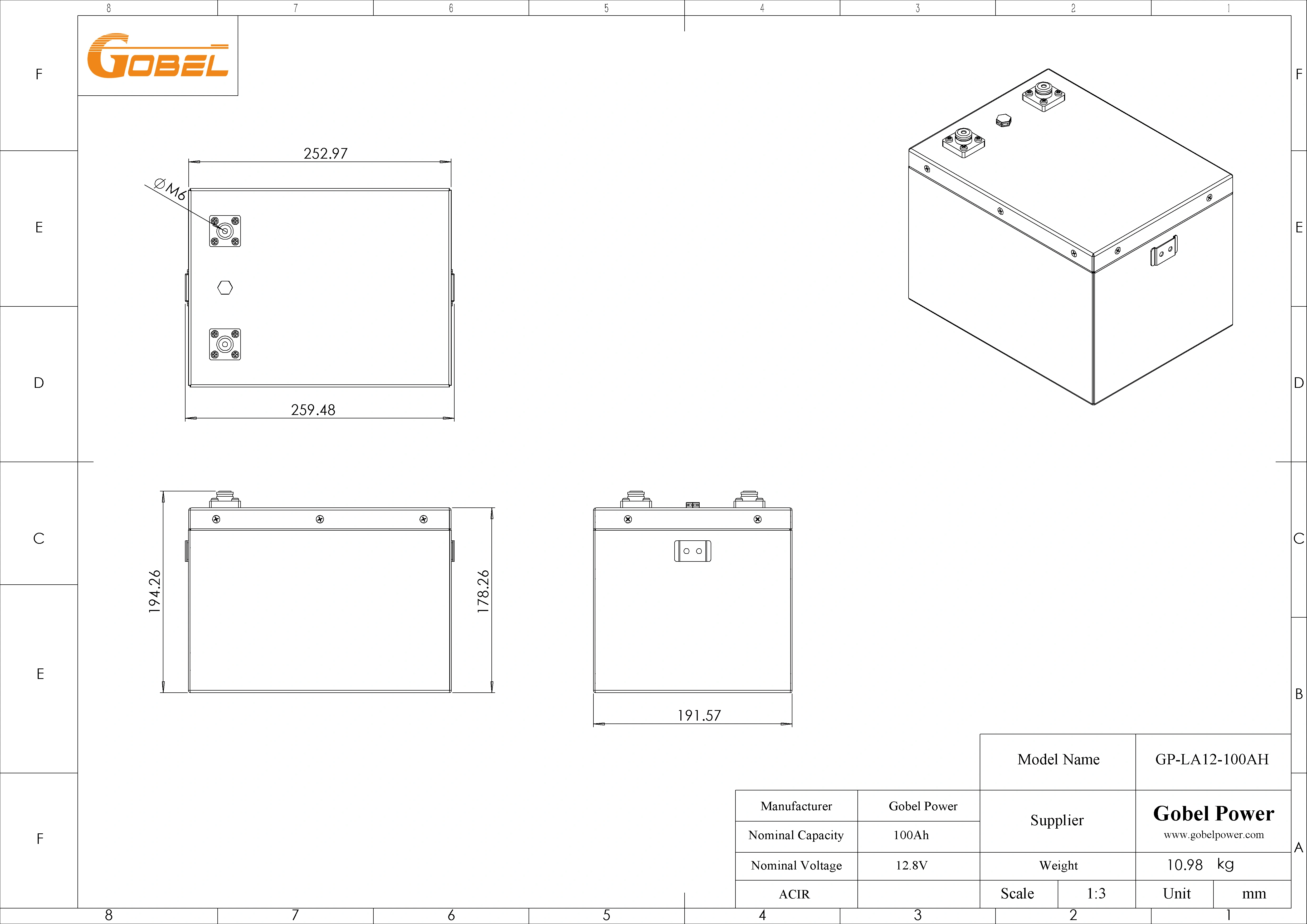

    12V 100Ah LiFePO4 battery dimension
