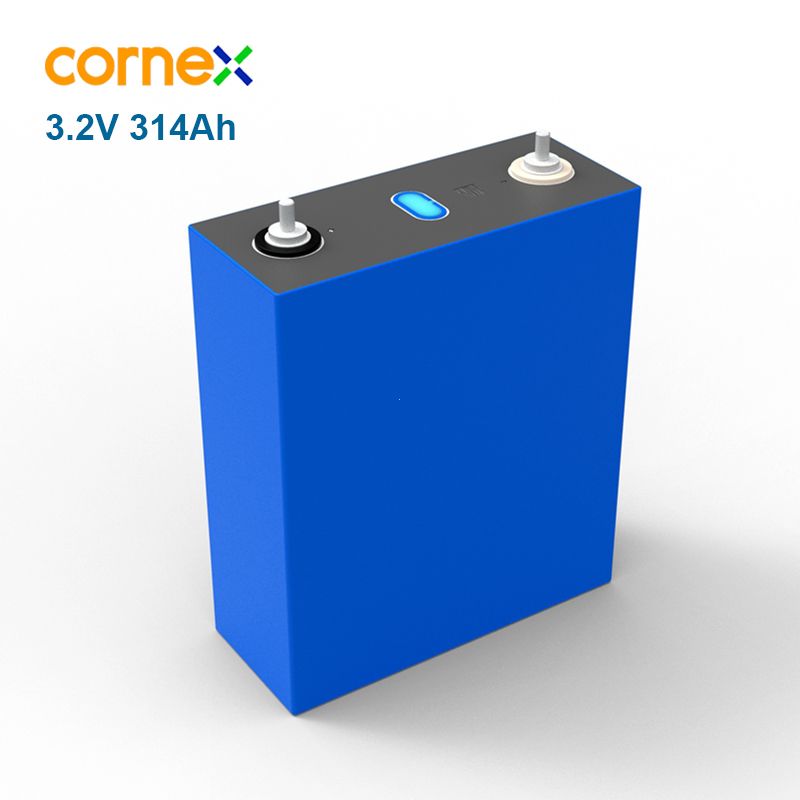

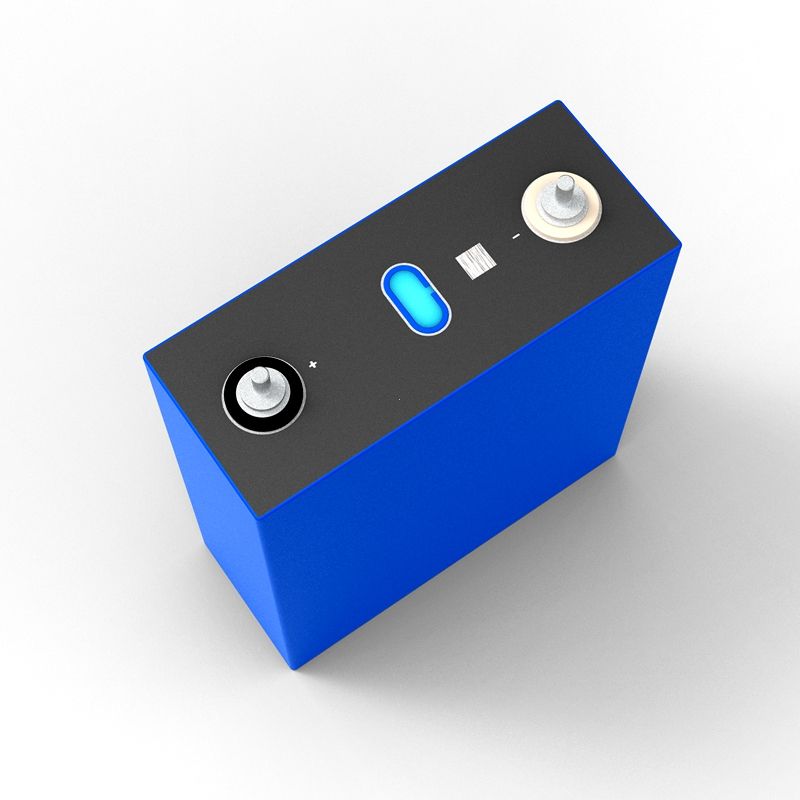

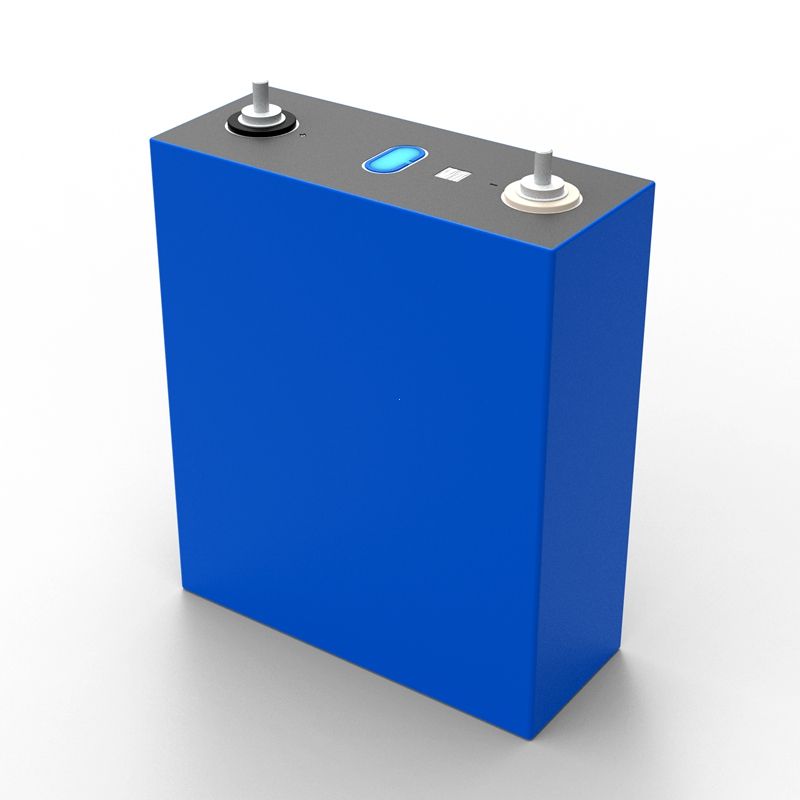

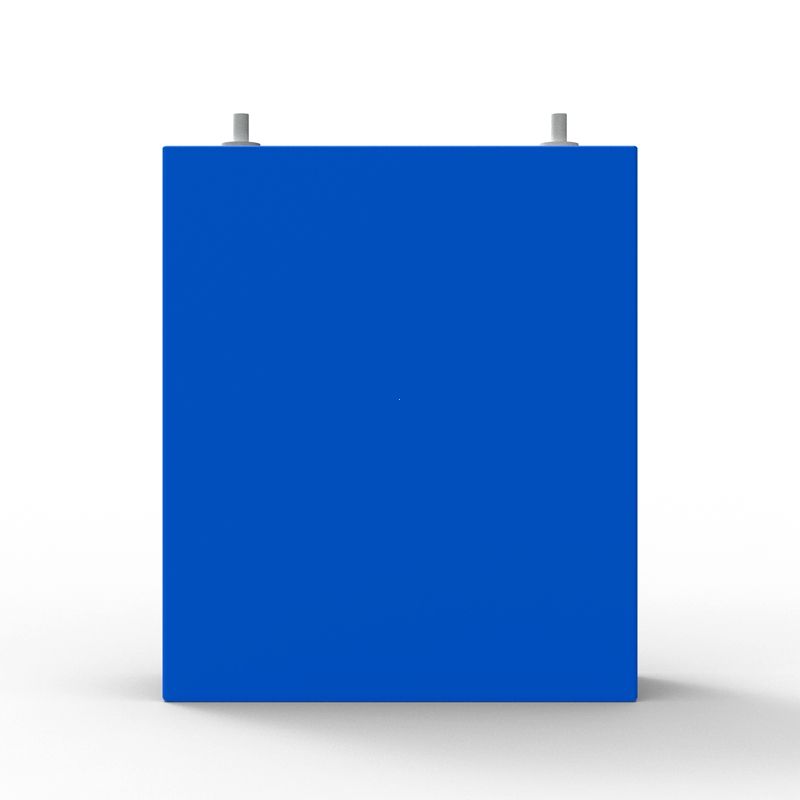

Cornex Grade A 3.2V 314Ah Rechargeable LiFePO4 Battery Cell

HSEV- 314Ah LiFePO4 Zellen 314ah, Matched LiFePO4 Battery Cell

Model: Cornex-314AH-HSEV-Minus

Delivery Time:
From China Warehouse: 50-60 days.
Warranty:
30 days free return to local warehouse.

10 Customer Reviews
Traditional: US$200.00
US$ 49.00
Ship from China
    :
    Busbar Type:
    Expoxy Sheet:
    Production Date:
    Grade:
    Matched IR:
    Matched Voltage:
    Matched Capacity:
Quantity:
The quantity must be a multiple of 4.
Sub Total: US$

In Stock, Ship to US
Like
290
Qty Discounts Off Price
4-99 US$49.00
100+ US$48.53
  • Wholesale, OEM Service
  • Private Label Service
  • Physical and Electrical Design Service
  • Complete Solutions for Packing Factory
  • Full Documents for Export & Import
  • Ships to US and Other Countries.

    Buy Together

    Cornex Grade A 3.2V 314Ah Rechargeable LiFePO4 Battery Cell

    Packing Factory Solutions Contact Us Cooperation with Factories Worldwide
    Specifications (Verified)
    Gobel Power technician has verified the accuracy of following technical parameters according to manufacturer's data sheet. Gobel Power gurrantees the product is authentic.

    Manufacturer:
    Cornex
    Model No.:
    Cornex-314AH
    Typical Voltage:
    3.2V
    Typical Capacity:
    314Ah
    AC Impedance Resistance:
    ≤0.17mΩ
    Life Cycle:
    8000
    Standard Charge/Discharge Current:
    1C/1C
    Standard Charge Cut-off Voltage:
    3.65V
    Standard Discharge Cut-off Voltage:
    2.5V
    Continuous Charge/Discharge Current:
    1C/1C
    Pulse Charge/Discharge Current (60s):
    2C/2C
    Recommended SOC Window:
    10%~90%
    Charging Working Temperature:
    0℃~55℃
    Discharging Working Temperature:
    -30℃~55℃
    Self Discharging Rate:
    <3%
    Short Term Storage Temperature (< 1 Month):
    -20℃~45℃
    Long Term Storage Temperature (< 1 Year):
    0℃~35℃
    Storage Moisture:
    <95%
    Cell Dimension:
    207.2*71.7*173.7mm
    Cell Weight:
    5650g
    Certification:
    MSDS, UN38.3, CE
    Warranty:
    5 Years

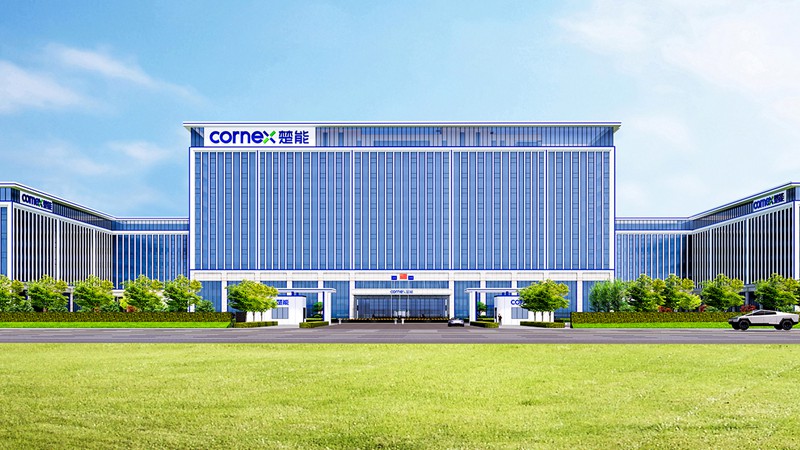

    Manufacturer Introduction

    As a new energy innovative high-tech enterprise, CORNEX NEW ENERGY CO., LTD. (“CORNEX”) focuses on the R&D, manufacturing, sales and services of energy storage batteries, EV batteries and energy management system, and is committed to providing the world-class solutions, products and services for new energy applications worldwide. CORNEX promotes the innovation of materials, structures, manufacturing technologies and business modes in commercial application fields such as electrochemical energy storage, electric vehicles and commercial vehicles. CORNEX is achieving the strategic goal of “a generation in production, a generation at launch, a generation in research”, establishing the advantages of industry leadership, large scale and high efficiency, and the capability of covering the whole industrial chain. We strive to contribute to the rapid development of the global new energy industry by providing users with full-scene and multi-dimensional lithium-ion battery products, energy management systems and other solutions. Adopting an operation philosophy of “Technological Innovation and Green Energy”, CORNEX targets at intelligent manufacturing fields, and explores the upstream or downstream industry chains of the lithium-ion battery industry. Our businesses are oriented to global ESS and EV battery markets, to boost the achievement of China’s “carbon peaking and neutrality” goals and the transition to the green and low-carbon development.
    Shipping & Payment

    Sea Freight shipping for all batteries Free Tax, we have paid tax for you Spareparts can be shipped by UPS/DHL
    Paypal Credit Card Bank Transfer
    Related Downloads

    Cornex 314Ah Datasheet
    Wholesale or OEM? Chat with Our Experts in WhatApp
    Model Summary

    The Cornex 314AH battery boasts a typical voltage of 3.2V and a remarkable typical capacity of 314Ah. With an AC impedance resistance of ≤0.18mΩ, this battery ensures efficient power delivery and minimal energy loss. Its impressive life cycle spans 8000 cycles, showcasing its resilience and durability in demanding usage scenarios. The standard charge/discharge current stands at 1P/1P, while the standard charge cut-off voltage is set at 3.65V, ensuring safe and optimal charging operations. Additionally, the standard discharge cut-off voltage is 2.5V, maintaining stable and reliable performance throughout its operation.

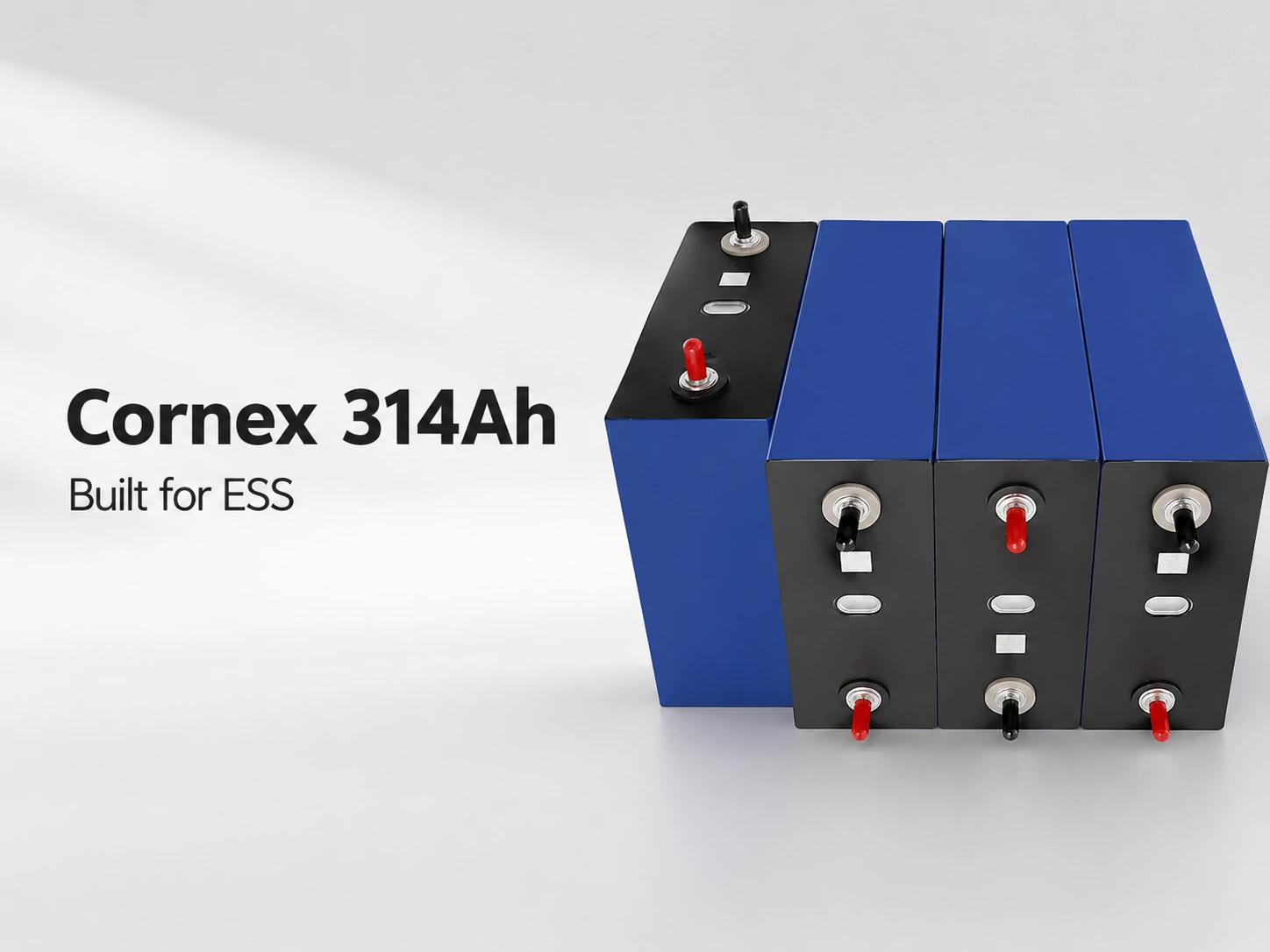

    Brand new  Cornex 3.2V 314Ah Cell with original QR. HSEV-

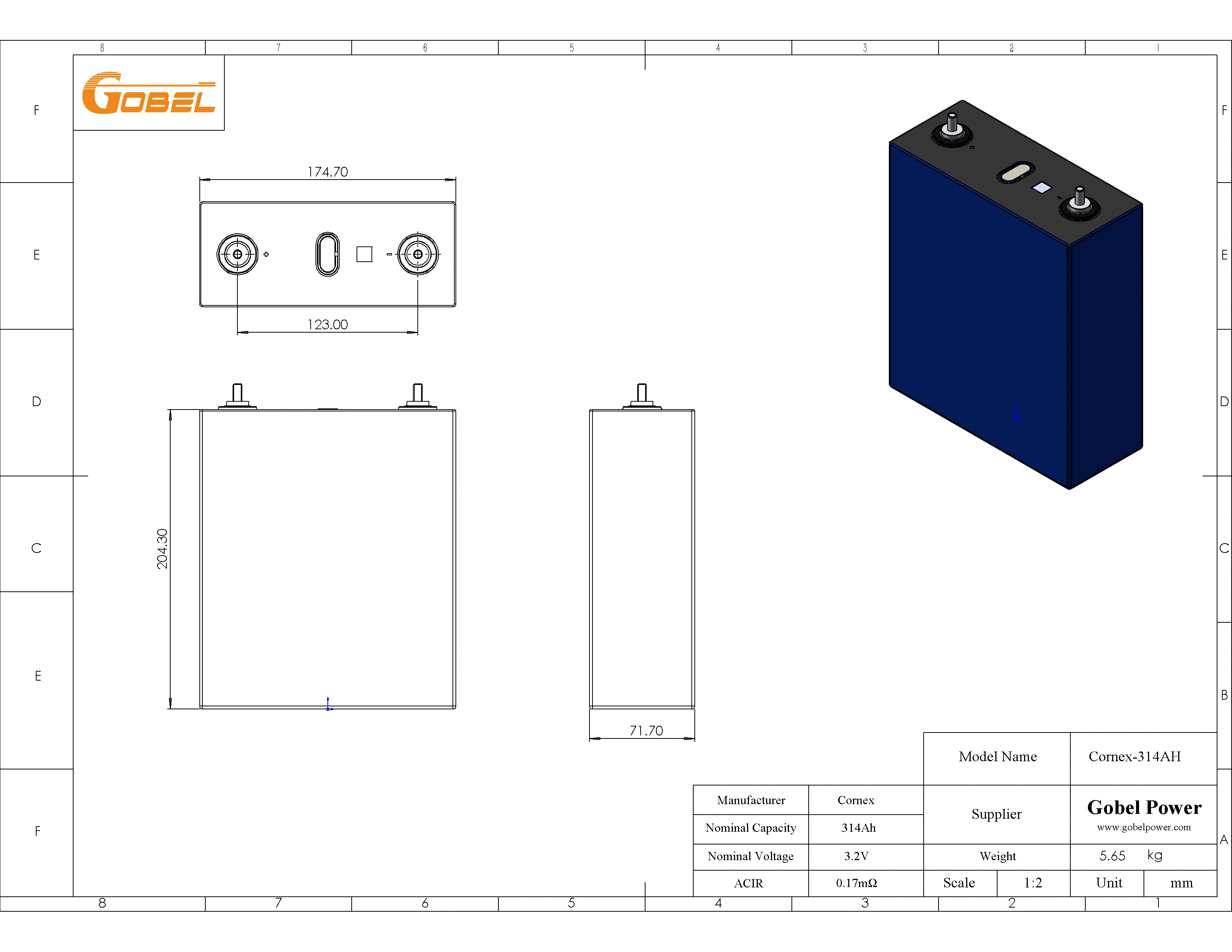

    Cornex 314AH LiFePo4 Cell dimension

    wholesale lifepo4 280ah battery cell

    wholesale lifepo4 280ah battery cell

    wholesale lifepo4 280ah battery cell

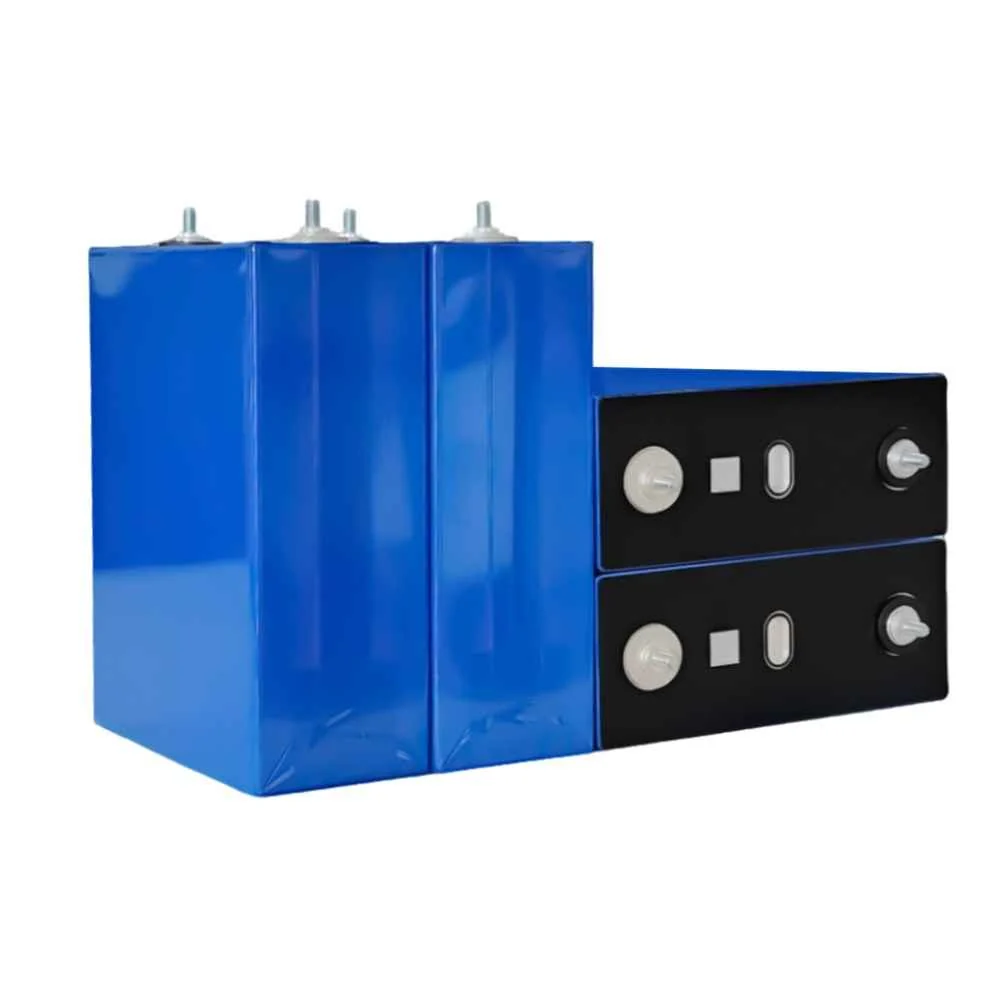

    Cornex Grade A 3.2V 314Ah LiFePO4 Battery Cell

    The Cornex 314Ah LiFePO4 battery cell is a high-quality, Grade A rechargeable lithium iron phosphate cell, designed for exceptional durability, energy efficiency, and high current output. With a nominal voltage of 3.2V and a typical capacity of 314Ah, this prismatic LiFePO4 battery cell is ideal for use in solar energy storage systems, electric vehicles (EVs), off-grid backup power, industrial batteries, and marine battery banks.

    Built for performance and longevity, the Cornex-314AH supports a long cycle life of 8000 cycles, thanks to its advanced LiFePO4 chemistry and low internal resistance of ≤0.17mΩ. It features 1C continuous charge/discharge rates and up to 2C pulse current for 60 seconds, ensuring it can handle both high energy demand and fast charging requirements.

    This 3.2V LiFePO4 cell is engineered to operate reliably across extreme environments, with a charging temperature range of 0℃ to 55℃ and discharging capability from -30℃ to 55℃. It maintains excellent shelf life with a self-discharge rate under 3%, and supports a recommended state of charge (SOC) window between 10% and 90% to maximize lifespan and performance.

    The compact and lightweight design (207.2 × 71.7 × 173.7 mm, 5.65 kg) allows for efficient pack integration in custom battery modules or high-capacity energy storage banks. Fully certified to MSDS, UN38.3, and CE standards, this LiFePO4 rechargeable cell meets international safety and transport requirements.

    Whether you’re assembling a solar battery storage bank, a high-discharge EV battery pack, or an off-grid energy storage system, the Cornex 3.2V 314Ah LiFePO4 battery cell delivers premium-grade power, safety, and efficiency trusted by professionals around the world.
