Specifications (Verified)
Gobel Power technician has verified the accuracy of following technical parameters according to manufacturer's data sheet. Gobel Power gurrantees the product is authentic.
- Manufacturer:
- REPT
- Model No.:
- REPT135
- Typical Voltage:
- 3.2V
- Typical Capacity:
- 135Ah
- AC Impedance Resistance:
- 0.5mΩ
- Life Cycle:
- 2500
- Standard Charge/Discharge Current:
- 0.33C/0.33C
- Standard Charge Cut-off Voltage:
- 3.65V
- Standard Discharge Cut-off Voltage:
- 2.5V
- Continuous Charge/Discharge Current:
- 1C/1C
- Pulse Discharge Current:
- 2C (30s) / 3C (60s)
- Recommended SOC Window:
- 10%~90%
- Charging Working Temperature:
- 0℃~55℃
- Discharging Working Temperature:
- -20℃~55℃
- Self Discharging Rate:
- Short Term Storage Temperature (< 1 Month):
- -40℃~45℃
- Long Term Storage Temperature (< Year):
- -20℃~35℃
- Storage Moisture:
- <95%
- Cell Dimension (L*W*H):
- 149.3*79.22*105.31mm
- Cell Weight:
- 2.63kg
- Certification:
- UL, MSDS, UN38.3, CE
Manufacturer Introduction
Founded in 2017, REPT (RuiPu) Battero Energy Co., Ltd. is the first company invested by Tsingshan Industry to combine its own rich mineral resources. REPT Battero Energy is mainly engaged in the research and development, production and sales of power/energy storage lithium-ion battery cell to system application, focusing on providing quality solutions for new energy vehicle power and intelligent power storage. REPT Battero focuses on VDA and MEB standard size prismatic NCM and LFP batteries. Product applications cover passenger cars, commercial vehicles (city buses, logistics vehicles, trucks, etc.), special purpose vehicles, industrial equipment, construction machinery and equipment, shipping vessels and other propulsion systems, as well as energy storage with wind and solar farms, grid level power storage, backup power system and other energy storage fields. Through the coordinated development of the industry chain, we will break through the two bottlenecks of product consistency and high cost to create the most cost-effective propulsion/energy storage battery manufacturer in the industry. Boosting the development of the global battery energy industry.
Shipping & Payment
Sea Freight shipping for all batteries
Free Tax, we have paid tax for you
Spareparts can be shipped by UPS/DHL
Paypal
Credit Card
Bank Transfer
Related Downloads
Wholesale or OEM?
Chat with Our Experts in WhatApp
Model Summary

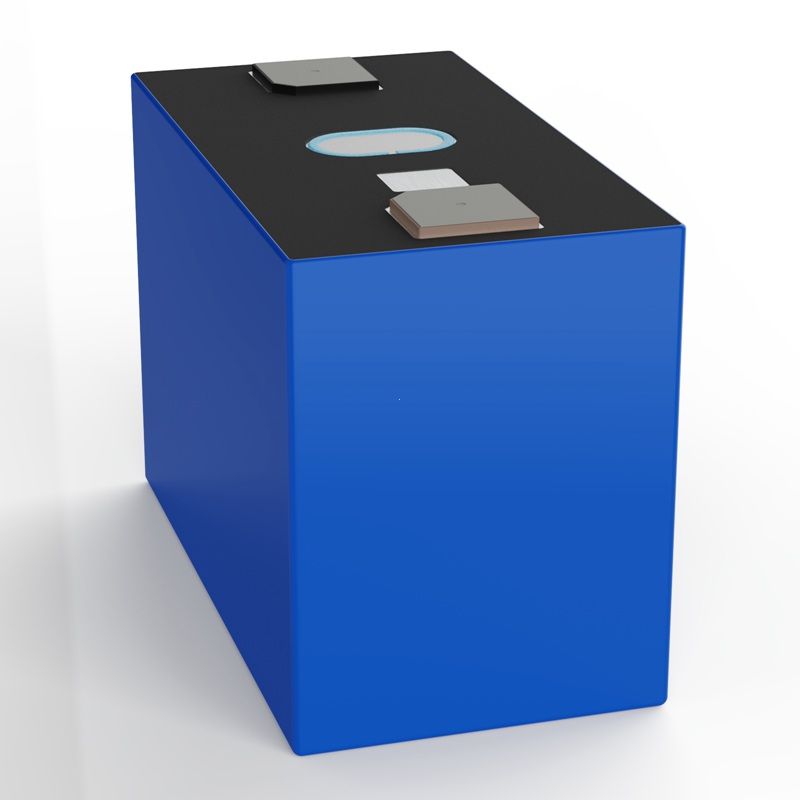

REPT 3.2V 135Ah LiFePO4 Battery Cell
REPT 135Ah LiFePO4 Battery Cell CAD Drawing with Dimensions and Main Parameters
Gobel Power was established in 2012 and is based in Shenzhen, China. Our products and services include wholesaling cylindrical & prismatic LiFePO4 and Lithium Ion battery cells, producing lithium battery packs and providing battery solutions. Our products are mainly used in solar energy storage, electric bikes, electric scooters, electric motorbike, boats, forklifts, sweepers, golf carts, and recreational vehicles.
-
