Gobel Power GP-WP1-PC314 16.1kWh Low-Voltage LiFePO4 Energy Storage Battery
The GP-WP1-PC314 is a high-performance low-voltage energy storage battery engineered by Gobel Power. Utilizing premium lithium iron phosphate (LiFePO4) cells, it delivers exceptional safety, long cycle life, and high energy density. With a nominal energy of 16.1kWh (314Ah) per unit, this system supports up to 63 units in parallel, enabling a massive total capacity of up to 1012kWh. Featuring the built-in GP-PC200B Battery Management System (BMS) and an IP65 waterproof rating, it is the ultimate solution for residential, off-grid, and commercial energy storage applications.
Key Features & Advantages
- IP65 Weatherproof Design: Fully dust-tight and water-resistant, guaranteeing reliable outdoor and indoor installation.
- Intelligent BMS Management: Integrated GP-PC200B BMS provides cell-level monitoring, over-charge/discharge protection, and thermal management.
- 2A Active Balancing: Built-in 2A active balancing ensures voltage consistency across cells, maximizing usable capacity and lifespan.
- Seamless Scalability: Auto-addressing technology allows up to 63 batteries to be connected in parallel without manual DIP switch configuration.
- Remote WiFi Monitoring: Connects to the Gobel VRM platform for real-time mobile app monitoring of SOC, voltage, and system health.
- Universal Inverter Compatibility: Pre-programmed to communicate flawlessly with mainstream global inverter brands.
Comprehensive Technical Specifications
| 1. Electrical & Performance Parameters | |
|---|---|
| Cell Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 44.0V – 58.4V |
| Nominal Capacity | 314Ah |
| Nominal Energy | 16.1 kWh |
| Max Continuous Charge Current | 140A |
| Max Continuous Discharge Current | 150A |
| Recommended Depth of Discharge (DOD) | 90% |
| Cycle Life | ≥ 10,000 Cycles (25°C, 0.5C/0.5C, 70% EOL) |
| Round-trip Efficiency | ≥ 95% |
| 2. Mechanical & Environmental Data | |
| Dimensions (H × W × D) | 960 × 480 × 270 mm |
| Net Weight | 125 kg |
| Installation Method | Floor Standing |
| Ingress Protection (IP Rating) | IP65 (Outdoor/Indoor) |
| Charge Temperature Range | 0°C to +50°C |
| Discharge Temperature Range | -20°C to +50°C |
| 3. Smart Features & Compliance | |
| Communication Interfaces | RS485 / CAN / RS232 / WiFi |
| Scalability (Parallel Connection) | Up to 63 Units (Max System Energy: 1012 kWh) |
| Circuit Breaker | Built-in 2P 125A (250A Total) |
| Certifications | CE, UN38.3 |
| Warranty | 10 Years |
Visual Gallery & Diagrams

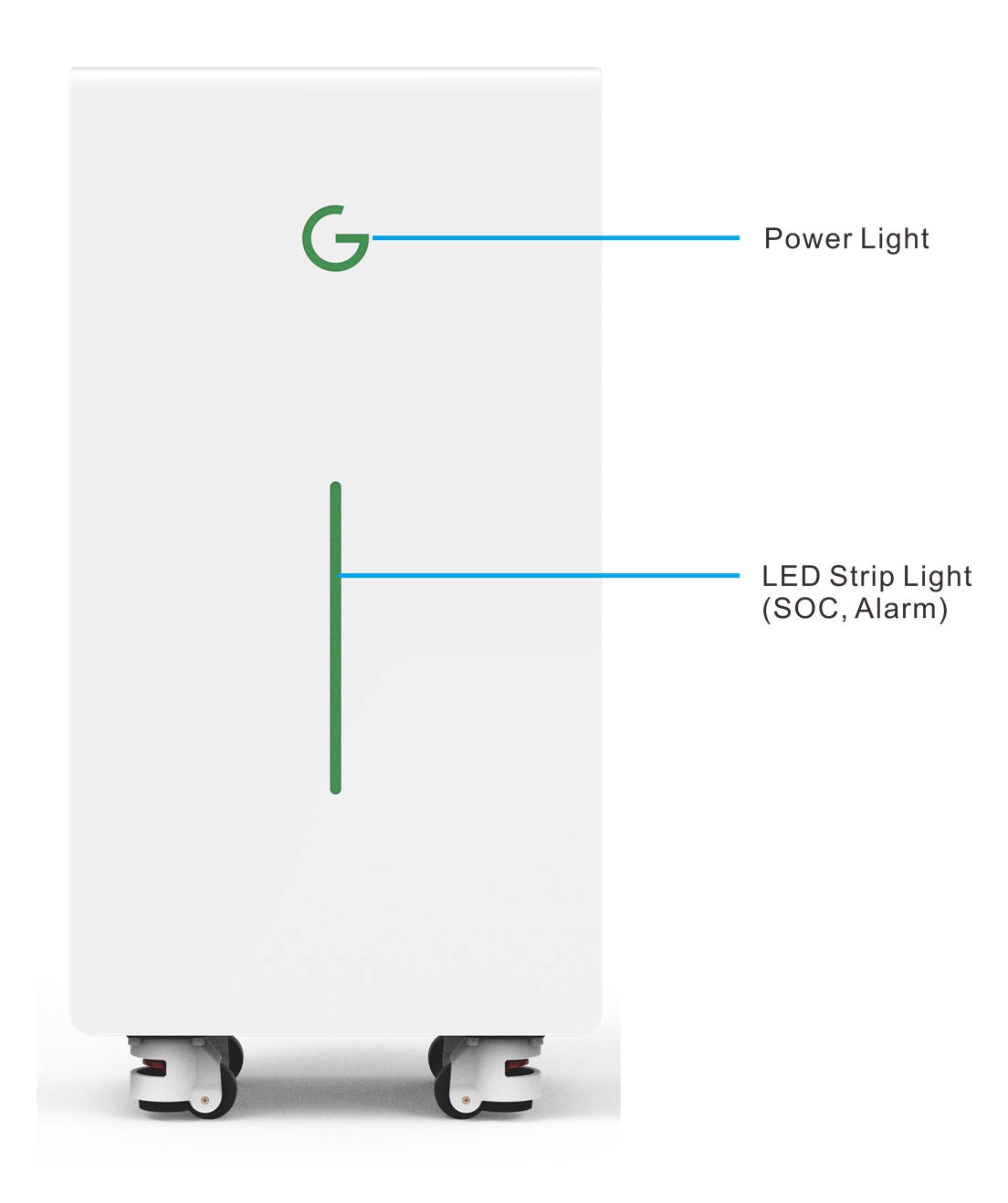

GP-WP1-PC314 Front Design

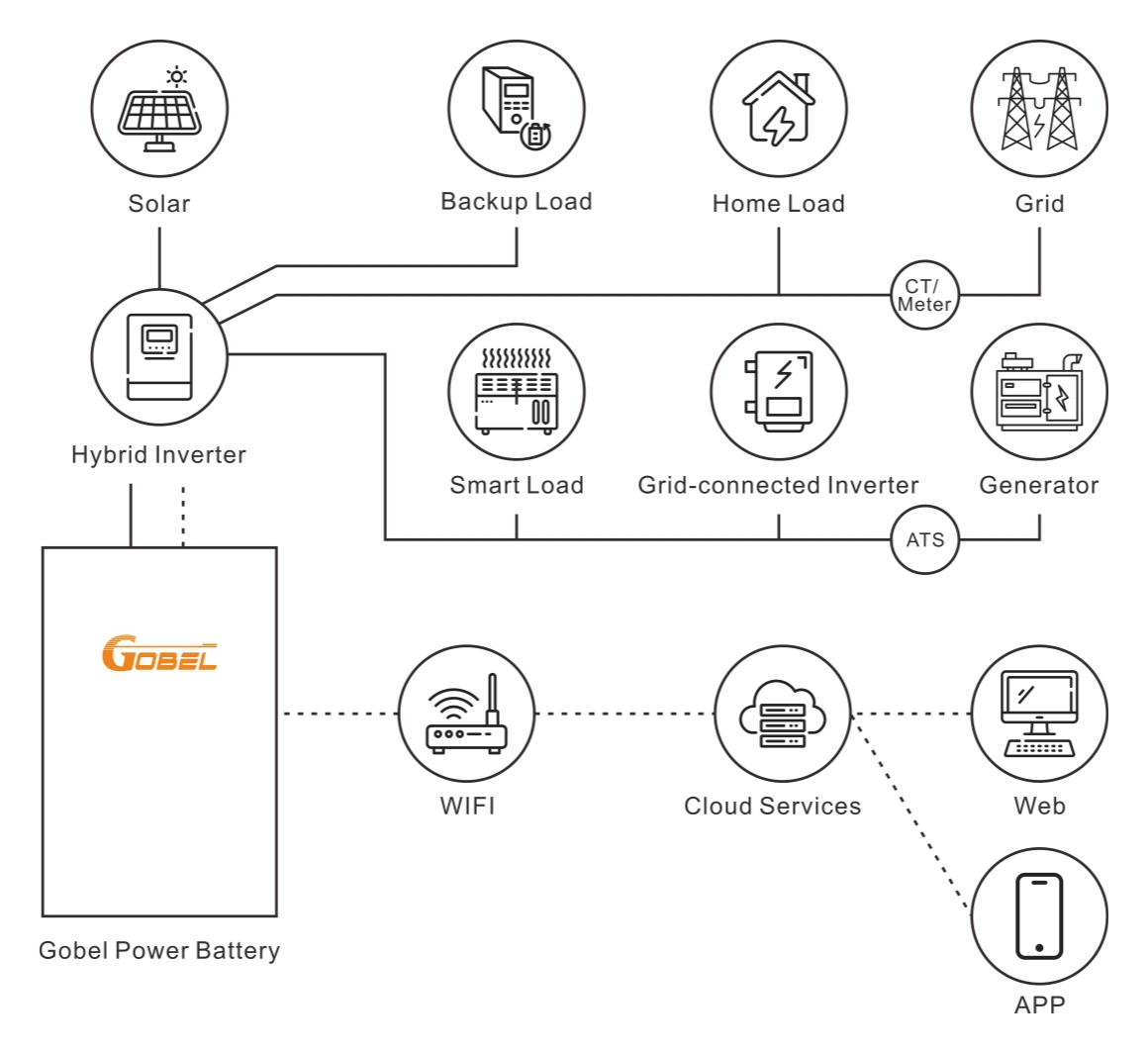

Typical Energy Storage System Connection

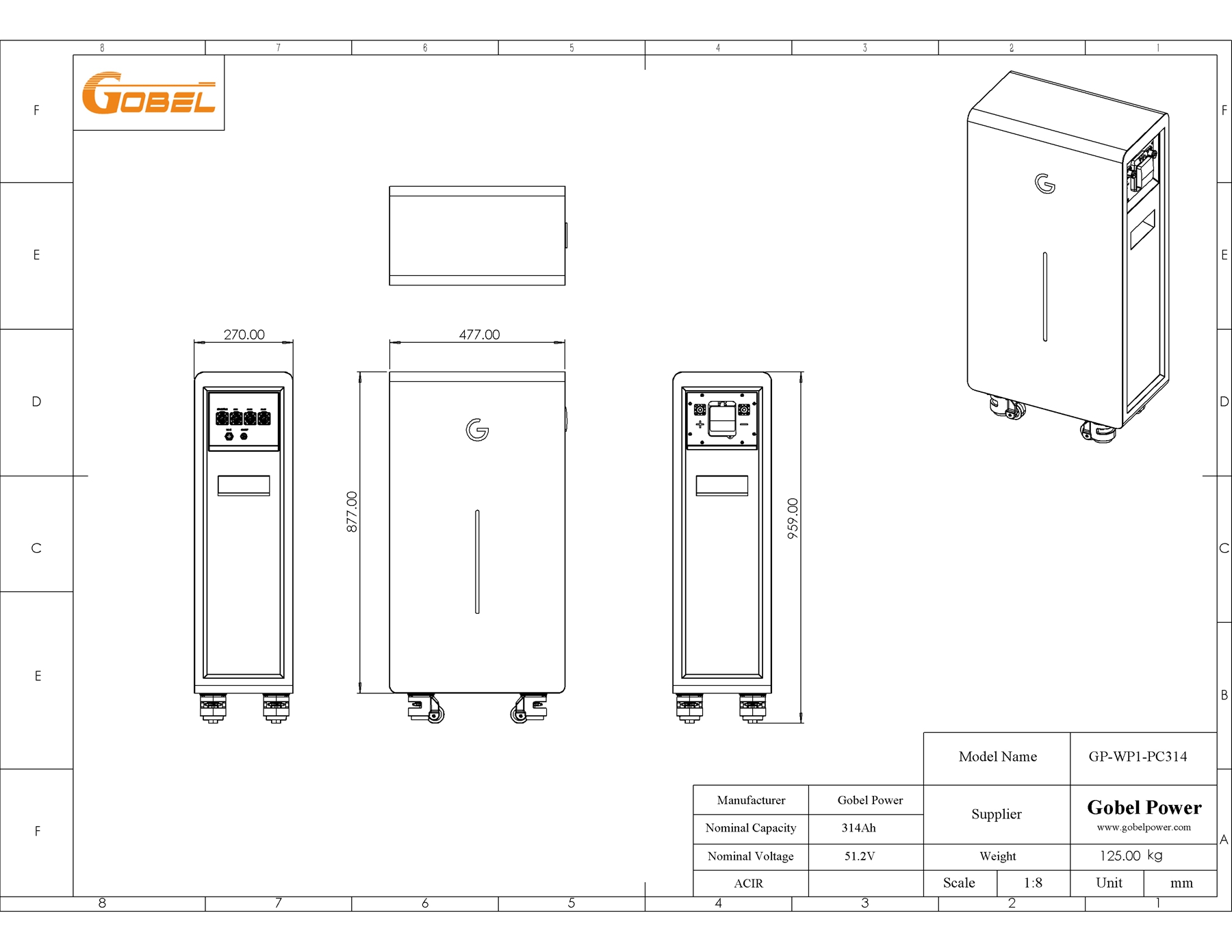

Product Dimensions
Related Documents
Footnotes & Disclaimers
- Test conditions: 25°C ±2°C, beginning of life, 0.5C charge/discharge, 100% DOD.
- Current is affected by temperature and State of Charge (SOC); actual operational values may be lower than the nominal value.
- Refer to the official Gobel Power warranty letter for specific terms and conditions.
- Model:
- GP-WP1-PC314
- Battery Type:
- Prismatic LiFePO4
- Nominal Voltage:
- 51.2V
- Nominal Capacity:
- 314Ah
- Total Energy:
- 16.08kWh
- Battery Cells:
- 16S1P 314Ah Cells
- Max Charge Current:
- 150A
- Max Discharge Current:
- 150A
- Charge Cut-off Protect Voltage:
- 58.4V
- Disharge Cut-off Protect Voltage:
- 44V
- Communication Port:
- RS485, RS232, CAN，WIFI
- Parallel Connection:
- Max 63 Units in Parallels
- Series Connection:
- No
- Cycle life:
- 10000 Times
- Size:
- 960 * 480 * 270
- Weight:
- 125kg
- Cooling:
- Natural cooling
- Environment:
- Indoor/Outdoor
- Mounting options:
- Sever Rack, Floor
- Discharge Temperature (℃):
- -20℃~+60℃
- Charge Temperature (℃):
- -20℃~+60℃
- Inverter Compatibility:
- Yes
- Active Balancer:
- Built-in 2A Active Balancer
- Maximum Elevation:
- 4000m
- Warranty:
- 5-10 Years
Gobel Power was established in 2012 and is based in Shenzhen, China. Our products and services include wholesaling cylindrical & prismatic LiFePO4 and Lithium Ion battery cells, producing lithium battery packs and providing battery solutions. Our products are mainly used in solar energy storage, electric bikes, electric scooters, electric motorbike, boats, forklifts, sweepers, golf carts, and recreational vehicles.
-
