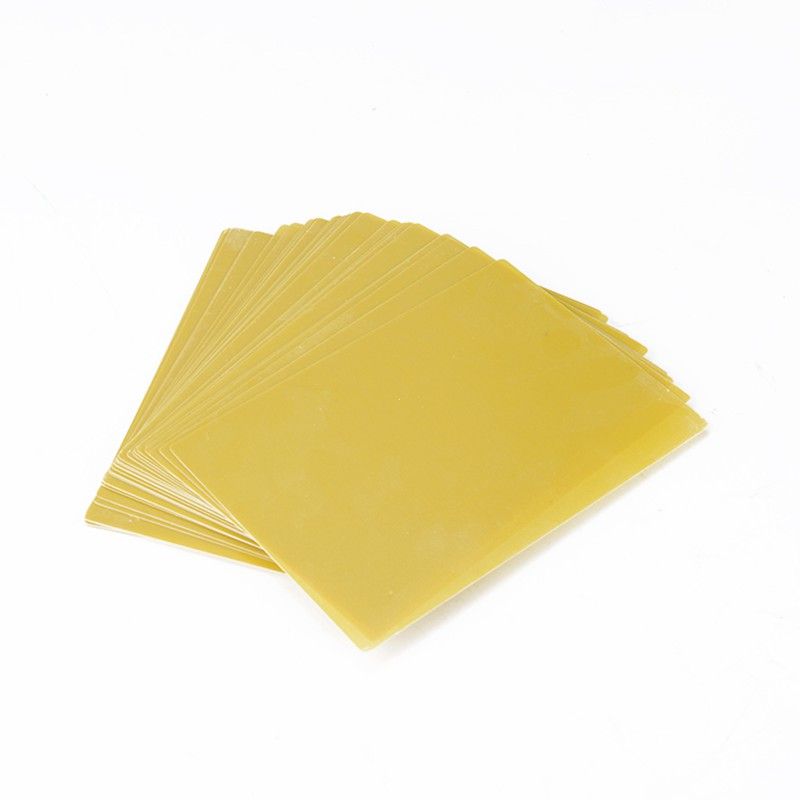

Various Size Epoxy Sheet Glass Fiber Mats Separator for DIY Lithium LiFePO4 Battery

Must Buy with Cells

Model: SP-ES

10 Customer Reviews
Traditional: US$2.00
US$ 0.20 Ship from China
    :
Quantity:
Sub Total: US$

In Stock , Ship to US
Like
211
1 US$0.20
  • Wholesale, OEM Service
  • Private Label Service
  • Physical and Electrical Design Service
  • Complete Solutions for Packing Factory
  • Full Documents for Export & Import
  • Ships to US and Other Countries.

    Buy Together

    Various Size Epoxy Sheet Glass Fiber Mats Separator for DIY Lithium LiFePO4 Battery

    Packing Factory Solutions Contact Us Cooperation with Factories Worldwide
    Specifications (Verified)
    Gobel Power technician has verified the accuracy of following technical parameters according to manufacturer's data sheet. Gobel Power gurrantees the product is authentic.

    Material:
    3240 Glass Fiber
    Shipping & Payment

    Sea Freight shipping for all batteries Free Tax, we have paid tax for you Spareparts can be shipped by UPS/DHL
    Paypal Credit Card Bank Transfer
    Related Downloads

    Wholesale or OEM? Chat with Our Experts in WhatApp
    Model Summary

    3240 epoxy sheets under GB/T 1303-2009 standard can be used for the insulation and encapsulation of lithium-ion batteries.

    The series of epoxy sheets not only can meet the insulating requirements of your products but also has various colors for you to choose.

    The corresponding types of the epoxy sheet under the National Electrical Manufacturers Association (NEMA) standard include FR-4 (temperature resistance 130°C, black, white, yellow, aqua green ones are available ), G10 (temperature resistance 155°C, color: aqua green), FR-5 (temperature resistance 155°C, color option: yellow-brown and dark green) and G11 (temperature resistance 180°C, yellow), as well as ordinary epoxy sheets (temperature resistance 130°C, color: yellow).

    The difference between G10 and G11 is that the fiberglass content is 10% and 11% respectively.

    Therefore, for those who require flame retardant performance, FR-4 and FR-5 can be the best choice.

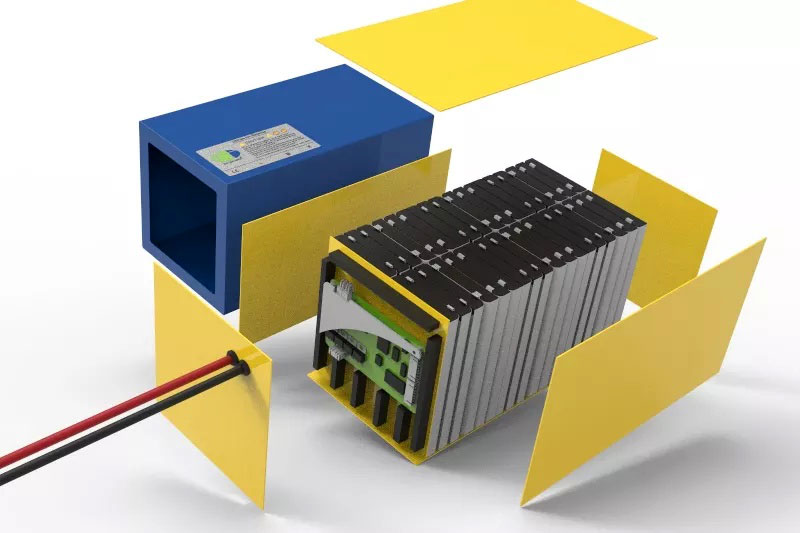

    epoxy sheet for diy lithium battery
