- Manufacturer:
- EVE
- Model No.:
- LF356L 356AH
- Typical Voltage:
- 3.2V
- Typical Capacity:
- 356Ah
- AC Impedance Resistance:
- ≤0.16mΩ
- Life Cycle:
- 8000
- Standard Charge/Discharge Current:
- 0.5C/0.5C
- Standard Charge Cut-off Voltage:
- 3.65V
- Standard Discharge Cut-off Voltage:
- 2.5V
- Continuous Charge/Discharge Current:
- 0.5C/0.5C
- Recommended SOC Window:
- 10%~90%
- Charging Working Temperature:
- 0℃~60℃
- Discharging Working Temperature:
- -30℃~60℃
- Self Discharging Rate:
- <3%
- Short Term Storage Temperature (< 1 Month):
- -20℃~45℃
- Long Term Storage Temperature (< 1 Year):
- 0℃~35℃
- Storage Moisture:
- <95%
- Cell Dimension:
- 212.1*72.5*187.1mm
- Cell Weight:
- 6220g
- Certification:
- MSDS, UN38.3, CE
- Warranty:
- 5 Years
The EVE LF356L is a 3.2V 356Ah prismatic LiFePO4 (LFP) rechargeable cell — a new-generation large-capacity LFP cell:
- Nominal: 3.2V / 356Ah typical capacity (~1.14kWh per cell)
- Internal resistance: ≤0.16mΩ AC impedance — low-IR cell runs cooler and more efficiently under load
- Rates: standard and continuous charge/discharge 0.5C/0.5C; charge cut-off 3.65V, discharge cut-off 2.5V
- Recommended SOC window: 10%–90%
- Temperature: charge 0°C~60°C, discharge -30°C~60°C
- Dimensions/weight: 212.1 × 72.5 × 187.1mm, 6.22kg — standard prismatic format for 12V, 24V, and 48V DIY builds
- Certification: MSDS, UN38.3, and CE
Stack 16 cells and you have a ~18.2kWh / 51.2V solar energy storage pack.
The LF356L is rated for 8,000 charge/discharge cycles — LiFePO4 chemistry ages slowly and predictably, giving over 20 years of daily cycling at one cycle per day. It is backed by a 5-year warranty. Combined with cobalt-free, inherently stable LFP chemistry, a conservative 0.5C operating window, and a 10%–90% recommended SOC window, this cell is built for solar energy storage, home ESS, and DIY battery packs that last decades.
HSEV-M is Gobel Power's matched-consistency grading for the LF356L:
- Matched voltage — cells in your order ship at tightly uniform voltages
- Matched capacity — every cell delivers the same usable energy from the first cycle
A battery pack is only as strong as its weakest cell — mismatched cells cause the weaker ones to be overworked, leading to faster degradation and imbalance. Market "Grade A" labels vary wildly (relabelled Grade B, fake QR codes, no test reports); Gobel Power's grading is based on measured consistency, so you know exactly what tier you're buying.
The LF356L is the foundation for:
- DIY battery packs — 12V, 24V, and 48V builds (16S = ~18.2kWh at 51.2V)
- Solar energy storage and home ESS
- Off-grid systems — discharges down to -30°C
- Server rack battery builds and commercial ESS projects
Each cell is 5.6kg-class prismatic format with M6-style terminals, certified to MSDS, UN38.3, and CE — the standard transport and safety certifications for lithium cells — and backed by a 5-year warranty.
As the demand for reliable and efficient energy storage solutions continues to rise, the EVE LF356L 356Ah lithium-ion battery stands out as a powerhouse in the realm of energy storage. Designed to deliver exceptional performance and longevity, this battery is equipped with cutting-edge features that make it a standout choice for various applications. Let's delve into the intricate details of the EVE LF356L 356Ah battery, exploring its specifications, dimensions, and the assurance of a 5-year warranty.
Specifications Section:
The EVE LF356L 356Ah battery boasts a typical voltage of 3.2V and a remarkable typical capacity of 356.3Ah. With an AC impedance resistance of 0.15±0.05mΩ, this battery ensures efficient power delivery and minimal energy loss. Its impressive life cycle spans 8000 cycles, showcasing its resilience and durability in demanding usage scenarios. The standard charge/discharge power stands at 0.5P/0.5P, while the standard charge cut-off voltage is set at 3.65V, ensuring safe and optimal charging operations. Additionally, the standard discharge cut-off voltage is 2.5V, maintaining stable and reliable performance throughout its operation.
Temperature and Storage Information:
Operating within a wide range of temperatures, the EVE LF356L 356Ah battery is designed to withstand charging temperatures from 0℃ to 60℃ and discharging temperatures from -30℃ to 60℃, making it suitable for diverse environmental conditions. Its self-discharging rate is impressively low, clocking in at less than 3.5% per month, ensuring minimal energy loss during storage. For short-term storage, the recommended temperature range spans from -20℃ to 45℃, while long-term storage is best maintained within 0℃ to 35℃, ensuring its longevity and performance over time.
Certifications and Warranty:
Backed by essential certifications including MSDS, UN38.3, and CE, the EVE LF356L 356Ah battery meets stringent safety and quality standards, ensuring peace of mind for users across various industries. Additionally, EVE provides a comprehensive 5-year warranty, underscoring their commitment to delivering a reliable and long-lasting energy storage solution.
In conclusion, the EVE LF356L 356Ah lithium-ion battery embodies a blend of exceptional performance, robust design, and a commitment to quality and safety. Whether for renewable energy storage, electric vehicles, or industrial applications, this battery stands as a testament to EVE's dedication to delivering cutting-edge energy storage solutions. For further details or to explore additional resources, feel free to reach out to EVE for more information.
This article aims to provide valuable insights into the EVE LF356L 356Ah battery, offering a comprehensive overview of its specifications, dimensions, and the assurance of a 5-year warranty.
Lifepo4 Zellen, 3,2V, LiFePO EVE 356Ah, 8000 Zyklen
Brand new EVE 3.2V 356Ah Cell with original QR.

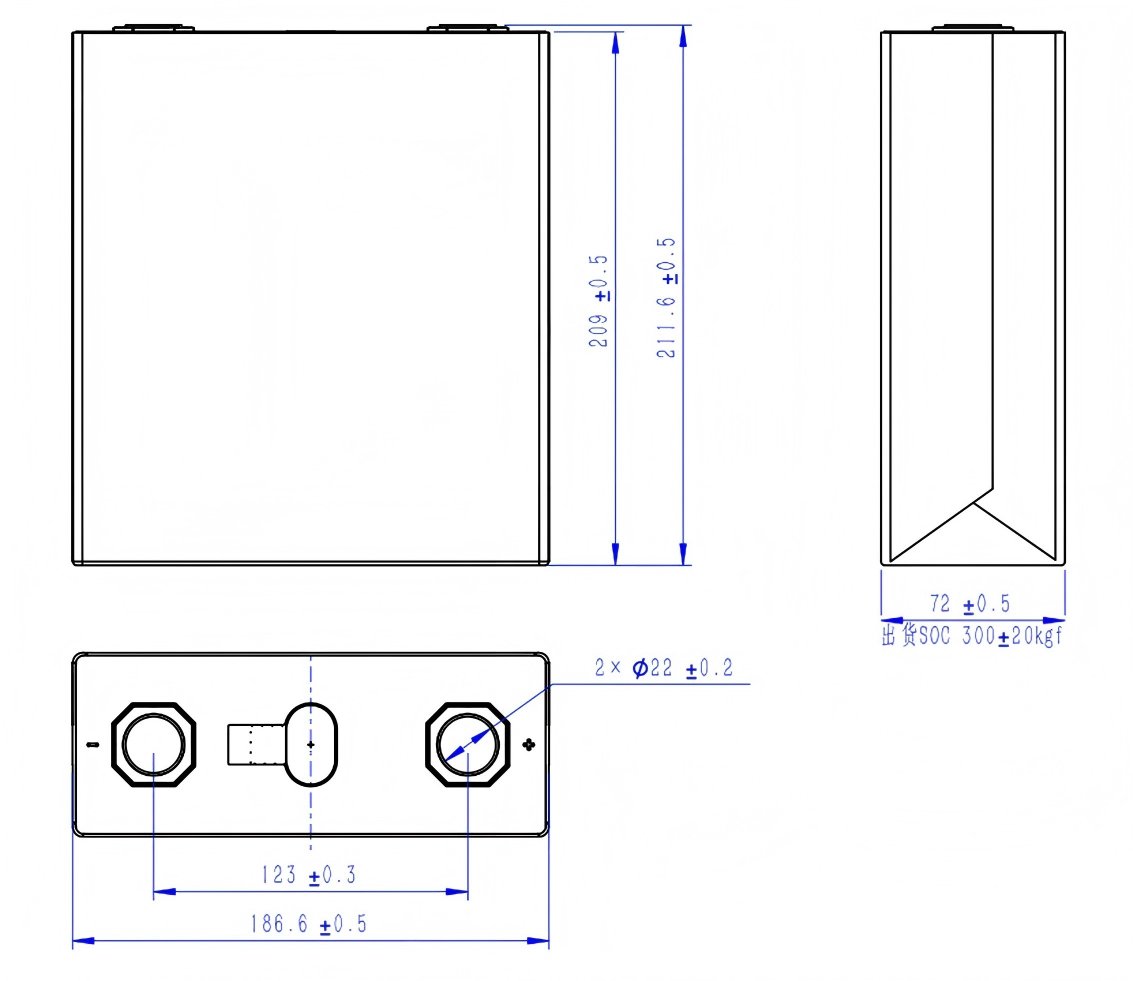

EVE 356Ah LiFePO4 Battery Cell CAD Drawing with Dimensions and Main Parameters
Gobel Power was established in 2012 and is based in Shenzhen, China. Our products and services include wholesaling cylindrical & prismatic LiFePO4 and Lithium Ion battery cells, producing lithium battery packs and providing battery solutions. Our products are mainly used in solar energy storage, electric bikes, electric scooters, electric motorbike, boats, forklifts, sweepers, golf carts, and recreational vehicles.
-
