EVE 3.2V 230Ah Rechargeable Prismatic LiFePO4 Battery Cell

Authentic LiFePO4 Battery Cell


10 Customer Reviews
Traditional: US$115.00
US$ 91.00
    Busbars and Bolts:
    :
    QR Intact:
    Matched IR:
    Matched Voltage:
Quantity:
Sub Total: US$

In Stock , Ship to United States
Like
71
1 US$91.00
  • Wholesale, OEM Service
  • Private Label Service
  • Physical and Electrical Design Service
  • Complete Solutions for Packing Factory
  • Full Documents for Export & Import
  • Ships to United States and Other Countries.

    EVE 3.2V 230Ah Rechargeable Prismatic LiFePO4 Battery Cell

    Packing Factory Solutions Contact Us Cooperation with Factories Worldwide

    Cell Grade:

    Grade ESS Grade LSEV Grade HSEV
    Usage Energy Storage Low Speed Electric Vehicle High Speed Electric Vehicle
    Brand New Yes Yes Yes
    Full Capacity Yes Yes Yes
    Matched IR Yes Yes Yes
    Matched Voltage Yes Yes Yes
    Matched Capacity No Yes Yes
    Official Test Report No No Yes
    Match Standard + ++ +++

    All cells have matched voltage and IR.

    Specifications (Verified)
    Gobel Power technician has verified the accuracy of following technical parameters according to manufacturer's data sheet. Gobel Power gurrantees the product is authentic.

    Manufacturer:
    EVE
    Model No.:
    LF230
    Typical Voltage:
    3.2V
    Typical Capacity:
    230Ah
    AC Impedance Resistance:
    ≤0.3mΩ
    Life Cycle:
    3500
    Standard Charge/Discharge Current:
    0.5C/0.5C
    Standard Charge Cut-off Voltage:
    3.65V
    Standard Discharge Cut-off Voltage:
    2.5V
    Continuous Charge/Discharge Current:
    1C/1C
    Pulse Charge/Discharge Current (60s):
    2C/2C
    Recommended SOC Window:
    10%~90%
    Charging Working Temperature:
    0℃~60℃
    Discharging Working Temperature:
    -30℃~60℃
    Self Discharging Rate:
    Short Term Storage Temperature (< 1 Month):
    -20℃~45℃
    Long Term Storage Temperature (< 1 Year):
    0℃~35℃
    Storage Moisture:
    <95%
    Cell Dimension:
    207*54*174mm
    Cell Weight:
    4110g
    Certification:
    UL, MSDS, UN38.3, CE
    Manufacturer Introduction

    EVE Energy Co., Ltd. (hereinafter referred to as EVE) is a China-based company principally engaged in the development, manufacture and distribution of battery products. The Company’s main products include lithium primary batteries, lithium ion batteries and electronic cigarettes, among others. Established in 2001, EVE was first listed on Shenzhen GEM in 2009 (Stock code: 300014). After 20 years of rapid development, EVE is now a global lithium battery company which possesses core technologies and solutions for consumer, power, IoT and renewable applications.
    Shipping & Payment

    Sea Freight shipping for all batteries Free Tax, we have paid tax for you Spareparts can be shipped by UPS/DHL
    Paypal Credit Card Bank Transfer
    Related Downloads

    EVE LF230 Data Sheet
    LiFePO4 Cells Full Catalog
    Wholesale or OEM? Chat with Our Experts in WhatApp
    Model Summary

    EVE 3.2V 230Ah LiFePO4 Battery Cell

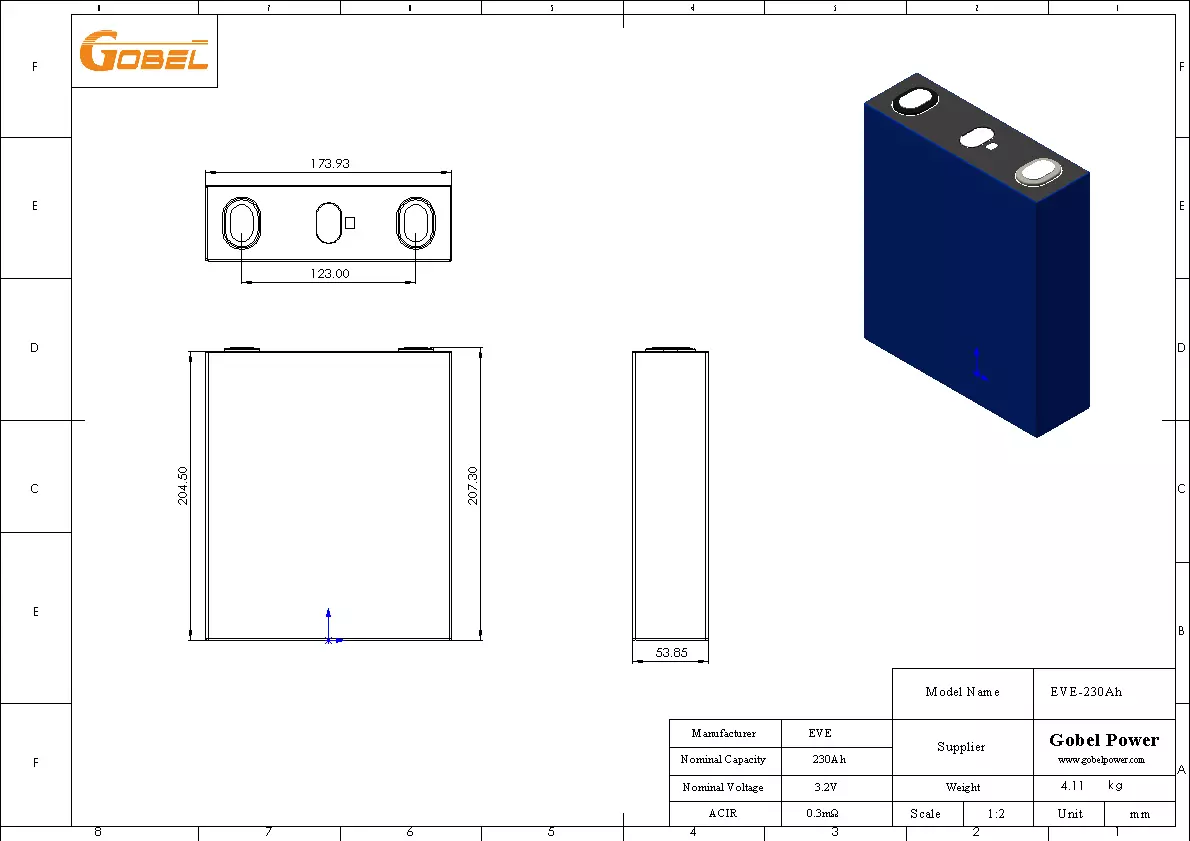

    EVE 230Ah LiFePO4 Battery Cell CAD Drawing with Dimensions and Main Parameters

    EVE 230Ah LiFePO4 Battery Cell CAD Drawing with Dimensions and Main Parameters
