Model:

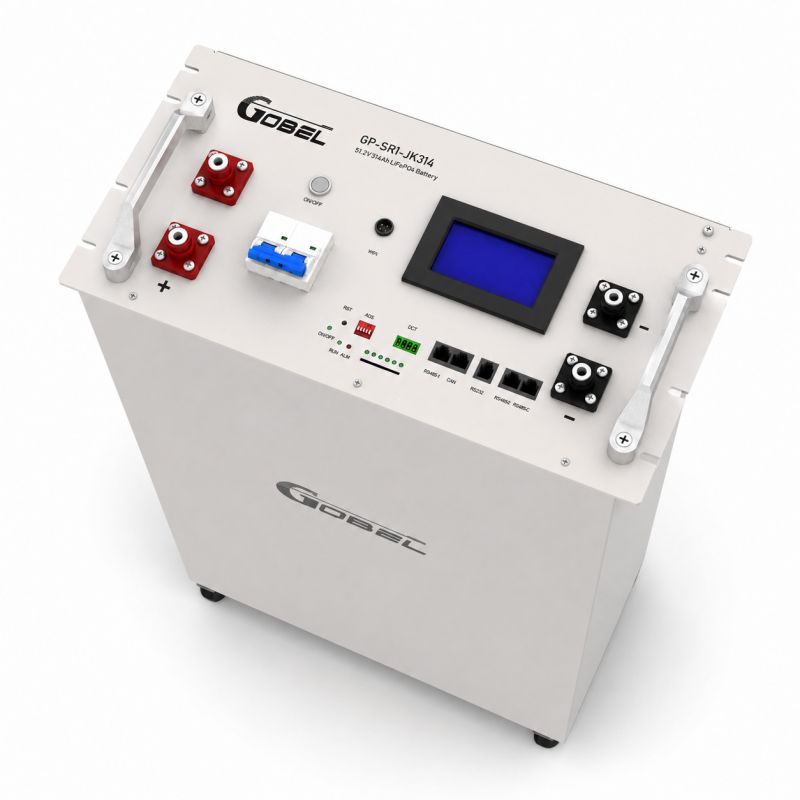

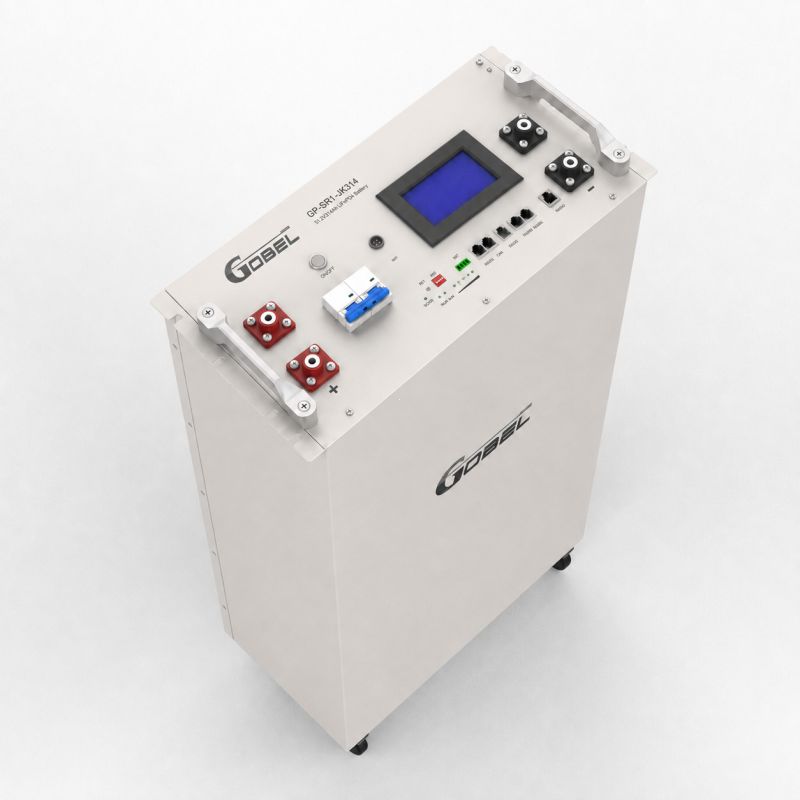

GP-SR1-JK314 Premium

Battery Type:

Prismatic LiFePO4

Nominal Voltage:

51.2V

Nominal Capacity:

314Ah

Total Energy:

16kWh

Battery Cells:

16S1P 314Ah Cells

Max Charge Current:

140A

Max Discharge Current:

150A

Charge Cut-off Protect Voltage:

55.2V

Disharge Cut-off Protect Voltage:

46V

Communication Port:

RS485, RS232, CAN

Parallel Connection:

Max 16 Units in Parallels

Series Connection:

No

Cycle life:

8000 Times

Size:

482.6*771.5*241

Weight:

118kg

Cooling:

Natural cooling

Environment:

Indoor

Mounting options:

Sever Rack, Floor

Discharge Temperature (℃):

-30℃~+60℃

Charge Temperature (℃):

0℃ ~+60℃

Inverter Compatibility:

Yes

Active Balancer:

Build-in 2A Active Balancer (External 4A Balancer Optional)

Maximum Elevation:

4000m

Warranty:

8 Years
