Specifications (Verified)
Gobel Power technician has verified the accuracy of following technical parameters according to manufacturer's data sheet. Gobel Power gurrantees the product is authentic.
- Manufacturer:
- CATL
- Model No.:
- CATL161
- Typical Voltage:
- 3.2V
- Typical Capacity:
- 161Ah
- AC Impedance Resistance:
- 0.4mΩ
- Life Cycle:
- 3500
- Standard Charge/Discharge Current:
- 0.2C/1C
- Standard Charge Cut-off Voltage:
- 3.65V
- Standard Discharge Cut-off Voltage:
- 2.5V (>0℃) / 2.0V (<0℃)
- Continuous Charge/Discharge Current:
- 1C/1C
- Pulse Charge/Discharge Current (30s):
- Recommended SOC Window:
- 10%~90%
- Charging Working Temperature:
- 0℃~50℃
- Discharging Working Temperature:
- -20℃~55℃
- Self Discharging Rate:
- Short Term Storage Temperature (< 1 Month):
- -20℃~45℃
- Long Term Storage Temperature (< Year):
- -20℃~25℃
- Storage Moisture:
- <95%
- Cell Dimension (L*W*H):
- 280*62*85mm
- Cell Weight:
- 3.1kg
- Certification:
- UL, MSDS, UN38.3, CE
Manufacturer Introduction
CATL is a global leader of new energy innovative technologies, committed to providing premier solutions and services for new energy applications worldwide. CATL began its overseas journey by establishing Contemporary Amperex Technology GmbH (CATG) in Munich, Germany, in 2014. Four years later, CATL founded Contemporary Amperex Technology Thuringia GmbH (CATT) in Erfurt, Thuringia, marking its first global expansion in EV battery manufacturing. CATL is bringing its state-of-the-art technologies to the heart of Europe by localizing innovative battery technology to drive the growth of the region′s EV industry. As a dynamic member of the Thuringian community, CATT is contributing to the concerted efforts of building a sustainable Europe. Thanks to features such as the high reliability, long service life and high energy efficiency of CATL's battery systems, "renewable energy + energy storage" has more advantages in cost per kWh in the whole life cycle.
Shipping & Payment
Sea Freight shipping for all batteries
Free Tax, we have paid tax for you
Spareparts can be shipped by UPS/DHL
Paypal
Credit Card
Bank Transfer
Related Downloads
Wholesale or OEM?
Chat with Our Experts in WhatApp
Model Summary

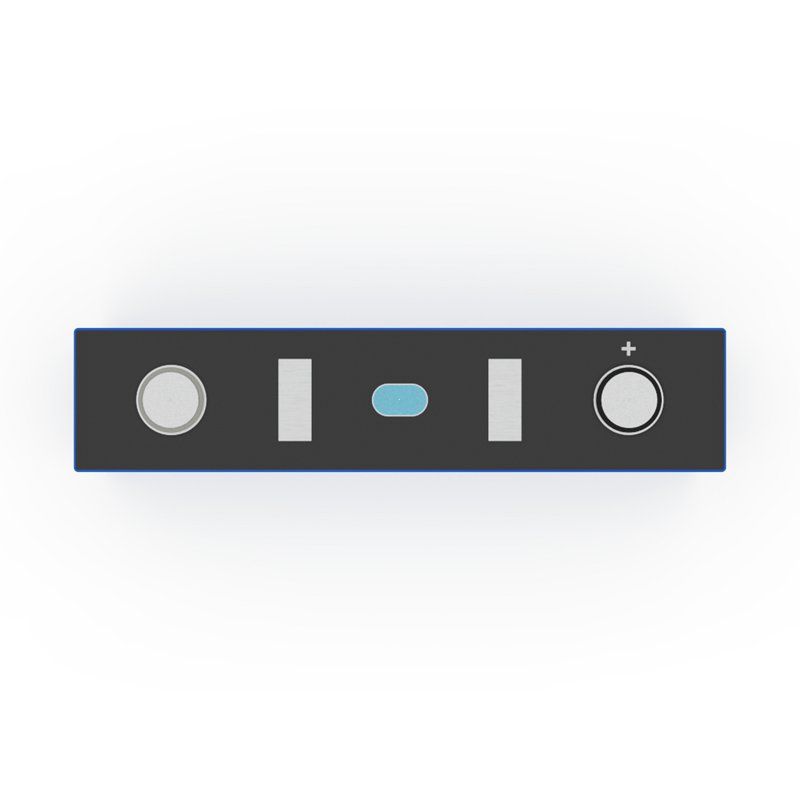

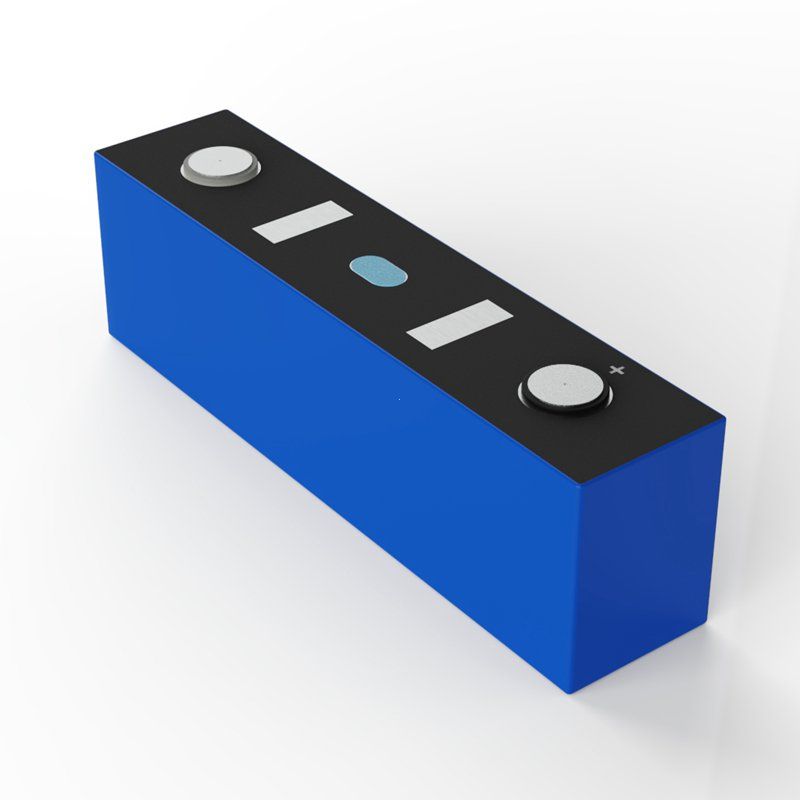

CATL 3.2V 161Ah LiFePO4 Battery Cell

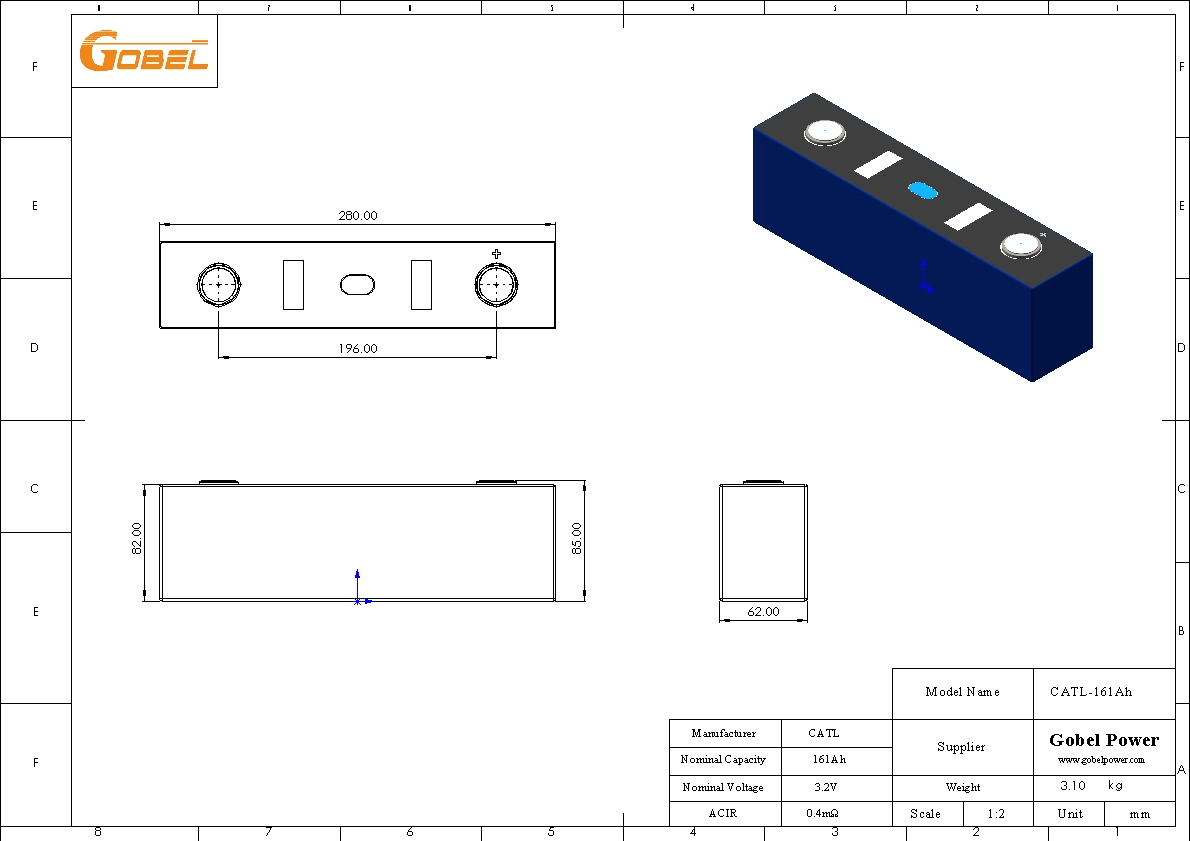

CATL 161Ah LiFePO4 Battery Cell CAD Drawing with Dimensions and Main Parameters
