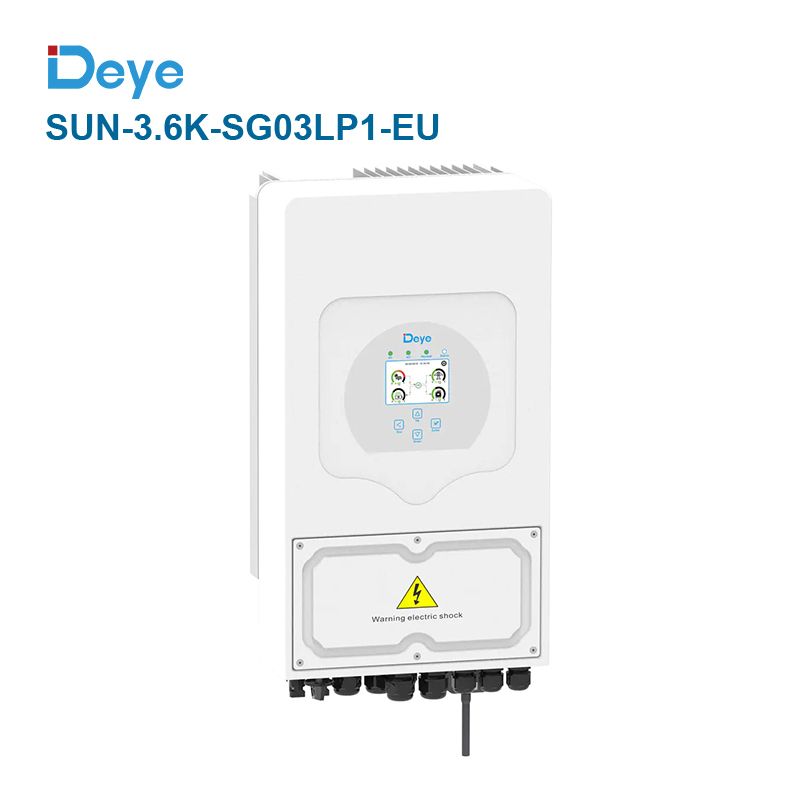

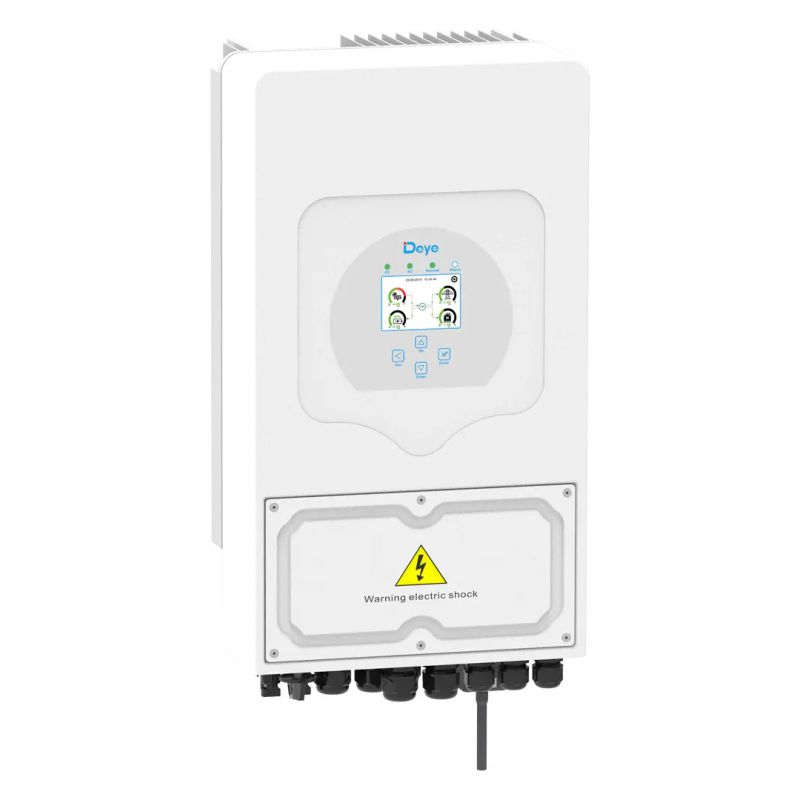

Wholesale Deye SUN-3.6K-SG03LP1-EU 3.6kW Single Phase 2 MPPT Hybrid Inverter for Low Voltage Battery

Deye SUN-3.6K-SG03LP1-EU 3.6kW Single Phase 2 MPPT Hybrid Inverter for Low Voltage Battery

Model: SUN-3.6K-SG03LP1-EU

Delivery Time:

From Local Warehouse: 7-15 days.

Warranty:

30 days free return to local warehouse.

US$ 0.25~0.30/W

Wholesale, OEM Service

Private Label Service

Physical and Electrical Design Service

Complete Solutions for Packing Factory

Full Documents for Export & Import

In Stock, Ship to US

Get Price

348

Ships to US and Other Countries.

Buy Together

Best Sellers

Grade A EVE 3.2V 314Ah MB31 Rechargeable LiFePO4 Battery Cell

10% OFF Ship from China US$72.00
EVE MB31 3.2V 314Ah EV Grade A+ LiFePO4 Battery Cell with Dual Thread Terminals - EU Warehouse

Ship from Europe US$82.00
EU Stock Grade A EVE 3.2V 314Ah MB31 Rechargeable LiFePO4 Battery Cell

Ship from Europe US$78.00
High Voltage Batttery 314Ah HV LiFePO4 Battery DIY Kit

5% OFF Ship from China US$2,968.00

Customer's Installations

Deye SUN-3.6K-SG03LP1-EU 3.6kW Single Phase 2 MPPT Hybrid Inverter for Low Voltage Battery

Packing Factory Solutions Contact Us Cooperation with Factories Worldwide

Compare Cells

Specifications (Verified)

Gobel Power technician has verified the accuracy of following technical parameters according to manufacturer's data sheet. Gobel Power gurrantees the product is authentic.

Brand:: Deye

Model:: SUN-3.6K-SG03LP1-EU

Battery Voltage:: 40VDC - 60VDC

Battery Type:: Lithium/Lead Acid

Rated Output Power:: 3600VA

Max Output Current:: 18A

AC Voltage:: 50/60Hz; 220/230Vac

AC grid connection type:: L/N/PE

Max Efficiency:: 97.6%

MPPT efficiency:: 99.9%

Max PV Array Power:: 4680W

MPPT Voltage:: 150~425V

Independent MPPT Tracker:: 2 Piece

MPPT Tracker String:: 1+1

Protection Degree:: IP65

Dimensions (W / H / D):: 330×580×232mm

Net Weight:: 20.5kg

Compare LiFePO4 Cells Prices

Find the best deals on high-quality LiFePO4 batteries from top manufacturers

Compare Now

Manufacturer Introduction

Deye

Ningbo Deye Inverter Technology Co., Ltd. founded in 2007 with registered capital 300 million RMB, is one of the China’s high-tech enterprises and a subsidiary of Deye Group. With a plant area over 15,000㎡ and complete production and testing equipment, Deye has become a major player in the global solar inverter market. Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic power system solutions, including residential and commercial power plants solutions. Also, Deye offers the right device for each application: for all module types, for grid-connection and stand-alone grids as well hybrid inverter system, for small house systems and commercial systems in the Megawatt range. Among them, PV grid-connected inverter power range from 1.5-110kW, Hybrid inverter 3kW-50kW, and microinverter 300W-2000W. As a technology-oriented company, Deye has always been committing to research and develop new cutting-edge technologies to provide efficiency and reliable products. For example, Deye adopts T-type three-level topology and enhanced SVPWM algorithm to further improve the conversion efficiency by 0.7% compared with common SPWM.

How to Distinguish If LiFePO4 Battery Cell is Authentic or Brand New?

Shipping & Payment

Sea Freight shipping for all batteries Free Tax, we have paid tax for you Spareparts can be shipped by UPS/DHL

Paypal Credit Card Bank Transfer

Related Downloads

Wholesale or OEM? Chat with Our Experts in WhatApp

Model Summary

SUN 3.6K-SG，hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence.

During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.

It equipped with RS485/CAN port for battery communication
