BYD 3.2V 230Ah Energy Storage LiFePO4 Battery Cell

Authentic LiFePO4 Battery Cell

Model: BYD230

  • Wholesale, OEM Service
  • Private Label Service
  • Physical and Electrical Design Service
  • Complete Solutions for Packing Factory
  • Full Documents for Export & Import

  • Ships to US and Other Countries.

    Buy Together

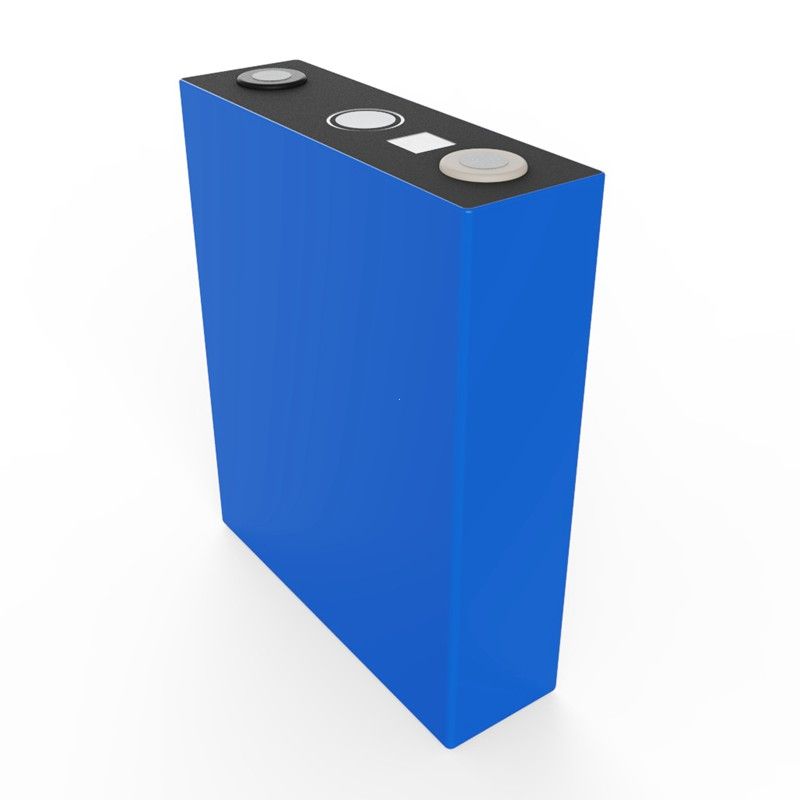

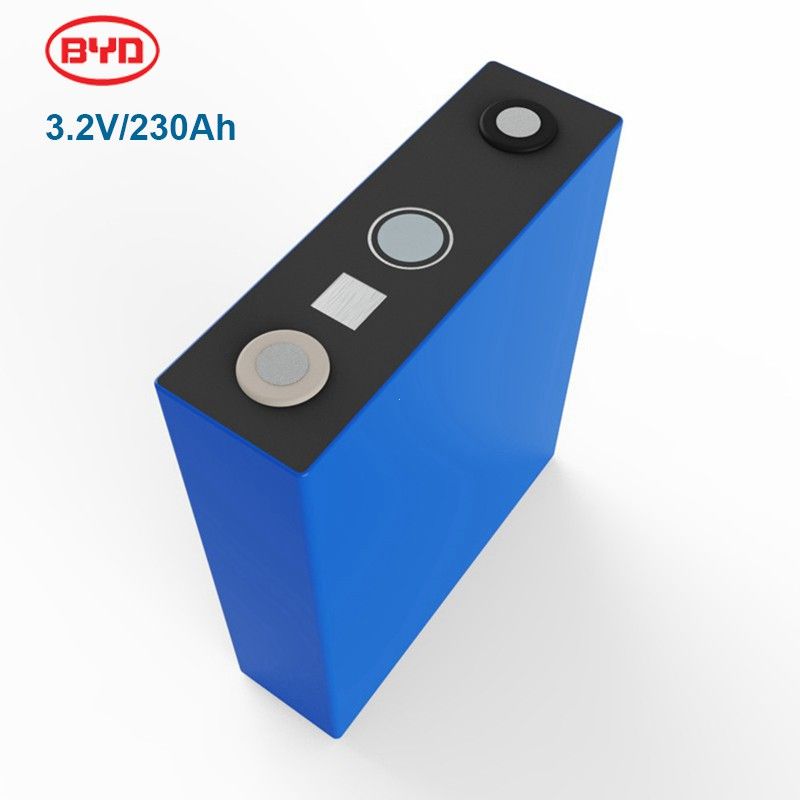

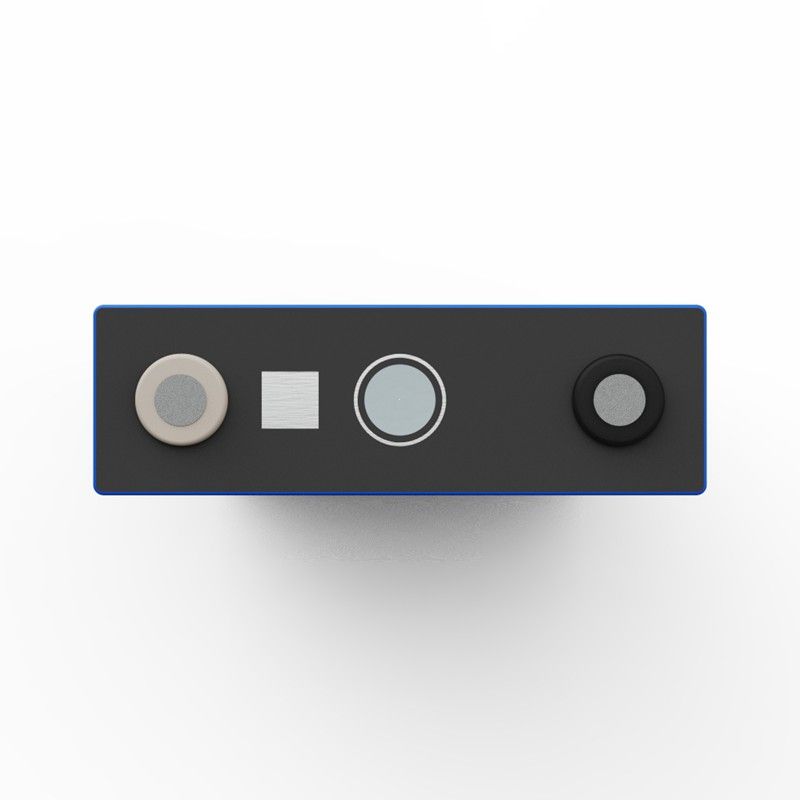

    BYD 3.2V 230Ah Energy Storage LiFePO4 Battery Cell

    Packing Factory Solutions Contact Us Cooperation with Factories Worldwide
    Specifications (Verified)
    Gobel Power technician has verified the accuracy of following technical parameters according to manufacturer's data sheet. Gobel Power gurrantees the product is authentic.

    Manufacturer:
    BYD
    Model No.:
    BYD230
    Typical Voltage:
    3.2V
    Typical Capacity:
    230Ah
    AC Impedance Resistance:
    ≤0.25mΩ
    Life Cycle:
    3000
    Standard Charge/Discharge Current:
    0.2C/0.2C
    Standard Charge Cut-off Voltage:
    3.65V
    Standard Discharge Cut-off Voltage:
    2.5V
    Max Continuous Charge/Discharge Current:
    2C/2C
    Pulse Charge/Discharge Current (30s):
    Recommended SOC Window:
    10%~90%
    Charging Working Temperature:
    0℃~55℃
    Discharging Working Temperature:
    -20℃~55℃
    Self Discharging Rate:
    4% (90 days)
    Short Term Storage Temperature (< 1 Month):
    0℃~45℃
    Long Term Storage Temperature (< 1 Year):
    0℃~40℃
    Storage Moisture:
    <95%
    Cell Dimension:
    207H*54W*173.6Lmm
    Cell Weight:
    4200g
    Certification:
    UL, MSDS, UN38.3, CE
    Manufacturer Introduction

    BYD is a high-tech company devoted to technological innovations for a better life. BYD was founded in February 1995, and after more than 20 years of fast growth, the company has established over 30 industrial parks worldwide and has played a significant role in industries related to electronics, automobiles, new energy and rail transit. From energy generation and storage to its applications, BYD is dedicated to providing zero-emission energy solutions. BYD is listed on the Hong Kong and Shenzhen Stock Exchanges, with revenue and market capitalization each exceeding RMB 100 billion.
    Shipping & Payment

    Sea Freight shipping for all batteries Free Tax, we have paid tax for you Spareparts can be shipped by UPS/DHL
    Paypal Credit Card Bank Transfer
    Related Downloads

    Wholesale or OEM? Chat with Our Experts in WhatApp
    Model Summary

    BYD 3.2V 230Ah LiFePO4 Battery Cell for Energy Storage

    EVE 230Ah LiFePO4 Battery Cell CAD Drawing with Dimensions and Main Parameters

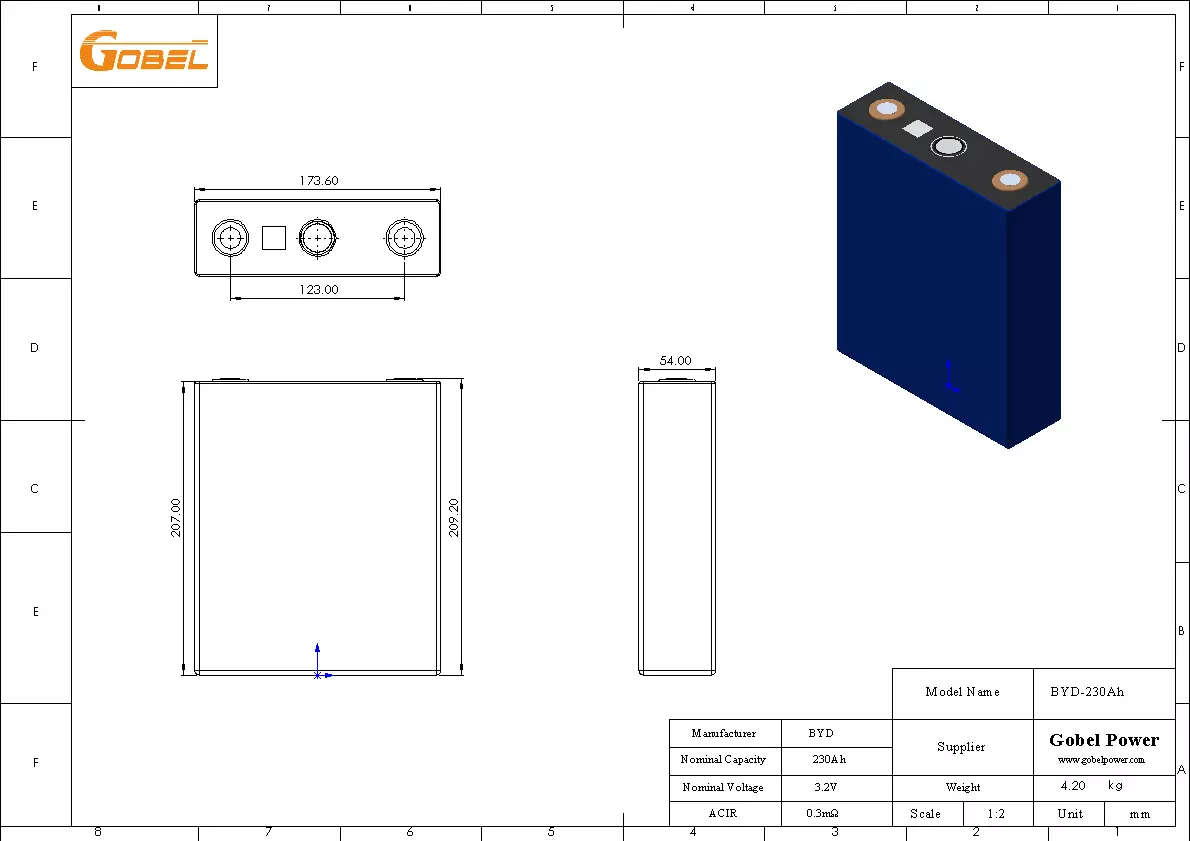

    BYD 230Ah LiFePO4 Battery Cell CAD Drawing with Dimensions and Main Parameters
