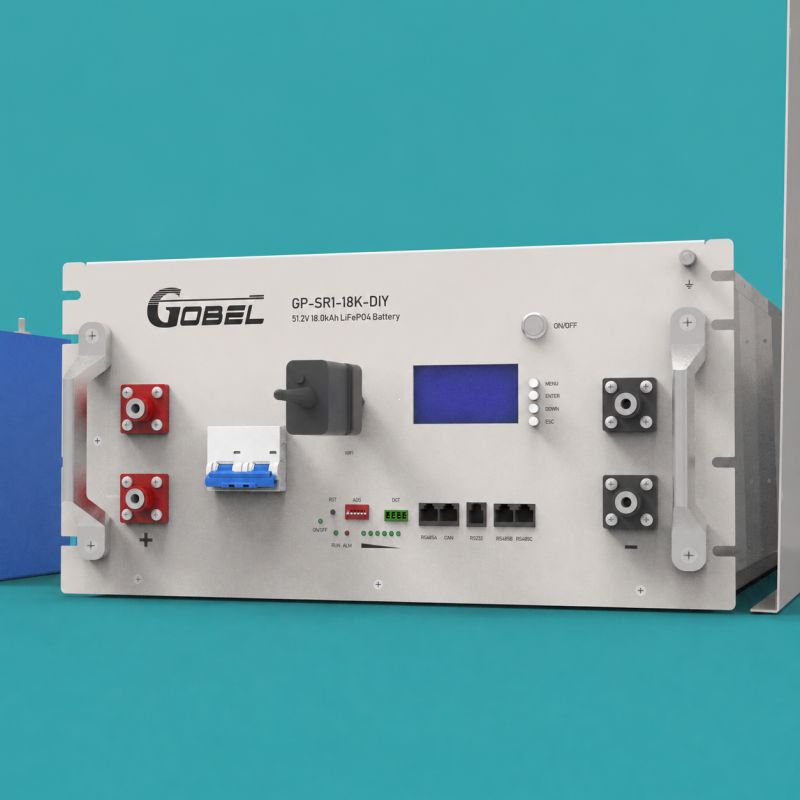

An 18 kWh kit
built for EVE cells.
The GP-SR1-PC200B-KIT-18K is a 51.2V LiFePO4 DIY battery kit designed specifically for EVE 356Ah cells — PC200 BMS, active balancing, and full Gobel support. Supply the cells, assemble it yourself.

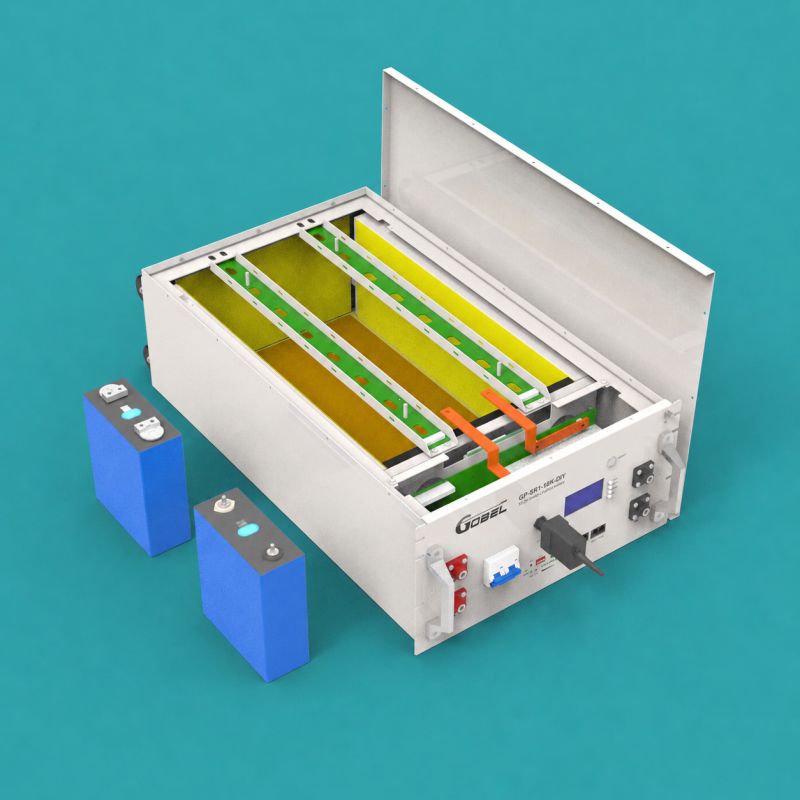

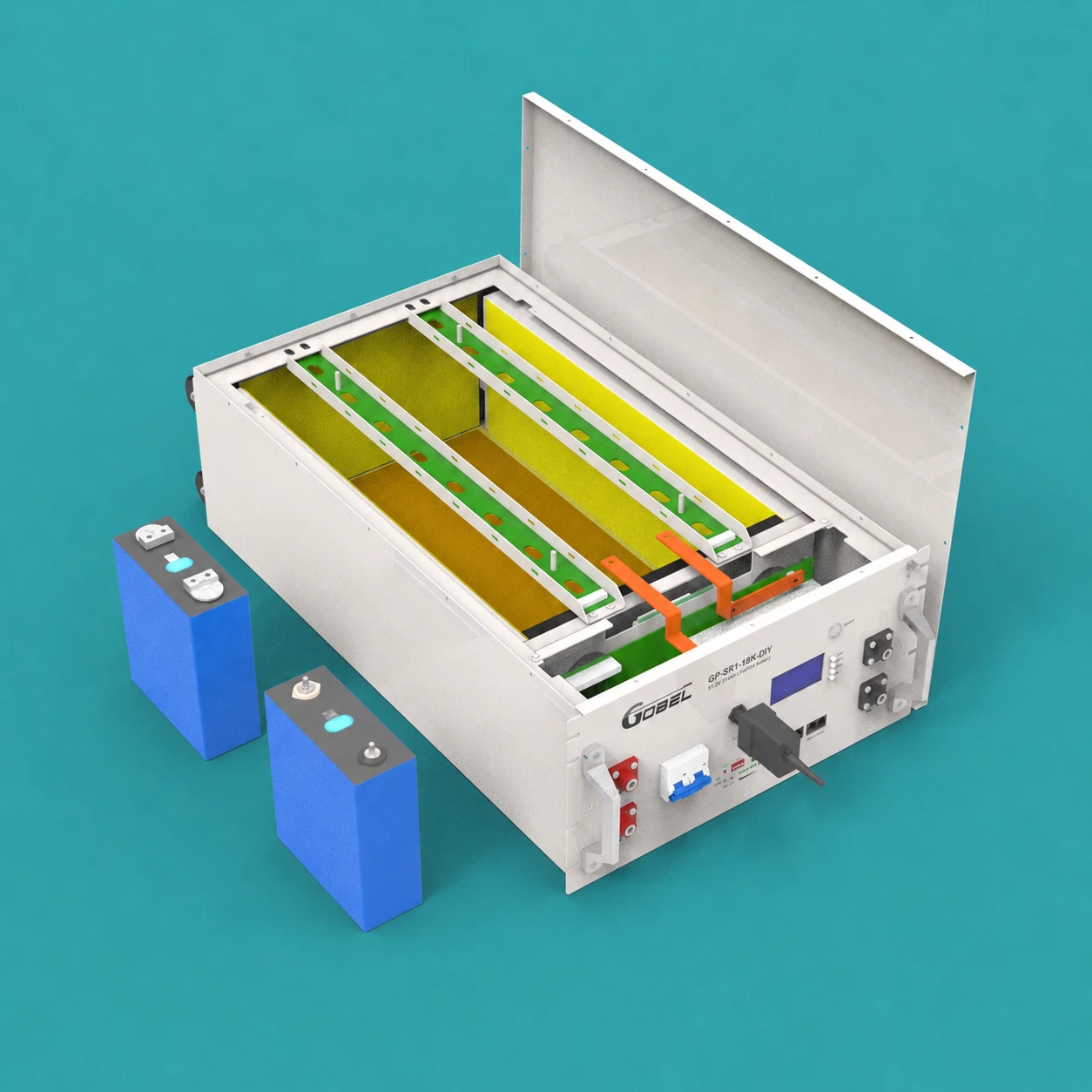

The kit.
Not the cells.
The kit brings the PC200 BMS, rack enclosure, and assembly hardware — everything you need to build a 51.2V battery, except the EVE 356Ah cells. Choose your own cells and keep the savings.
- PC200 BMS and 2A active balancer included
- Rack enclosure and assembly hardware included
- Designed for EVE 356Ah LiFePO4 cells (sold separately)
- Builds a 18.227 kWh / 51.2V system once cells are added
- Lower cost than a factory-assembled module

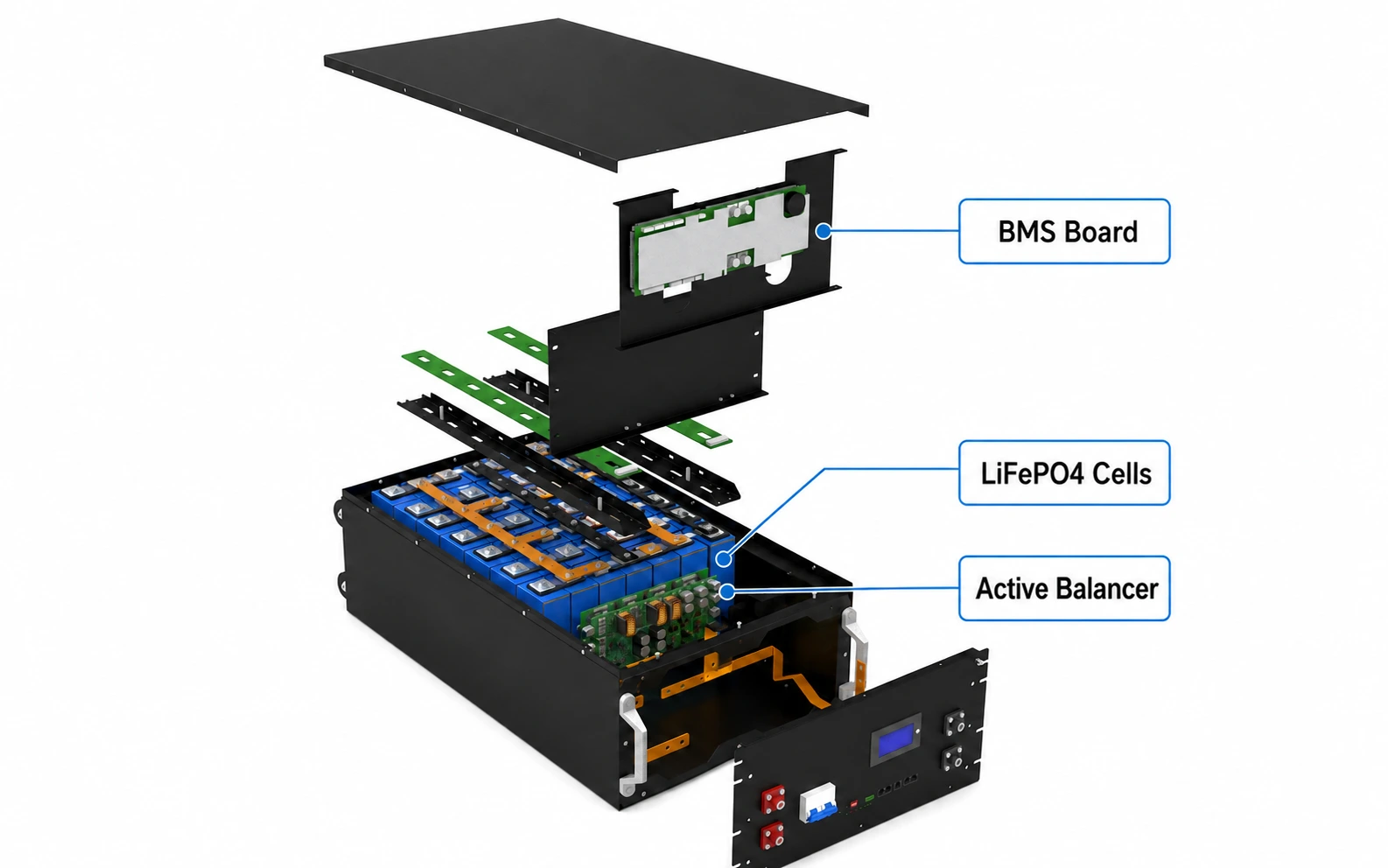

Our BMS.
Our support.
Unlike third-party BMS options, the PC200 BMS is developed and maintained entirely by Gobel Power. That means full firmware and software support, and a warranty we can actually stand behind.
- 200A BMS developed and maintained by Gobel Power
- Full firmware and software support — updates directly from us
- Comprehensive after-sales assistance
- 2A active balancer keeps cells matched
- Overcharge, over-discharge, and short-circuit protection

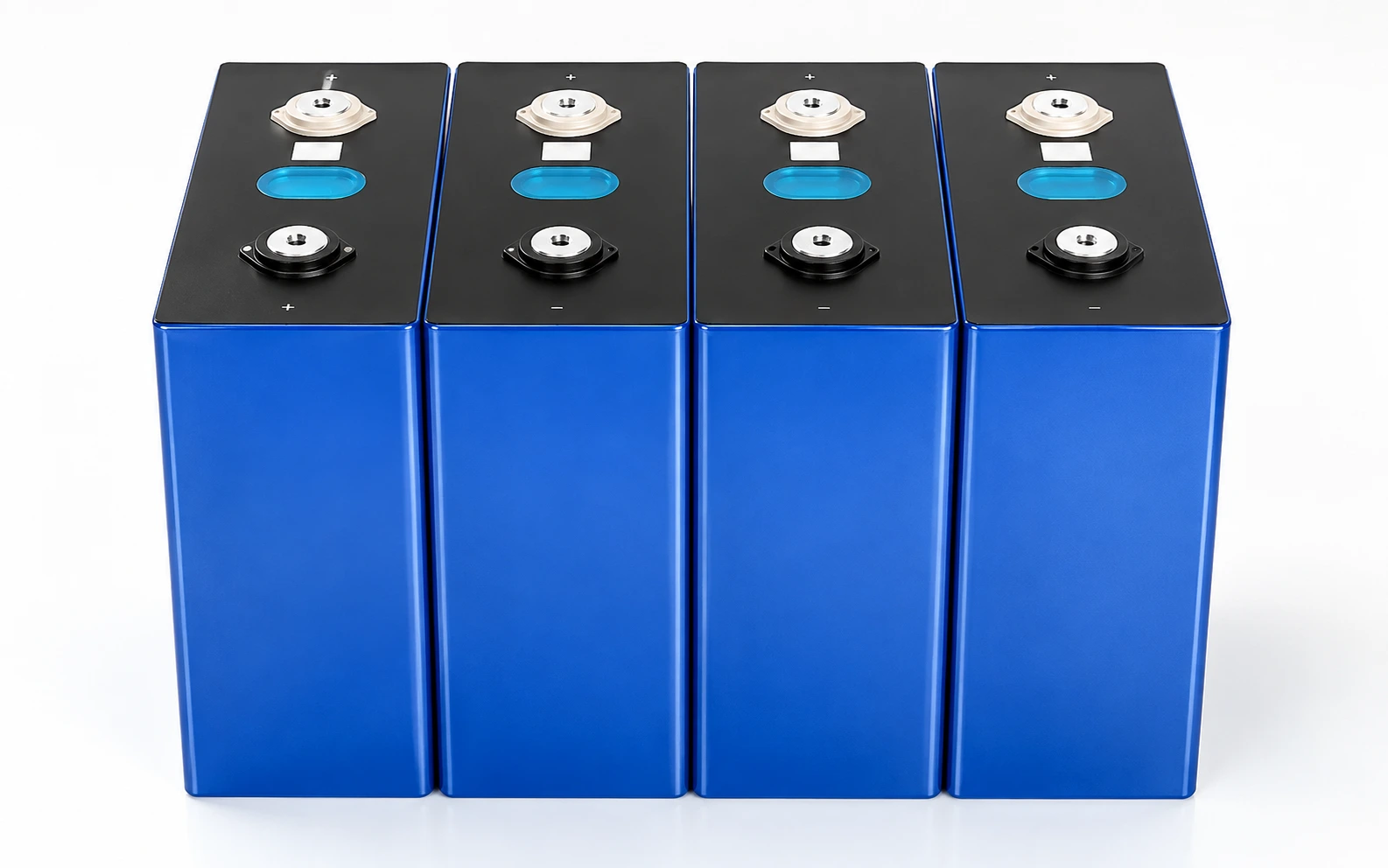

Engineered around
EVE cells.
The enclosure, busbars, and BMS parameters are sized specifically for EVE 356Ah prismatic LiFePO4 cells, so the pack assembles cleanly and performs as designed.
- Sized for EVE 356Ah prismatic LiFePO4 cells
- 16S1P configuration — 51.2V nominal
- 18.227 kWh usable energy per module
- 95% round-trip efficiency
- RS485 / RS232 / CAN / WiFi communication

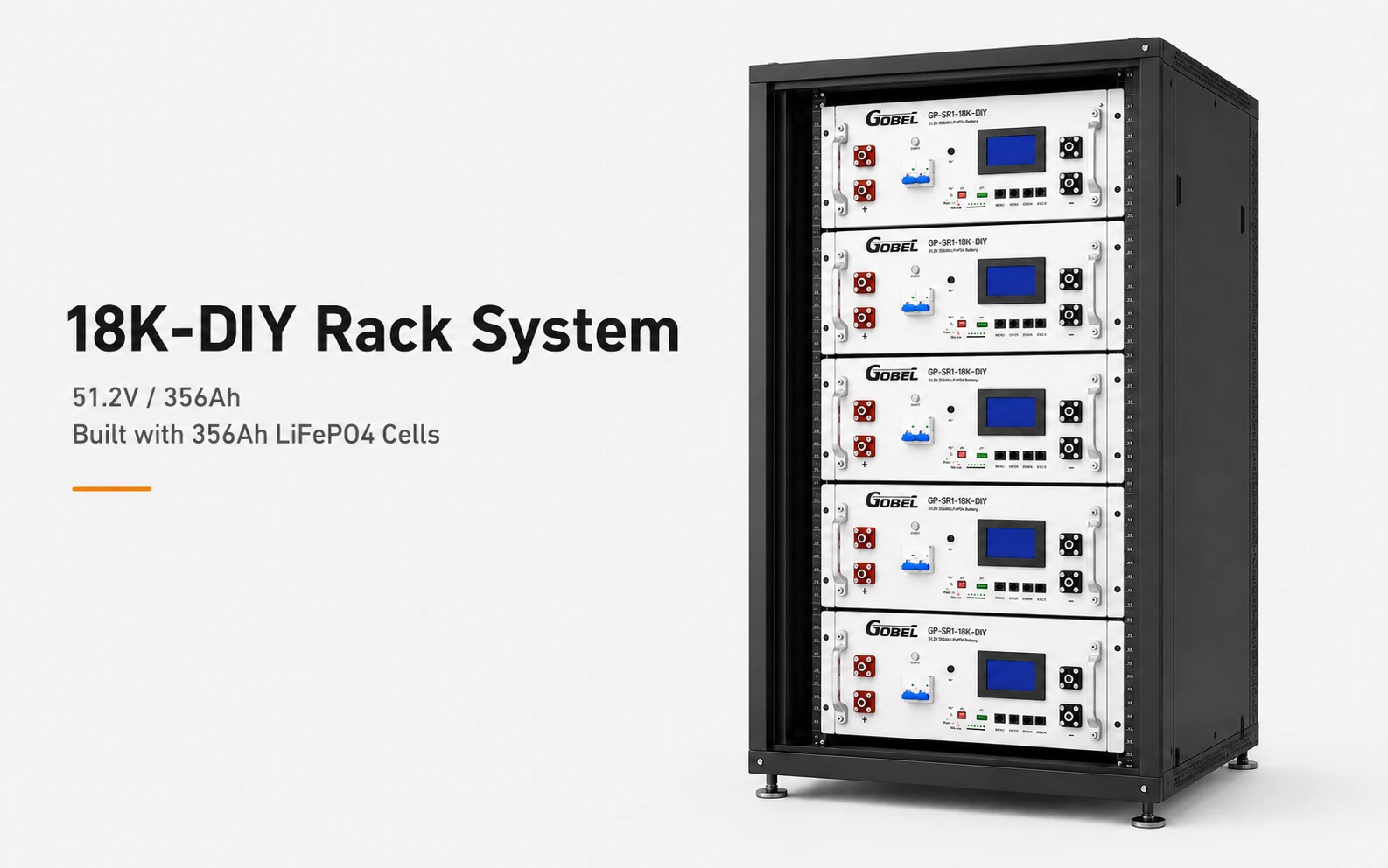

Start with one.
Grow to over 1 MWh.
Parallel up to 63 modules for 1148 kWh and 645 kW of continuous power. Rack it in a standard 19-inch footprint or stand it on the floor.
- Parallel up to 63 modules — 1148 kWh total
- 200A / 10 kW continuous per module, up to 12600A / 645 kW
- Floor or rack-mount installation
- 884.69 × 482.8 × 240 mm complete module footprint
Built for every
way you use it.
From home energy storage and solar self-consumption to off-grid independence and installer projects, the GP-SR1-PC200B-KIT-18K fits.
Power you build.
Support we stand behind.
Backup power, solar self-consumption, or full off-grid independence — the GP-SR1-PC200B-KIT-18K gives you the PC200 BMS and everything else you need to build a dependable LiFePO4 energy storage system around EVE 356Ah cells, backed by Gobel Power's full support.
- Model:
- GP-SR1-PC200B-KIT-18K
- BMS:
- GP-PC200B Included
- Cells:
- Not Included
- Circuit Breaker:
- Included
- Terminals:
- Included
- Cables:
- Included
- Expoxy Sheets:
- Included
- Screws:
- Included
- Heating Pad Max Power:
- 2A/120W
- WIFI Module:
- Need to buy seperately
- T-Fuse:
- Optional, 250A
- Compatible with:
- EVE 356Ah
Gobel Power was established in 2012 and is based in Shenzhen, China. Our products and services include wholesaling cylindrical & prismatic LiFePO4 and Lithium Ion battery cells, producing lithium battery packs and providing battery solutions. Our products are mainly used in solar energy storage, electric bikes, electric scooters, electric motorbike, boats, forklifts, sweepers, golf carts, and recreational vehicles.
-
