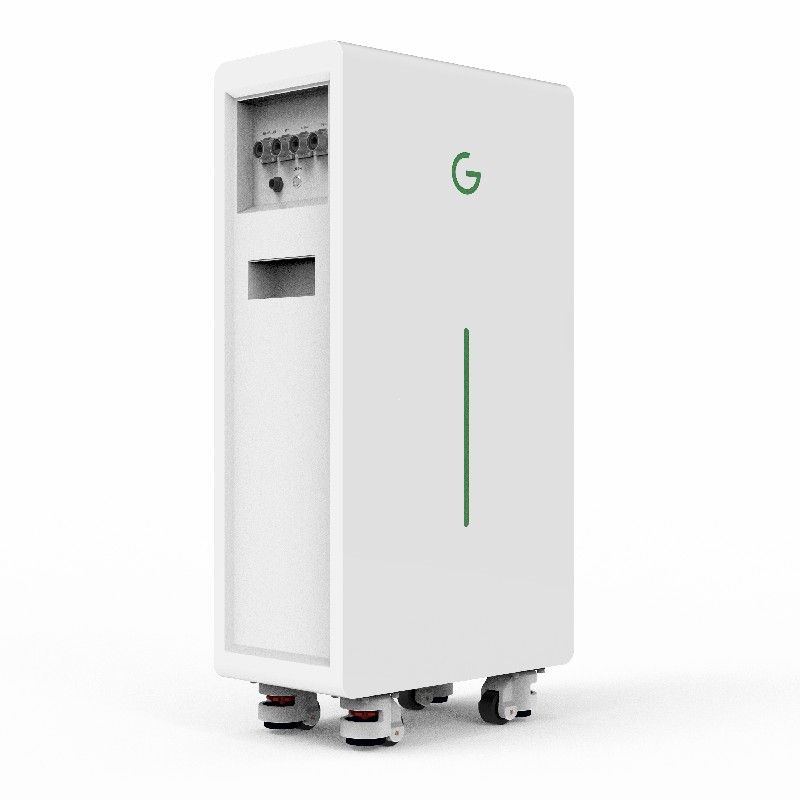

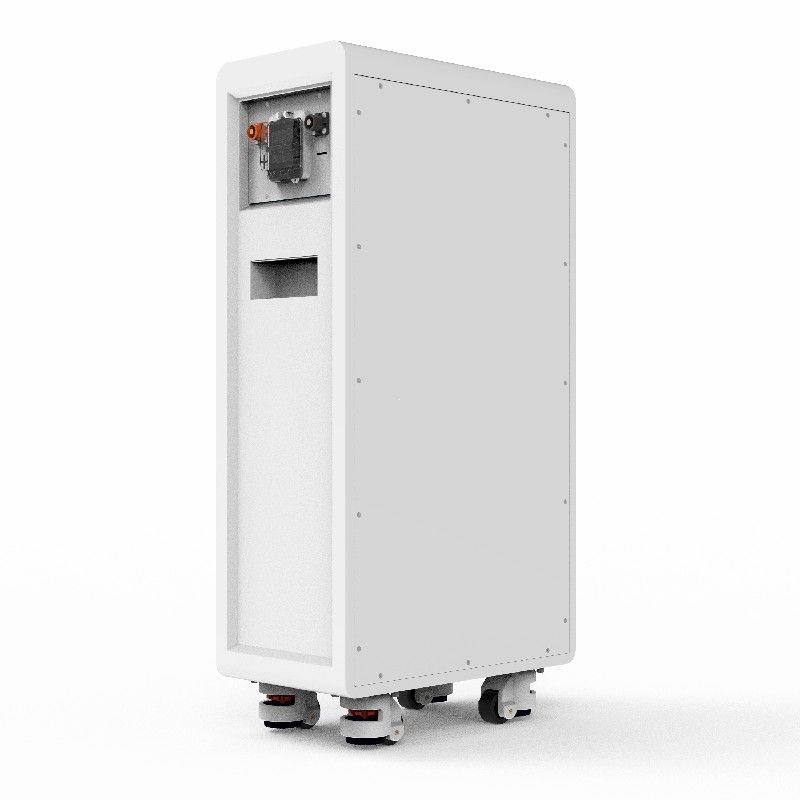

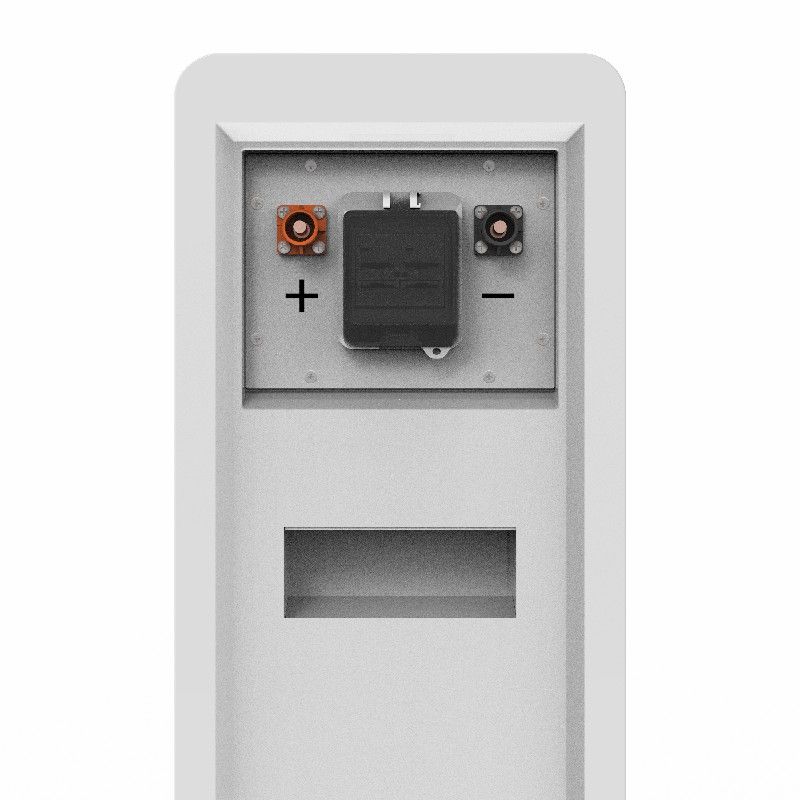

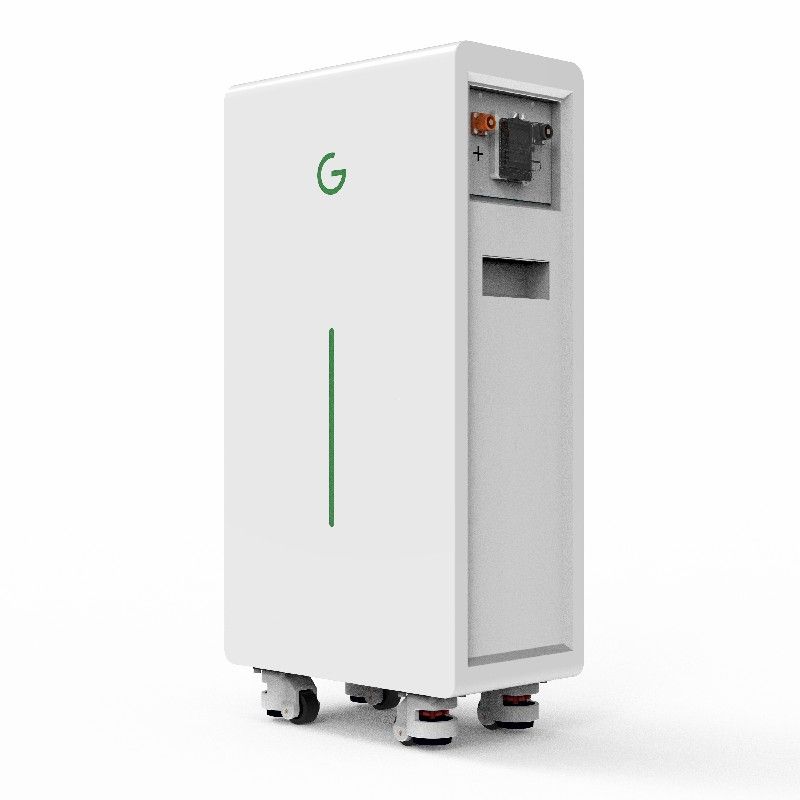

Gobel Power GP-SF1-314: 16.08kWh 51.2V 314Ah LiFePO4 Battery Module
Product Overview
The GP-SF1-314 is a professional-grade lithium iron phosphate (LFP) battery pack designed for seamless integration with external inverters. As a 51.2V low voltage system, it offers a high-capacity energy storage solution for residential and commercial applications.
- High Capacity: 16.08kWh usable energy per module.
- Advanced Safety: Structural and electrical safety design with an IP65 protection rating.
- Intelligent Management: Features a built-in 200A BMS and 2A active balancer.
Core Competitive Advantages
- Matched Performance: Programmatic cell sorting ensures perfectly matched 314Ah prismatic cells.
- Superior Balancing: Built-in 2A active balancing technology for extended battery life.
- Scalable Power: Connect up to 63 modules in parallel to reach a massive 1013.04kWh capacity.
- Global Compatibility: Compatible with leading inverter brands such as Victron, Deye, SMA, and Growatt.
- Outdoor Ready: IP65 enclosure protection allows for floor or outdoor installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Battery Model | GP-SF1-314 |
| Nominal Capacity | 314Ah |
| Nominal Energy | 16.08kWh |
| Nominal Voltage | 51.2 VDC |
| BMS / Active Balancer | 200A BMS / 2A Active Balancer |
| Dimensions (H/W/D) | 960*480*270 mm |
| Operating Temperature | -20°C to +60°C |

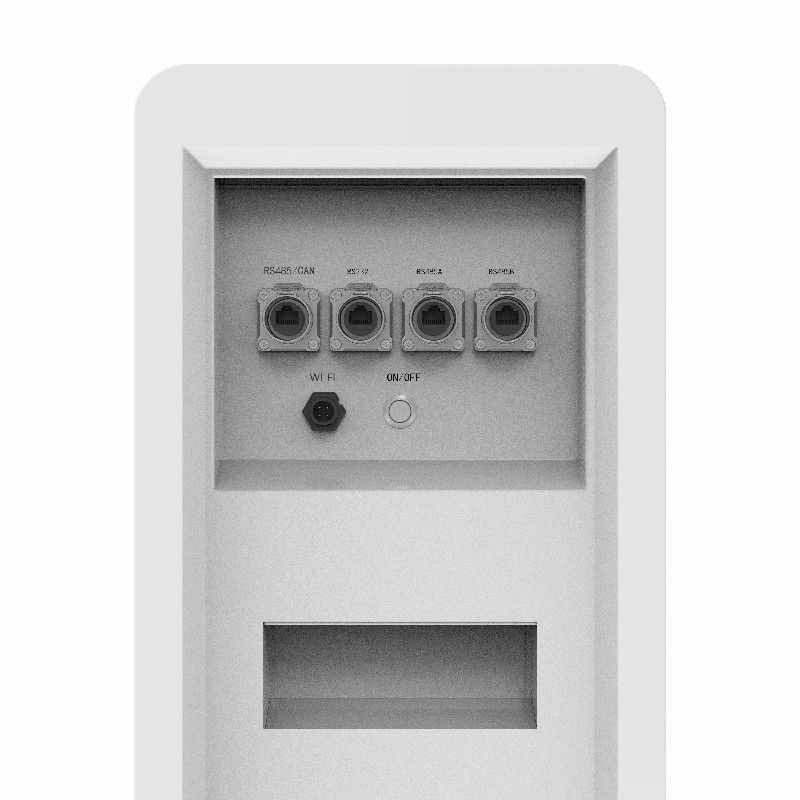

| Communication | CAN / RS485 / RS232 / WIFI |
| Certifications | CE / UN38.3 |
Compatible Inverter Brands
This system supports a wide range of industry-leading inverters:
Deye, GoodWe, Growatt, Victron, SMA, Schneider, Luxpower, Solis, Pylon, Voltronic, and more.
What's in the Box?
- 1 x GP-SF1-314 Battery Module
- 1 x RS232 Communication Cable (BMS to PC)
- 1 x Network Cable (BMS to Inverter)
Warranty: 5 to 10 Years
Applications: On-Grid, Off-Grid, and Backup Power Solutions
- Model:
- GP-SF1-PC314
- Battery Type:
- Prismatic LiFePO4
- Nominal Voltage:
- 51.2V
- Nominal Capacity:
- 314Ah
- Total Energy:
- 16.08kWh
- Battery Cells:
- 16S1P 314Ah Cells
- Max Charge Current:
- 150A
- Max Discharge Current:
- 150A
- Charge Cut-off Protect Voltage:
- 58.4V
- Disharge Cut-off Protect Voltage:
- 44V
- Communication Port:
- RS485, RS232, CAN，WIFI
- Parallel Connection:
- Max 63 Units in Parallels
- Series Connection:
- No
- Cycle life:
- 10000 Times
- Size:
- 960 * 480 * 270
- Weight:
- 125kg
- Cooling:
- Natural cooling
- Environment:
- Indoor/Outdoor
- Mounting options:
- Sever Rack, Floor
- Discharge Temperature (℃):
- -20℃~+60℃
- Charge Temperature (℃):
- -20℃~+60℃
- Inverter Compatibility:
- Yes
- Active Balancer:
- Built-in 2A Active Balancer
- Maximum Elevation:
- 4000m
- Warranty:
- 5-10 Years
48V/51.2V 280Ah/314Ah LiFePO₄ Batteries – Reliable Home Energy Backup Solutions
For homeowners seeking dependable and scalable energy storage, 48V/51.2V LiFePO₄ batteries with capacities of 280Ah and 314Ah offer robust solutions. These batteries are ideal for solar energy systems, off-grid living, and emergency power backup, providing long cycle life, high energy density, and enhanced safety features.
Key Features:
-
High Energy Capacity: With energy storage ranging from approximately 14.3kWh (280Ah) to 16.1kWh (314Ah), these batteries can power essential home appliances during outages or periods of low solar generation.
-
Long Cycle Life: Designed for durability, many models offer over 6,000 to 10,000 charge-discharge cycles, ensuring years of reliable service.
-
Advanced Battery Management Systems (BMS): Integrated BMS protect against overcharging, over-discharging, and short circuits, while also balancing cell voltages for optimal performance.
-
Flexible Installation Options: Available in wall-mounted, rack-mounted, and floor-standing designs to suit various space requirements and aesthetic preferences.
-
Scalability: Many systems support parallel connections, allowing users to expand their energy storage capacity as needed.
-
Emergency backup power storage
These LiFePO₄ batteries are engineered to meet the demands of modern energy storage, offering a combination of safety, efficiency, and longevity. Whether you're aiming to reduce reliance on the grid, ensure uninterrupted power supply, or maximize the use of renewable energy, these battery solutions provide a reliable foundation for your home's energy needs.
Gobel Power was established in 2012 and is based in Shenzhen, China. Our products and services include wholesaling cylindrical & prismatic LiFePO4 and Lithium Ion battery cells, producing lithium battery packs and providing battery solutions. Our products are mainly used in solar energy storage, electric bikes, electric scooters, electric motorbike, boats, forklifts, sweepers, golf carts, and recreational vehicles.
-
