- Model:
- GP-SRAT-48150
- Battery Type:
- Prismatic LiFePO4
- Nominal Voltage:
- 48V
- Nominal Capacity:
- 150Ah
- Total Energy:
- 7.2kWh
- Battery Cells:
- 15S1P 150Ah Cells
- Max Charge Current:
- 100A
- Max Discharge Current:
- 100A
- Charge Cut-off Protect Voltage:
- 54.75V
- Disharge Cut-off Protect Voltage:
- 40V
- Communication Port:
- RS485, RS232, DRY
- Parallel Connection:
- Max 16 Units in Parallels
- Series Connection:
- No
- Cycle life:
- 100% DOD 3000 Times
- Size:
- 442*190*540
- Weight:
- 55.5kg
- Cooling:
- Natural cooling
- Environment:
- Indoor
- Mounting options:
- Sever Rack
- Discharge Temperature (℃):
- -20℃~+50℃
- Charge Temperature (℃):
- -5℃ ~+45℃
- Maximum Elevation:
- 4000m
- Warranty:
- 5 Years

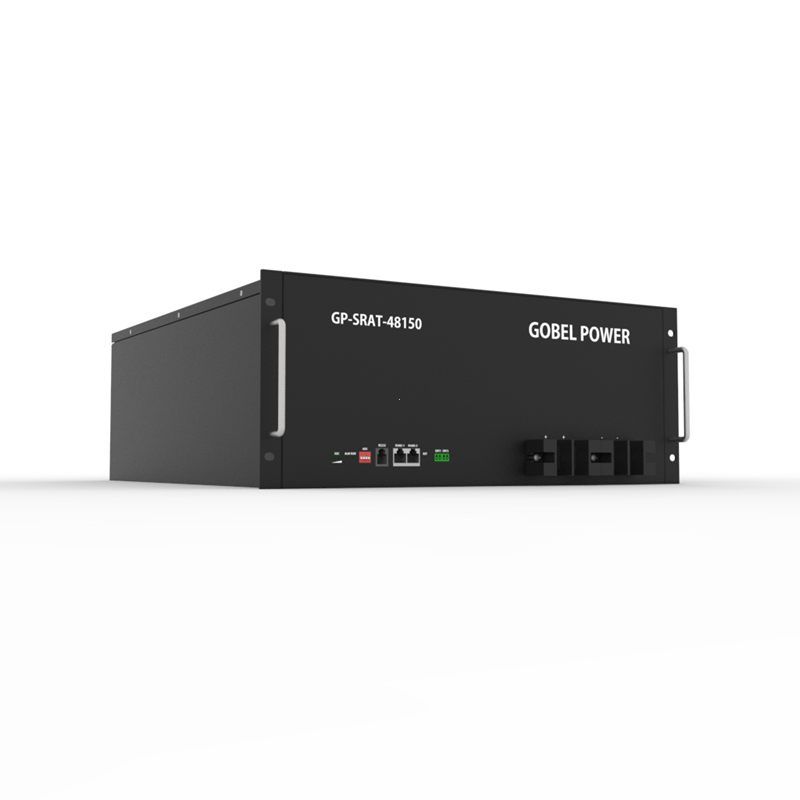

Gobel Power GP-SRAT-48150 Server Rack LiFePO4 Lithium Battery
Application Scenarios
â—† FTTB, FTTH, RRU, BBU and other small mobile communication fields
â—† Suitable for communication base stations, central computer rooms and other communication energy storage
scenarios
Advantages
✓ High energy density, reduced load bearing and footprint
✓ High current charge and discharge performance: continuous 1C discharge
✓ Long cycle life (3 times that of ordinary batteries), reduced operation and maintenance costs
✓ Excellent constant power discharge performance
✓ Wide operating temperature range
✓ Accurate detection of battery SOC and SOH by BMS
✓ Multi Anti-Theft Function Optional. GPS, Gyroscope, Communication BMS Lock, etc.
Certifications
â—† ISO9001
â—† ISO14001
â—† CE
â—† UL
â—† UN38.3
Gobel Power was established in 2012 and is based in Shenzhen, China. Our products and services include wholesaling cylindrical & prismatic LiFePO4 and Lithium Ion battery cells, producing lithium battery packs and providing battery solutions. Our products are mainly used in solar energy storage, electric bikes, electric scooters, electric motorbike, boats, forklifts, sweepers, golf carts, and recreational vehicles.
-
