CATL 3.2V 271Ah LiFePO4 Lithium Battery Cell

Authentic LiFePO4 Battery Cell

Model: CATL271

  • Wholesale, OEM Service
  • Private Label Service
  • Physical and Electrical Design Service
  • Complete Solutions for Packing Factory
  • Full Documents for Export & Import

  • In Stock , Ship to US
    Like
    236

    Ships to US and Other Countries.

    Buy Together

    CATL 3.2V 271Ah LiFePO4 Lithium Battery Cell

    Packing Factory Solutions Contact Us Cooperation with Factories Worldwide
    Specifications (Verified)
    Gobel Power technician has verified the accuracy of following technical parameters according to manufacturer's data sheet. Gobel Power gurrantees the product is authentic.

    Manufacturer:
    CATL
    Model No.:
    CATL271
    Typical Voltage:
    3.2V
    Typical Capacity:
    271Ah
    AC Impedance Resistance:
    0.14mΩ
    Life Cycle:
    Standard Charge/Discharge Current:
    0.5C/0.5C
    Standard Charge Cut-off Voltage:
    3.65V
    Standard Discharge Cut-off Voltage:
    2.5V (>0℃) / 2.0V (<0℃)
    Continuous Charge/Discharge Current:
    1C/1C
    Pulse Charge/Discharge Current (30s):
    3C/3C (60s)
    Recommended SOC Window:
    10%~90%
    Charging Working Temperature:
    0℃~60℃
    Discharging Working Temperature:
    -30℃~60℃
    Self Discharging Rate:
    ≤3.5% per Month
    Short Term Storage Temperature (< 1 Month):
    -20℃~45℃
    Long Term Storage Temperature (< Year):
    -20℃~25℃
    Storage Moisture:
    <95%
    Cell Dimension:
    203.7*173.9*71.57mm
    Cell Weight:
    5.47kg
    Certification:
    UL, MSDS, UN38.3, CE
    Manufacturer Introduction

    CATL is a global leader of new energy innovative technologies, committed to providing premier solutions and services for new energy applications worldwide. CATL began its overseas journey by establishing Contemporary Amperex Technology GmbH (CATG) in Munich, Germany, in 2014. Four years later, CATL founded Contemporary Amperex Technology Thuringia GmbH (CATT) in Erfurt, Thuringia, marking its first global expansion in EV battery manufacturing. CATL is bringing its state-of-the-art technologies to the heart of Europe by localizing innovative battery technology to drive the growth of the region′s EV industry. As a dynamic member of the Thuringian community, CATT is contributing to the concerted efforts of building a sustainable Europe. Thanks to features such as the high reliability, long service life and high energy efficiency of CATL's battery systems, "renewable energy + energy storage" has more advantages in cost per kWh in the whole life cycle.
    Shipping & Payment

    Sea Freight shipping for all batteries Free Tax, we have paid tax for you Spareparts can be shipped by UPS/DHL
    Paypal Credit Card Bank Transfer
    Related Downloads

    Wholesale or OEM? Chat with Our Experts in WhatApp
    Model Summary

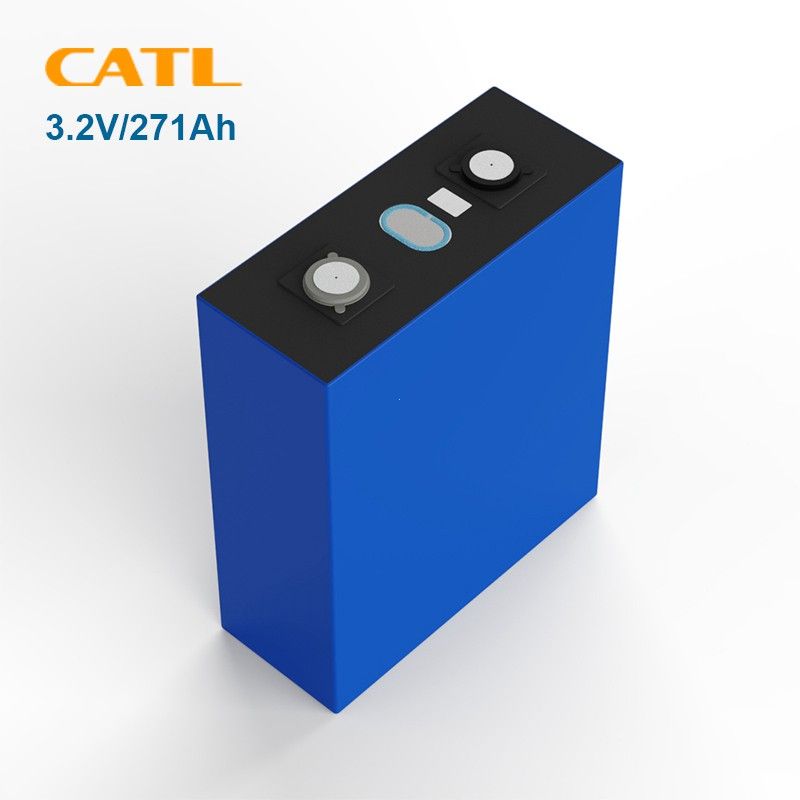

    CATL 3.2V 271Ah LiFePO4 Battery Cell

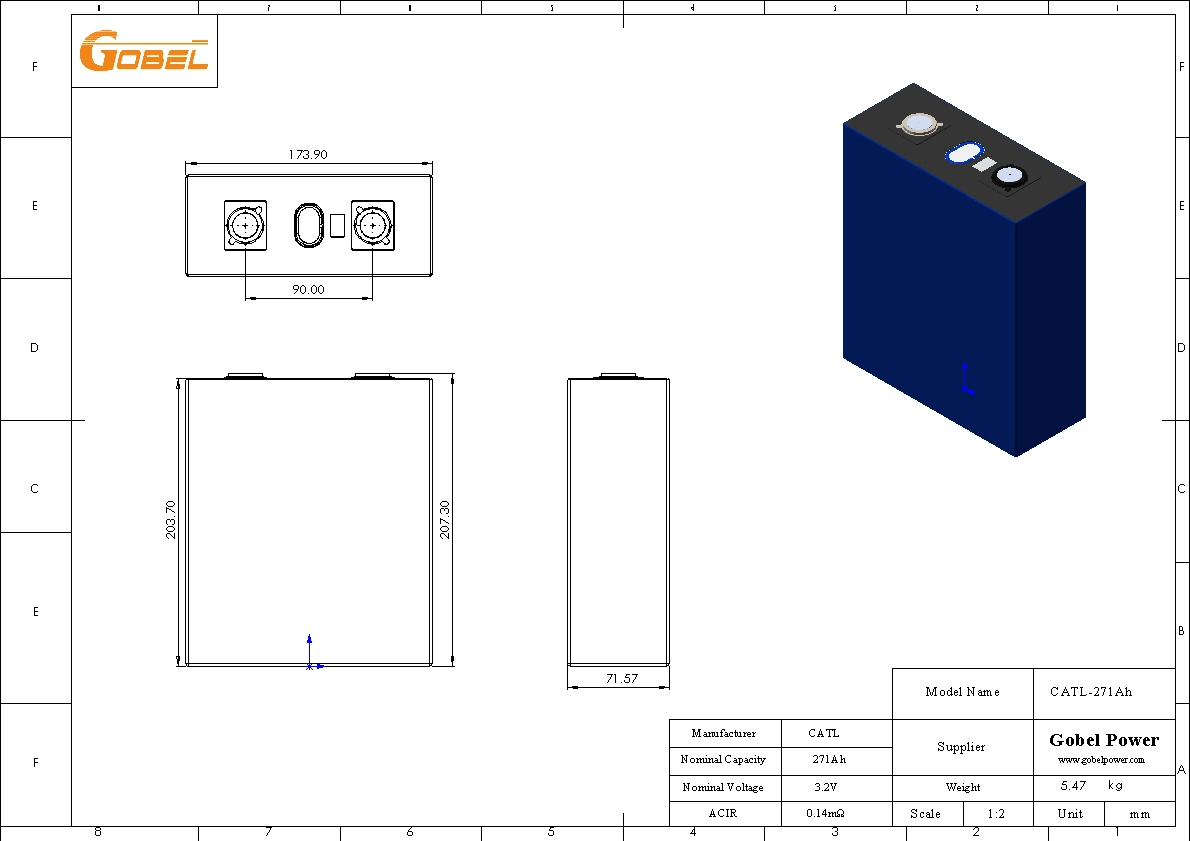

    CATL 271Ah LiFePO4 Battery Cell CAD Drawing with Dimensions and Main Parameters

    CATL 271Ah LiFePO4 Battery Cell CAD Drawing with Dimensions and Main Parameters

    About Us

    Gobel Power was established in 2012 and is based in Shenzhen, China. Our products and services include wholesaling cylindrical & prismatic LiFePO4 and Lithium Ion battery cells, producing lithium battery packs and providing battery solutions. Our products are mainly used in solar energy storage, electric bikes, electric scooters, electric motorbike, boats, forklifts, sweepers, golf carts, and recreational vehicles.
