CALB 3.2V 230Ah LiFePO4 Lithium Battery Cell

Authentic LiFePO4 Battery Cell

Model: CALB230

  • Wholesale, OEM Service
  • Private Label Service
  • Physical and Electrical Design Service
  • Complete Solutions for Packing Factory
  • Full Documents for Export & Import

  • In Stock , Ship to US
    Like
    113

    Ships to US and Other Countries.

    Buy Together

    CALB 3.2V 230Ah LiFePO4 Lithium Battery Cell

    Packing Factory Solutions Contact Us Cooperation with Factories Worldwide
    Specifications (Verified)
    Gobel Power technician has verified the accuracy of following technical parameters according to manufacturer's data sheet. Gobel Power gurrantees the product is authentic.

    Manufacturer:
    CALB
    Model No.:
    CALB230
    Typical Voltage:
    3.2V
    Typical Capacity:
    230Ah
    AC Impedance Resistance:
    0.3mΩ
    Life Cycle:
    4000
    Standard Charge/Discharge Current:
    Standard Charge Cut-off Voltage:
    3.65V
    Standard Discharge Cut-off Voltage:
    2.5V
    Continuous Charge/Discharge Current:
    1C/1C
    Pulse Discharge Current:
    2C/3C
    Recommended SOC Window:
    10%~90%
    Charging Working Temperature:
    0℃~55℃
    Discharging Working Temperature:
    -20℃~55℃
    Self Discharging Rate:
    Short Term Storage Temperature (< 1 Month):
    -40℃~45℃
    Long Term Storage Temperature (< Year):
    -20℃~35℃
    Storage Moisture:
    <95%
    Cell Dimension (L*W*H):
    173.4*53.7*207.2mm
    Cell Weight:
    4.17kg
    Certification:
    UL, MSDS, UN38.3, CE
    Manufacturer Introduction

    CALB (Zhong Hang) is the world's leading new energy technology enterprise, committed to becoming an energy value creator, providing the most valuable power and energy storage battery product solutions and high-quality energy storage battery products for the world's outstanding automobile companies, energy storage and special application markets. New energy full life cycle services. Taking "long life, high energy density, high safety, full climate, standardization, and strong scalability" as the core product competitiveness, it fully covers the fields of pure electric buses, commuter vehicles, logistics vehicles, construction machinery, etc., and has a wide range of models. It is applied to multiple application scenarios such as high temperature and high humidity, remote plateau, high cold and low pressure, and the delivery volume is industry-leading. Taking "high safety, long life, high economic efficiency, and high integration rate" as the core product competitiveness, we provide customers with energy storage integrated system services that meet various needs, fully covering power generation side wind and solar storage, grid side peak regulation and frequency regulation, user Application fields such as side shaving peak and valley filling, backup power supply and marine energy storage. As the first batch of energy storage demonstration projects in the country, the energy storage products delivered by AVIC Lithium have been widely used in various scenarios such as offshore islands, remote plateaus, high cold and low pressure, and the total installed capacity of energy storage projects leads the industry.
    Shipping & Payment

    Sea Freight shipping for all batteries Free Tax, we have paid tax for you Spareparts can be shipped by UPS/DHL
    Paypal Credit Card Bank Transfer
    Related Downloads

    Wholesale or OEM? Chat with Our Experts in WhatApp
    Model Summary

    CALB 3.2V 230Ah LiFePO4 Battery Cell

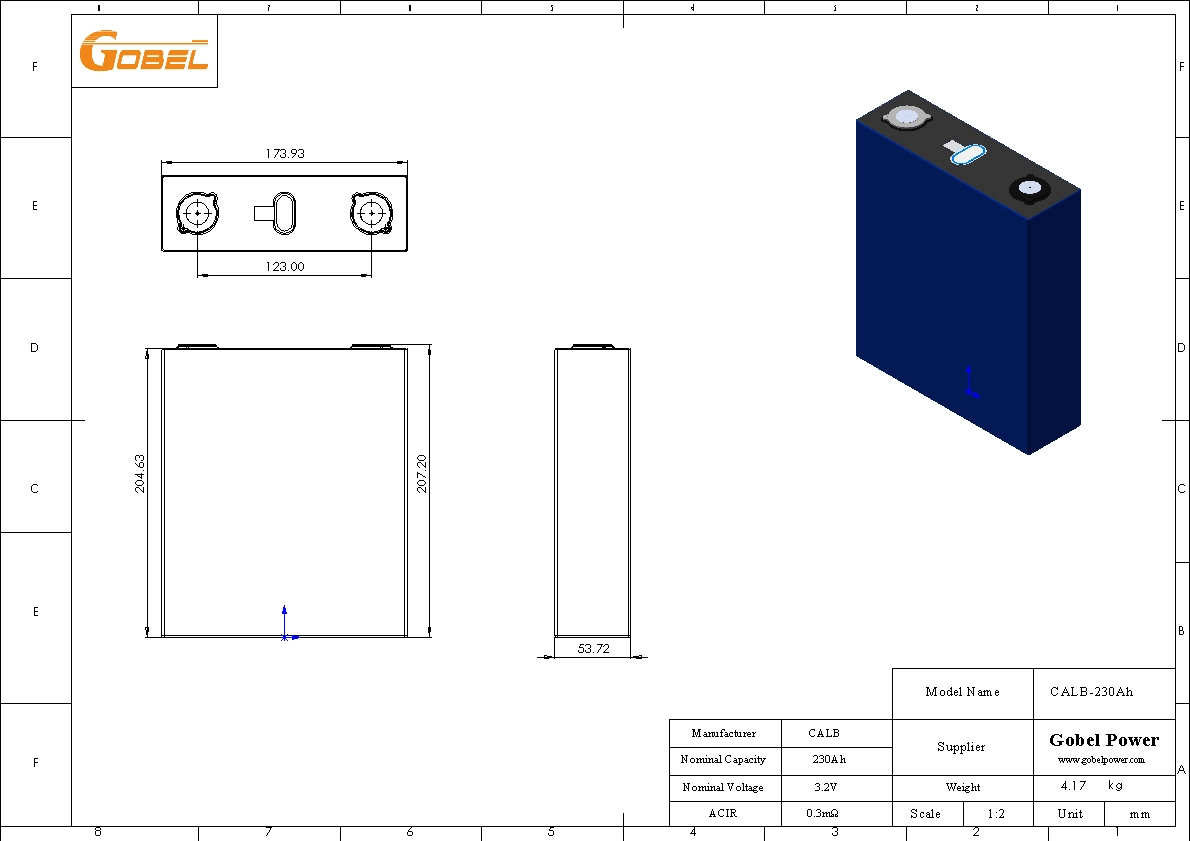

    CALB 230Ah LiFePO4 Battery Cell CAD Drawing with Dimensions and Main Parameters

    CALB 230Ah LiFePO4 Battery Cell CAD Drawing with Dimensions and Main Parameters
