Cells Inside: Brand new EVE 230Ah cells with 3,500 times cycles life
2 Mounting Method: Standard 6U server rack or on floor
BMS: 150A professional ESS BMS compatible with most inverters
Communication Ports: RS485, CAN, RS232
Active Balance: 5A Active Balance
Compressed Cells: noval design able to impose 300kgf on cells
Fast Fuse: 150A
Circut Breaker: 200A
Wheels: Easily Move
Compatible Inverter List
CAN Port:
1. Coslink
2. Deye
3. Dynes
4. Growatt_LV
5. Goodwe
6. LuxPowerTec
7. MegaRevo
8. Must
9. Pylontech_LV
10. SMA
11. SoFar
12. TBB
13. TGPro
14. Victron
15. WTS
RS485 Port:
1. Deye
2. Growatt
3. ModbusC1636
4. Pylontech
5. SAJ
6. Voltronic_pl
7. YD1363_PC
- Model:
- GP-SR2-RN150
- Battery Type:
- Prismatic LiFePO4
- Nominal Voltage:
- 51.2V
- Nominal Capacity:
- 230Ah
- Total Energy:
- 11.8kWh
- Battery Cells:
- 16S1P 230Ah Cells
- Max Charge Current:
- 140A (7.16kW)
- Max Discharge Current:
- 150A (7.68kW)
- Charge Cut-off Protect Voltage:
- 55.2V
- Disharge Cut-off Protect Voltage:
- 42V
- Communication Port:
- RS485, RS232, CAN
- Parallel Connection:
- Max 15 Units in Parallels
- Series Connection:
- No
- Cycle life:
- 3500 Times

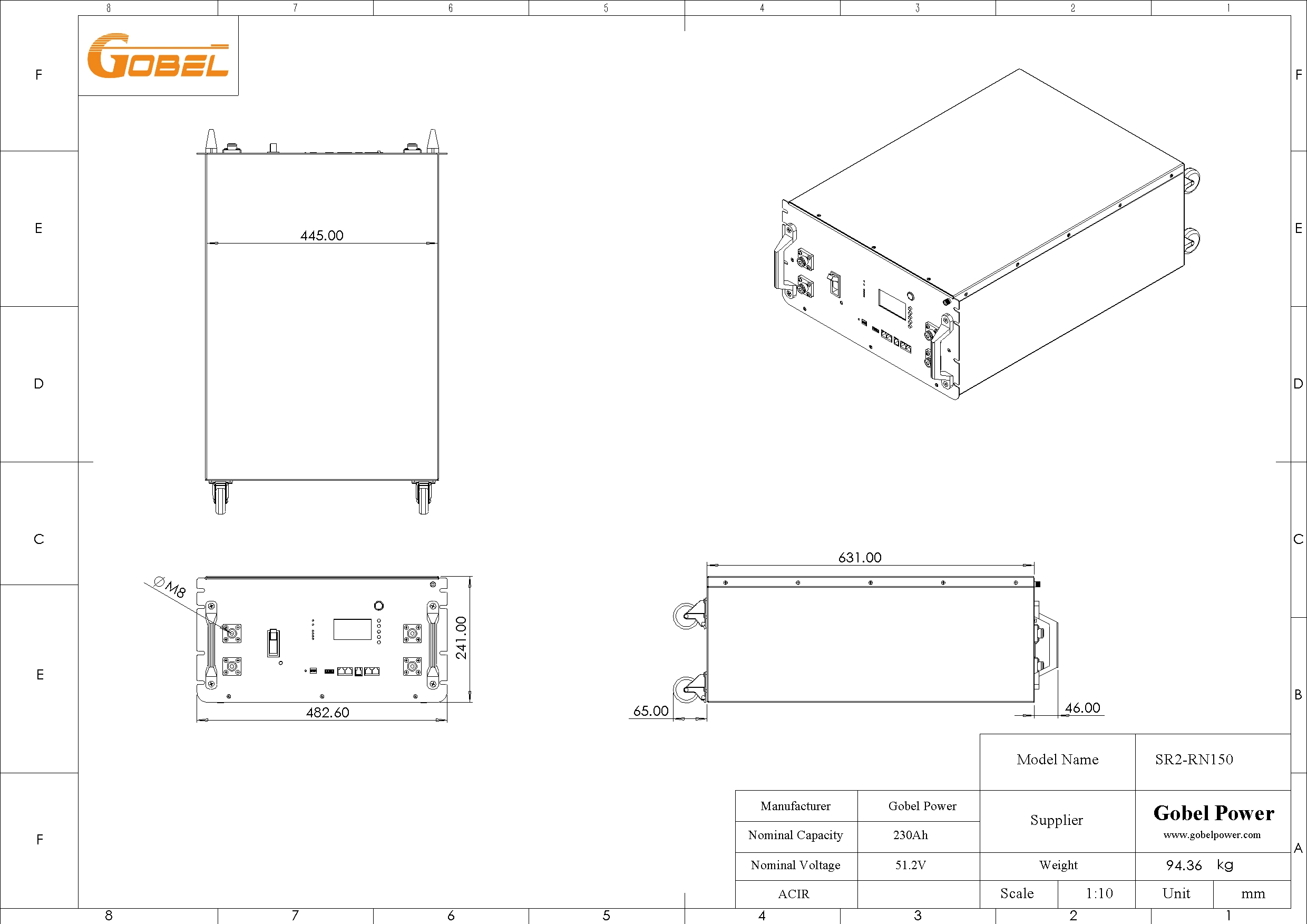

- Size:
- 482.6*742*241
- Weight:
- 95kg
- Cooling:
- Natural cooling
- Environment:
- Indoor
- Mounting options:
- Sever Rack, Floor
- Discharge Temperature (℃):
- -30℃~+60℃
- Charge Temperature (℃):
- 0℃ ~+60℃
- Inverter Compatibility:
- Yes
- Maximum Elevation:
- 4000m
- Warranty:
- 10 Years
Gobel Power GP-SR1-HC280-RN Server Rack LiFePO4 Lithium Battery
Application Scenarios
* Home energy storage
* FTTB, FTTH, RRU, BBU and other small mobile communication fields
* Suitable for communication base stations, central computer rooms and other communication energy storage scenarios
Advantages
* High energy density, reduced load bearing and footprint
* High current charge and discharge performance: about continuous 1C discharge
* Long cycle life (3 times that of ordinary batteries), reduced operation and maintenance costs
* Excellent constant power discharge performance
* Wide operating temperature range
* Accurate detection of battery SOC and SOH by BMS
* Multi Anti-Theft Function Optional. GPS, Gyroscope, Communication BMS Lock, etc.
Certifications
* ISO9001
* ISO14001
* CE
* UL
* UN38.3
Gobel Power was established in 2012 and is based in Shenzhen, China. Our products and services include wholesaling cylindrical & prismatic LiFePO4 and Lithium Ion battery cells, producing lithium battery packs and providing battery solutions. Our products are mainly used in solar energy storage, electric bikes, electric scooters, electric motorbike, boats, forklifts, sweepers, golf carts, and recreational vehicles.
-
