JKBMS 51.2V 15kWh 280Ah LiFePO4 Server Rack Battery

Work with Victron Cerbo GX VenusOS devices

Model: GP-SR1-HC280-JK150

US$ 0.14~0.28/Wh
  • Wholesale, OEM Service
  • Private Label Service
  • Physical and Electrical Design Service
  • Complete Solutions for Packing Factory
  • Full Documents for Export & Import

  • Ships to US and Other Countries.

    Buy Together

    JKBMS 51.2V 15kWh 280Ah LiFePO4 Server Rack Battery

    Packing Factory Solutions Contact Us Cooperation with Factories Worldwide

    JK BMS can be connected with Victron Cerbo GX or other VenusOS devices by FT232RL USB-RS485 cable which is supplied with the battery.

    Check the project here: https://github.com/Louisvdw/dbus-serialbattery



    JKBMS VenusOS USB RS485 Cable



    Specifications (Verified)
    Gobel Power technician has verified the accuracy of following technical parameters according to manufacturer's data sheet. Gobel Power gurrantees the product is authentic.

    Model:
    GP-SR1-HC280-JK150
    Battery Type:
    Prismatic LiFePO4
    Nominal Voltage:
    51.2V
    Nominal Capacity:
    280Ah
    Total Energy:
    14.34kWh
    Battery Cells:
    16S1P 280Ah Cells
    Max Charge Current:
    150A/200A
    Max Discharge Current:
    150A/200A
    Charge Cut-off Protect Voltage:
    58.4V
    Disharge Cut-off Protect Voltage:
    40V
    Communication Port:
    RS485
    Parallel Connection:
    No
    Series Connection:
    No
    Cycle life:
    10000 Times
    Size:
    482.6*771.5*241
    Weight:
    118kg
    Cooling:
    Natural cooling
    Environment:
    Indoor
    Mounting options:
    Sever Rack, Floor
    Discharge Temperature (℃):
    -30℃~+60℃
    Charge Temperature (℃):
    0℃ ~+60℃
    Inverter Compatibility:
    Yes
    Maximum Elevation:
    4000m
    Warranty:
    10 Years
    Shipping & Payment

    Sea Freight shipping for all batteries Free Tax, we have paid tax for you Spareparts can be shipped by UPS/DHL
    Paypal Credit Card Bank Transfer
    Related Downloads

    CAD Drawing
    Datasheet
    Wholesale or OEM? Chat with Our Experts in WhatApp
    Model Summary

    51.2V 280Ah 15kWh LiFePO4 Battery CAD Drawing

    51.2V 280Ah 15kWh LiFePO4 Battery

    51.2V 280Ah 15kWh LiFePO4 Battery

    51.2V 280Ah 15kWh LiFePO4 Battery

    51.2V 280Ah 15kWh LiFePO4 Battery

    51.2V 280Ah 15kWh LiFePO4 Battery

    51.2V 280Ah 15kWh LiFePO4 Battery

    51.2V 280Ah 15kWh LiFePO4 Battery

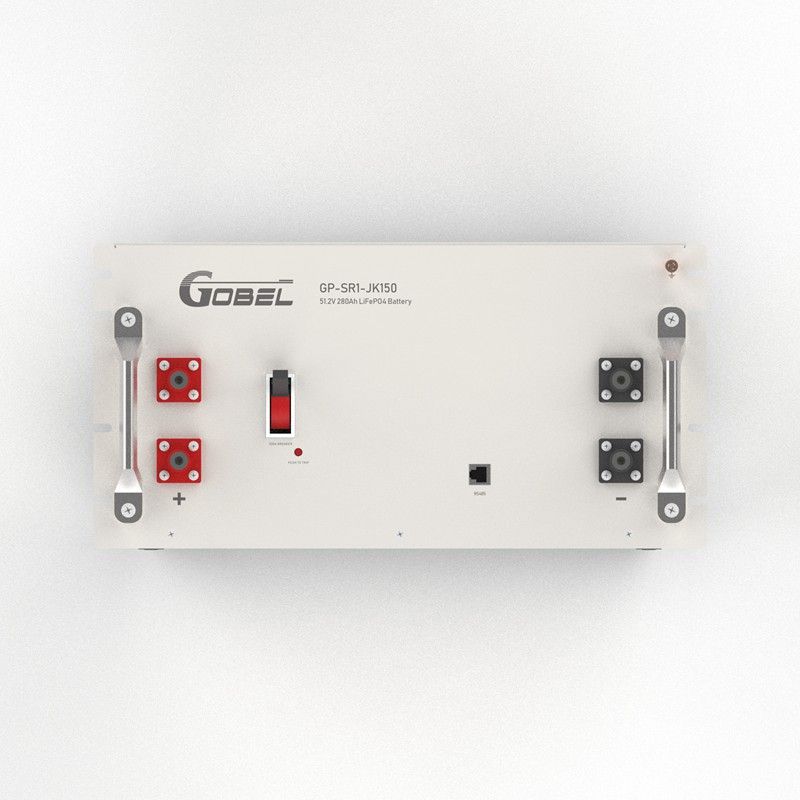

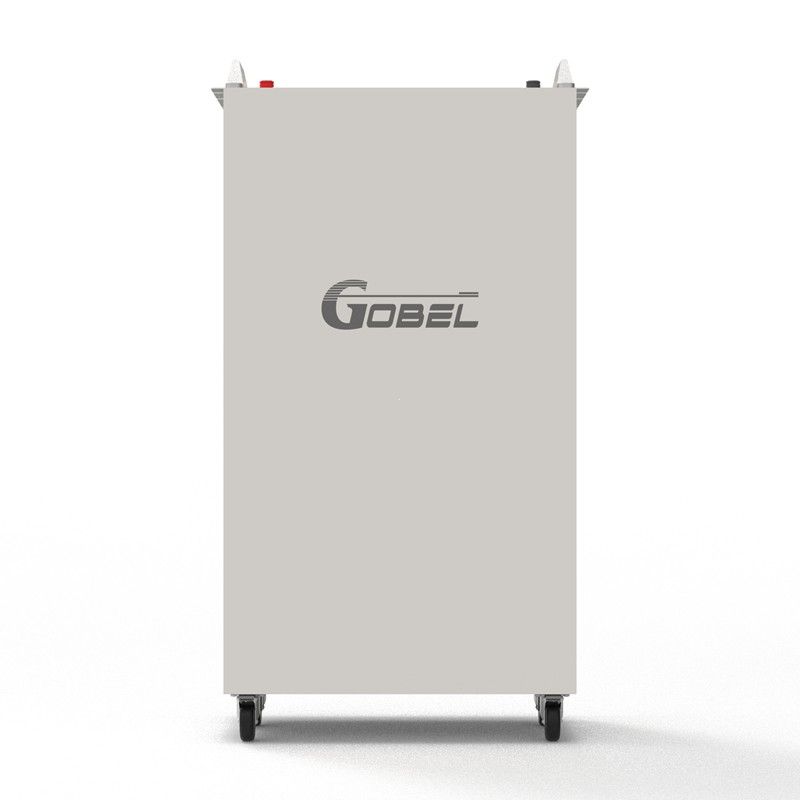

    Gobel Power GP-SR1-HC280-JK150 Server Rack LiFePO4 Lithium Battery

    Application Scenarios

    * Home energy storage

    * FTTB, FTTH, RRU, BBU and other small mobile communication fields

    * Suitable for communication base stations, central computer rooms and other communication energy storage scenarios

    Advantages

    * High energy density, reduced load bearing and footprint

    * High current charge and discharge performance: about continuous 1C discharge

    * Long cycle life (3 times that of ordinary batteries), reduced operation and maintenance costs

    * Excellent constant power discharge performance

    * Wide operating temperature range

    * Accurate detection of battery SOC and SOH by BMS

    * Multi Anti-Theft Function Optional. GPS, Gyroscope, Communication BMS Lock, etc.

    Certifications

    * ISO9001

    * ISO14001

    * CE

    * UL

    * UN38.3

    About Us

    Gobel Power was established in 2012 and is based in Shenzhen, China. Our products and services include wholesaling cylindrical & prismatic LiFePO4 and Lithium Ion battery cells, producing lithium battery packs and providing battery solutions. Our products are mainly used in solar energy storage, electric bikes, electric scooters, electric motorbike, boats, forklifts, sweepers, golf carts, and recreational vehicles.
