1. Friendly Environment Battery : LiFePo4
2. Calender life: 10 years
3. Superior “Usable” Capacity
4. Extended Cycle Life
5. Low self discharge
6. Fast & Efficient Charging
7. Very Little Wasted Energy
8. NO maintenance requirements
9. Size & Weight Advantages
10. In parallel ≤ 8 units
Matched Inverter: SMA, Studer Victron,Growatt, Sofar, Deye, Sungrow,Solis, Solax Goodwe,Voltronics, Sorotech etc.
- Model:
- GP-PW-16S102
- Battery Type:
- Prismatic LiFePO4
- Nominal Voltage:
- 51.2V
- Nominal Capacity:
- 100Ah
- Total Energy:
- 5.12kWh

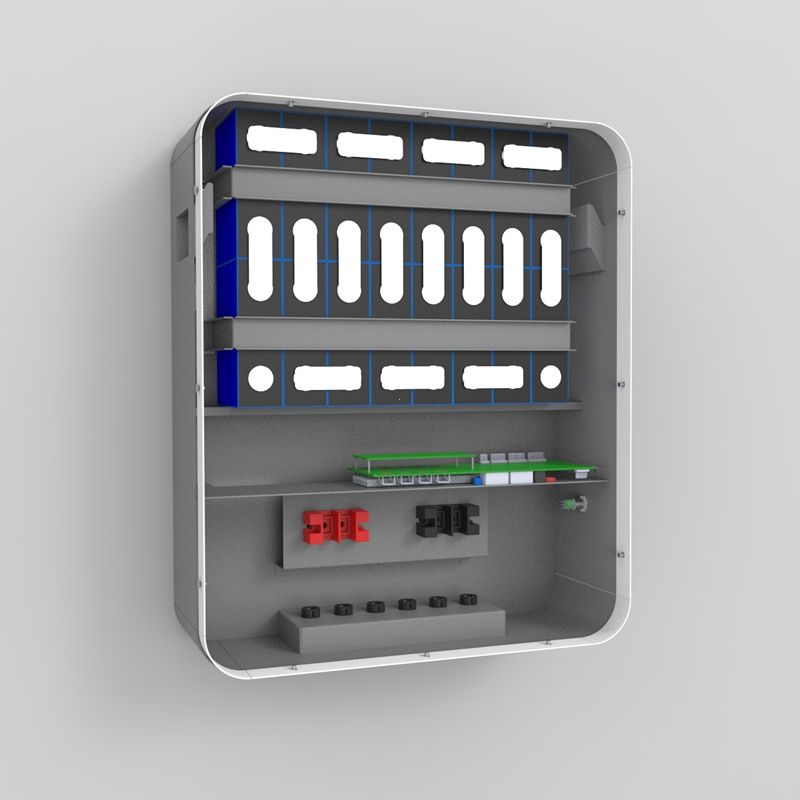

- Battery Cells:
- 16S1P 100Ah Cells
- Max Charge Current:
- 100A
- Max Discharge Current:
- 100A
- Charge Cut-off Protect Voltage:
- 58.4V
- Disharge Cut-off Protect Voltage:
- 40V
- Communication Port:
- CAN, RS485, RS232
- Parallel Connection:
- Max 8 Units in Parallels
- Series Connection:
- No
- Cycle life:
- 100% DOD 3000 Times
- L*W*H (mm):
- 600*510*173
- Net Weight (kg):
- 48kg
- Cooling:
- Natural cooling
- Environment:
- Indoor

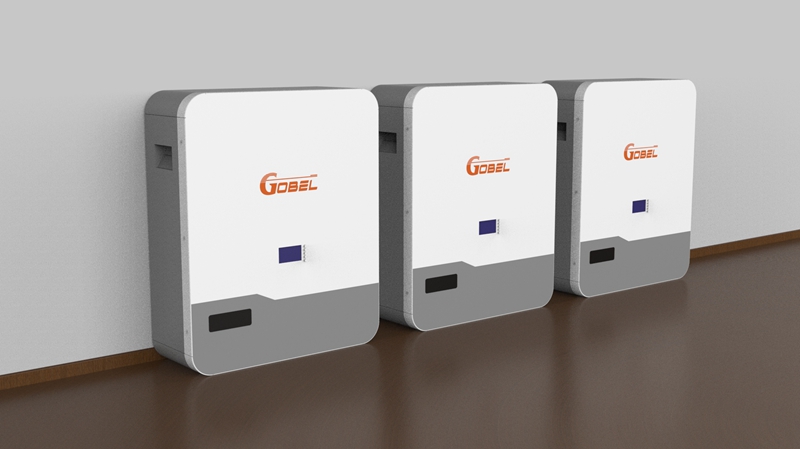

- Mounting options:
- Floor or wall mount
- Discharge Temperature (℃):
- -10℃~+60℃
- Charge Temperature (℃):
- 0℃ ~+45℃
- Storage Temperature (℃):
- Storage SOC:
- 25%
- Maximum Elevation:
- 3000 m (9843 ft)
- Warranty:
- 5 Years
Gobel Power was established in 2012 and is based in Shenzhen, China. Our products and services include wholesaling cylindrical & prismatic LiFePO4 and Lithium Ion battery cells, producing lithium battery packs and providing battery solutions. Our products are mainly used in solar energy storage, electric bikes, electric scooters, electric motorbike, boats, forklifts, sweepers, golf carts, and recreational vehicles.
-
