GOBEL POWER
PowerCarol 16 Datasheet
01
Overview
of 05
51.2 V · 314 Ah · LiFePO₄ · 16 kWh
PowerCarol 16
IP65 outdoor storage. Indoor or outdoor, 1 to 63 units.
Energy
16kWh
Cycle life
8,000+
Power
7.68kW
Parallel
63units
IP65 indoor & outdoor
63 max parallel
Movable casters + handles
LED SOC bar
Active balancing
Cells stay matched
Auto parallel network
Addresses set on power-up
Wi-Fi cloud BMS
Gobel VRM · Gobel Console APP
Built-in breaker
200 A · front panel access
Model
GP-WP1-16K
Nominal
51.2 V
Capacity
314 Ah
Chemistry
LiFePO4
Usable energy
16 kWh
Cabinet
IP65 outdoor
CE · UN38.3
Conformity & transport tested
Max 10-year warranty
Design life 10+ years
IP65 sealed
Indoor & outdoor
128 Wh/kg
130 Wh/L cabinet density
GOBEL POWER
PowerCarol 16 Datasheet
02
Size
how many units
How many units?
Typical projects · 16 kWh each
1 unit
Home essentials
16 kWh · one night
2–4 units
Whole home + solar
32–64 kWh
1–2 units
Off-grid cabin
16–32 kWh · 2–4 days
8–63 units
Commercial / C&I
128–1,008 kWh
Backup runtime · one unit
16 kWh usable · 100% DoD
500 W
32.0 h
1,000 W
16.0 h
2,000 W
8.0 h
3,000 W
5.3 h
5,000 W
3.2 h
7,680 W
2.1 h
Scale up anytime
Parallel only — never in series
16
1 unit
64
4 units
256
16 units
1,008
63 units · kWh
One pack, one wall, any weather
Recharge 75 A
4.2 h
Recharge 100 A
3.1 h
Recharge 150 A
2.1 h
GOBEL POWER
PowerCarol 16 Datasheet
03
Specs
the numbers
01Electrical & energy
| Chemistry | LiFePO₄ · 16S1P |
| Nominal voltage | 51.2 V |
| Operating voltage | 44.8 – 58.4 V |
| Capacity | 314 Ah |
| Nominal / usable energy | 16 kWh |
| Cont. charge / discharge | 150 A / 150 A |
| Peak charge / discharge | 200 A (25 s) |
| Max. output power | 7.68 kW |
| Max. depth of discharge | 100% |
| Cycle life | 8,000+ (25 °C, 70% EOL) |
02Physical & environment
| Dimensions (W×H×D) | 480 × 959 × 270 mm |
| Weight | approx. 125 kg |
| Energy density | 128 Wh/kg · 130 Wh/L |
| Installation | Floor-standing (casters + handles) |
| Display | LED bar (SOC · alarm) |
| Ingress protection | IP65 · indoor & outdoor |
| Charge temperature | 0 … +55 °C |
| Discharge temperature | −20 … +55 °C |
| Storage / humidity / altitude | 0…+35 °C · ≤95% RH · ≤3,000 m |
03BMS, safety & control
| BMS | PC200B |
| Isolation protection | Built-in 200 A circuit breaker |
| Ports | CAN · RS485 · RS232 · Wi-Fi |
| Balancing | Active, bidirectional |
| Protections | Voltage · current · temp · short |
| Monitoring | Gobel VRM cloud · Gobel Console APP |
| Platform | Home Assistant · ioBroker |
| Parallel networking | Auto-address on power-up |
| Max. parallel | 63 units · 1,008 kWh |
| Series connection | Prohibited |
04Compliance & warranty
| Certifications | CE · UN38.3 |
| Warranty | Max 10 years |
| Design life | 10+ years |
| Energy throughput | 50 MWh |
| Documents | Manual · test report · MSDS |
| Customization | OEM / ODM on request |

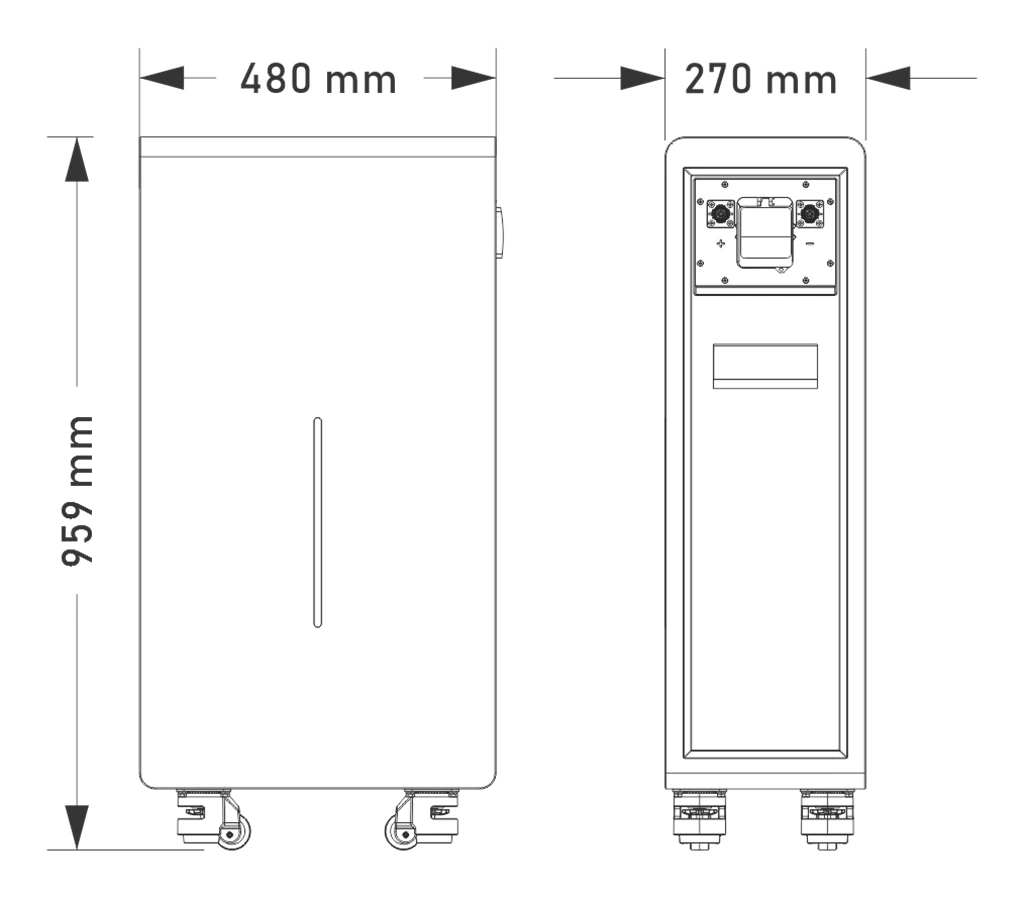

Dimensions
Floor-standing cabinet · 480 × 959 × 270 mm
Width480 mm
Height959 mm
Depth270 mm
Weightapprox. 125 kg
MovingCasters + side handles
Breaker200 A, front panel
GOBEL POWER
PowerCarol 16 Datasheet
04
Connect
inverter protocols & safety
Inverter compatibility
Pre-configured CAN & RS485 protocol library · plug & play
CAN
PC200B BMS
1 AFORE
2 Pylontech / Deye (Sol-Ark, SunSynk, SunGrow, Megarevo, EG4, LiVolTek,
CHNT Power)
3 FUJI
4 GoodWe
5 Growatt (Sacolar)
6 INVT
7 Luxpower (EG4)
8 Must
9 Schneider
10 Senergy
11 SMA
12 Sofar
13 Solis
14 Sorotec
15 Studer
16 TBB
17 Victron
RS485
PC200B BMS
18 AFORE
19 Deye (Bentterson)
20 ELTEK
21 Growatt
22 LEOCH
23 Luxpower
24 OREX SUNPOLO
25 Phocos
26 Pylontech (Anern)
27 Schneider
28 SRNE
29 Voltronic (EA Sun Power, MPP Solar)
Wi-Fi
Gobel VRM cloud
30 Gobel VRM APP (Android / iOS)
31 Gobel Console APP
32 Home Assistant
33 ioBroker
RS232
Local console
34 Commissioning & configuration
35 Firmware upgrade
36 Service log export

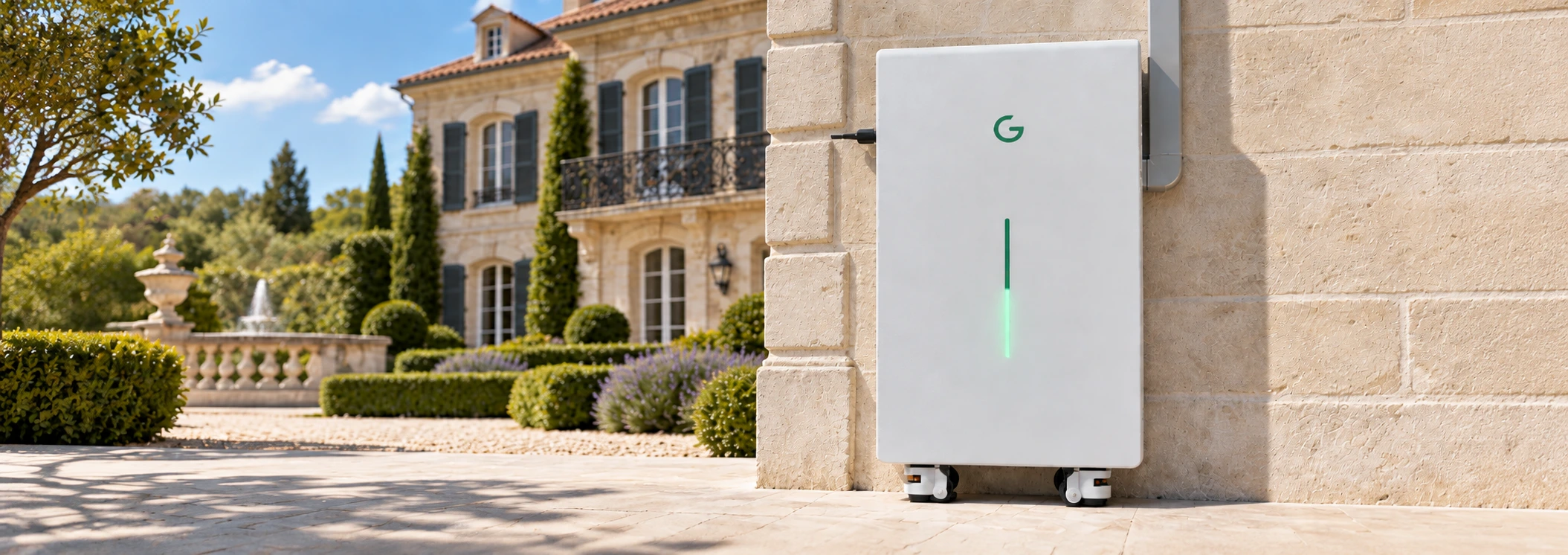

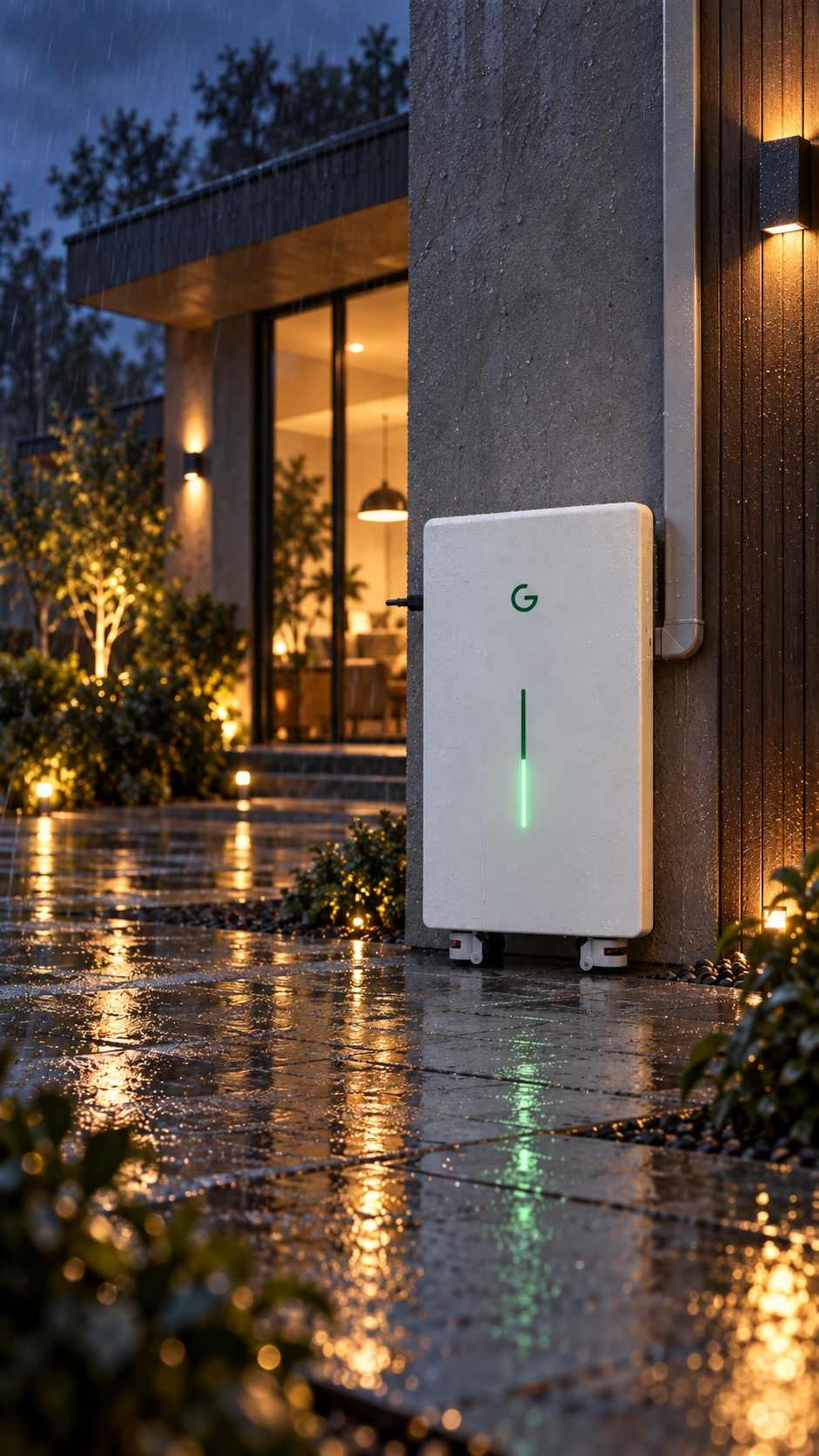

Built to live outdoors
IP65 sealed on casters — installs against any wall, no shelter or enclosure
Six layers of safety
Cell → BMS → chemistry → enclosure
Cell grade
314 Ah matched
Smart BMS
Cell-level cut-off
Active balancer
Bidirectional equalising
IP65 cabinet
Weather sealed
200 A breaker
Built into the cabinet
Certified
CE · UN38.3
Certified & tested
Independently verified
CE
European conformity
UN38.3
Air transport safe
GOBEL POWER
PowerCarol 16 Datasheet
05
Order
build your code
Configure · your build
Cell, grade and thermal
1Cell brand
Choose one
2Cell grade
Choose one
3BMS & scale
Fixed
4Thermal & finish
Add-on + colour
Your order code
GP-WP1-16K-EV314H-PC200B-HEAT-BLK
Quick answers
Before you order
Series wiring?No — parallel only, up to 63
units.
My inverter?CAN / RS485 auto-match, 29
brands.
How many units?Backup 1–2 · whole home
2–4.
Outdoors?Yes — IP65, no shelter or outdoor
enclosure.
Cold climate?Add heating pad to charge below 0
°C.
Warranty?Max 10 years.
How is it moved?Castors and side handles on the
cabinet.
Which BMS?PC200B — one version, no
options.
Send your load list.
Get a sizing sheet back.
Free sizing, wiring diagram and landed cost — within one business day.
