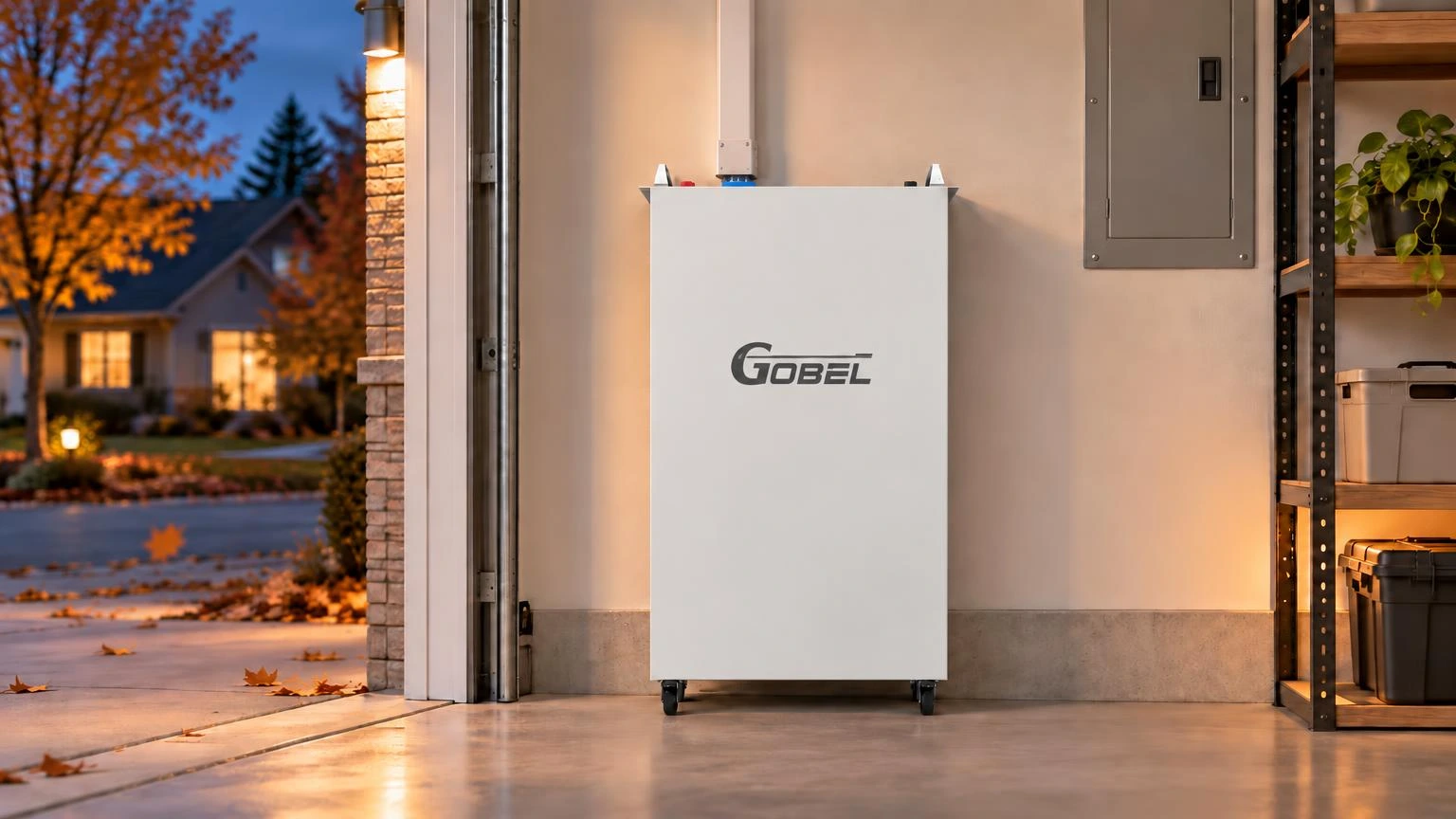

PowerFable 16
High Capacity, Safer
314Ah LiFePO₄ cells — approx. 16kWh per unit.
Stable chemistry with excellent thermal stability; 100% DOD, ≥8000 cycles.
Built-in intelligent BMS guards against over-charge, over-discharge, over-temperature and short circuit.
Flexible Installation
6U standard rack-mount enclosure with casters.
Rack-mount, stacked (up to 3 units) or floor-standing installation.
Built-in circuit breaker for electrical isolation protection.
Flexible & Scalable
Parallel expansion: max. 63 units (PCBMS Version) / 16 units (JKBMS Version).
PCBMS auto-networks on power-up — no DIP setup; JKBMS sets addresses via 4-bit DIP.
For residential and small commercial & industrial energy storage.
Smart & Connected
Built-in WiFi, compatible with the Gobel VRM online monitoring platform, plus Home Assistant and ioBroker.
One-click battery configuration and upgrades via the mobile app.
RS485A/CAN (inverter) & RS485B/RS485C (parallel) — fits mainstream inverters.
JKBMS: Max. 16 units in parallel
floor-standing, with casters
JKBMS: RS485A/CAN · RS485B/RS485C · WiFi · DRY
JKBMS: JKBMS APP (Bluetooth)
[2] PCBMS Version: battery modules auto-network on power-up — no DIP switch settings required. JKBMS Version: parallel address set manually via 4-bit DIP switches (host = 0, slaves 1–15).
[3] The current is affected by temperature and SOC.
[4] Energy throughput: the total cumulative charge/discharge energy over the battery's entire service life.

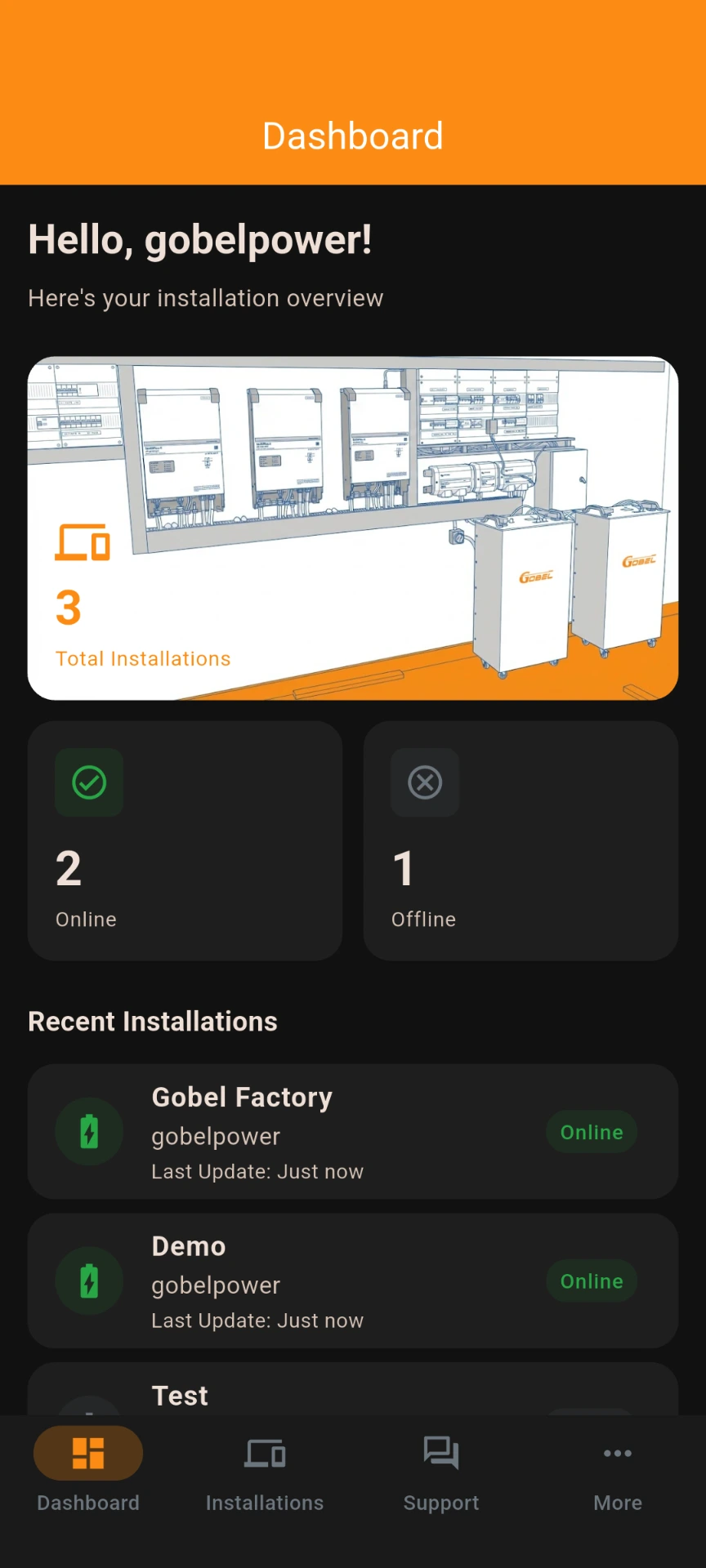

Installation Dashboard
- Every site at a glance — online and offline status in one view
- Recent installations with the last data update
- Connects over the battery's built-in WiFi

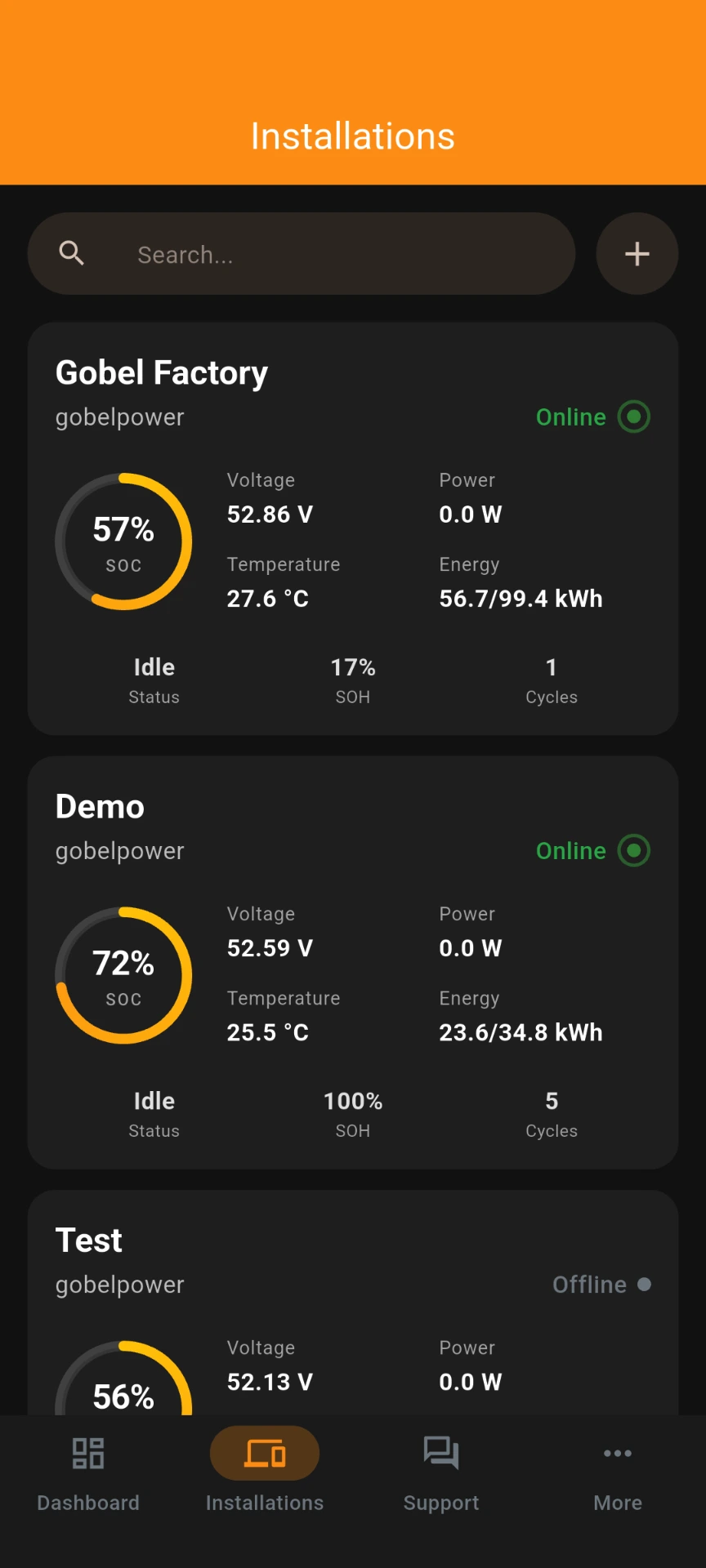

Real-Time Monitoring
- Live SOC, voltage, current and temperature for every pack
- Status, SOH and cycle count at a glance
- Alarms and battery status anytime, anywhere

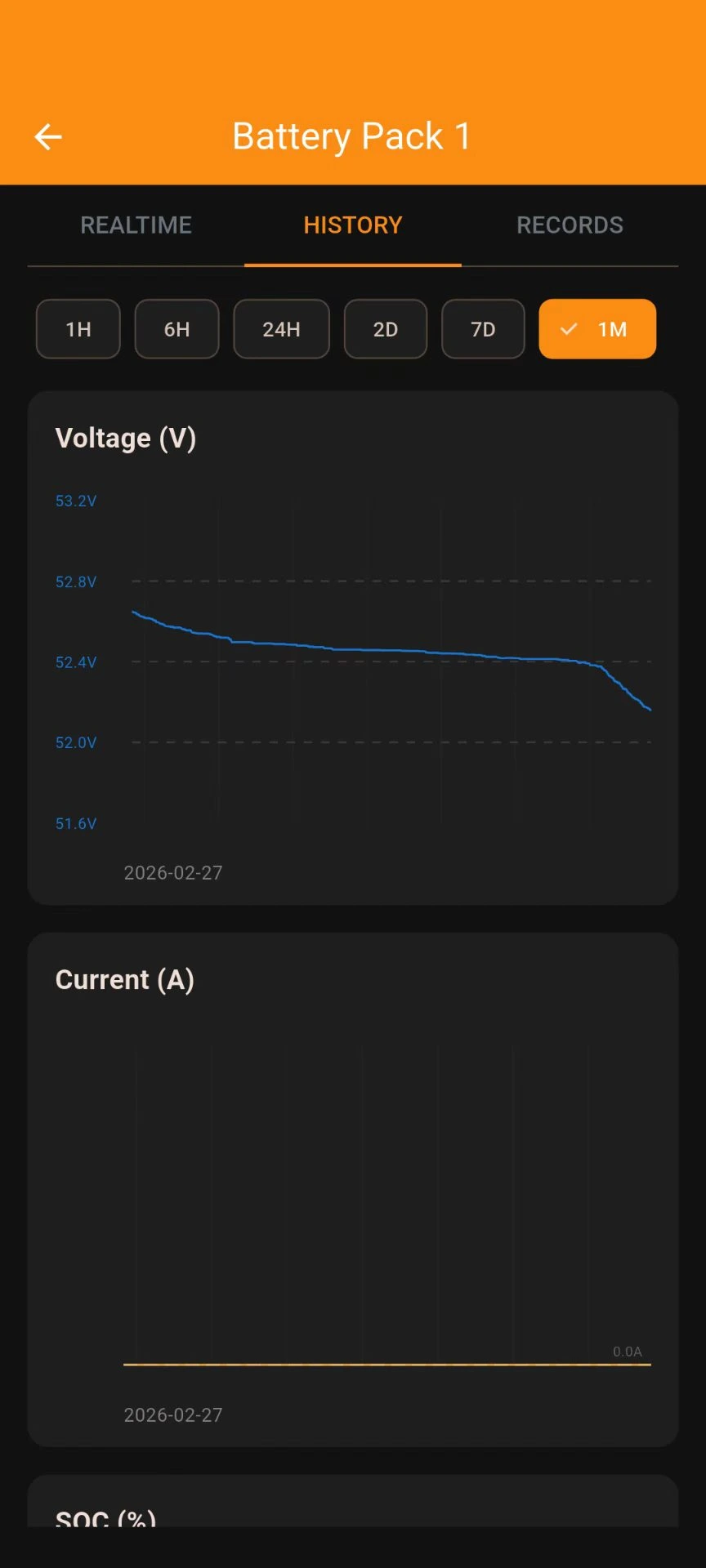

History & Records
- Voltage, current and SOC trend charts from 1 hour to 1 month
- Realtime, History and Records views per battery pack
- Spot trends early and schedule service ahead
