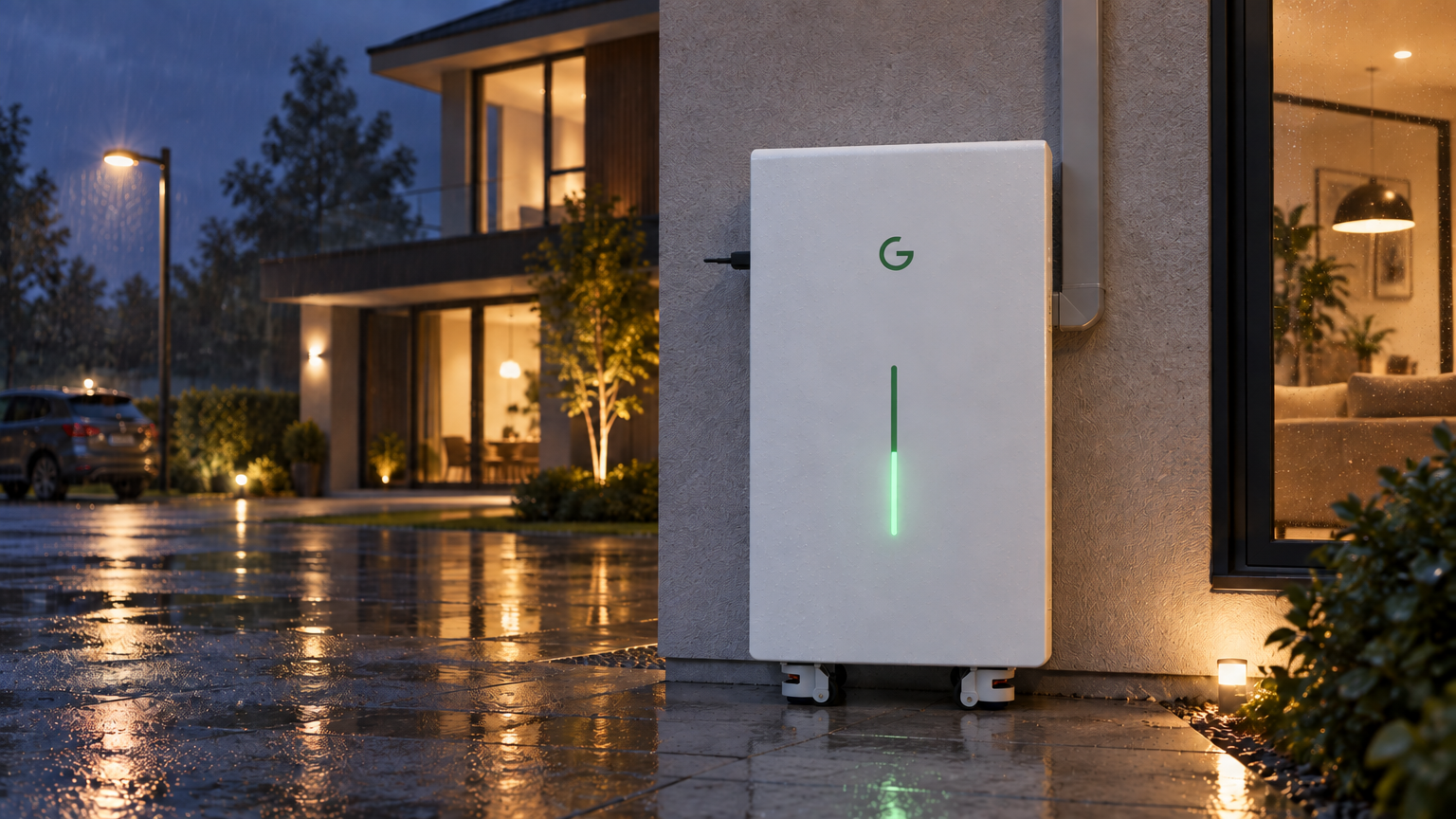

Gobel PowerCarol 16 GP-WP1-16K-PC200B floor-standing battery installed in a residential courtyard at night

PowerCarol 16

GP-WP1-16K-PC200B

High Capacity, Safer

314Ah LiFePO₄ cells — approx. 16 kWh, stable chemistry with excellent thermal safety.
Built-in intelligent BMS guards against over-charge, over-discharge, over-temperature and short circuit.
100% DOD, service life ≥8000 cycles.

Indoor & Outdoor Ready

IP65-rated housing — installs indoors or outdoors.
Floor-standing on castors with side handles; one person can move it over short distances.
Charge 0℃~55℃, discharge -20℃~55℃.

Flexible & Scalable

Max. 63 units in parallel for easy capacity expansion.
Parallel addresses assigned automatically on power-up — no DIP switches.
For home, small commercial & industrial, UPS and off-grid systems.

Smart & Connected

Built-in WiFi, compatible with the Gobel VRM monitoring platform, plus Home Assistant and ioBroker.
Gobel Console APP — one-touch configuration and upgrade.
CAN / RS485 / RS232 interfaces fit mainstream inverters.

PRODUCT OVERVIEW
Model GP-WP1-16K-PC200B
Main Parameters
Battery Chemistry
Rated Capacity (Ah) [1]
Scalability [2]
Nominal Voltage (V)
Operating Voltage (V)
Nominal Energy (kWh)
Usable Energy (kWh) [1]
Max. Output Power (kW)
Charge Current (A) [3]
Max. Continuous
Peak
Discharge Current (A) [3]
Max. Continuous
Peak
Other Parameter
Max. Depth of Discharge
Dimension (W/H/D)
Weight Approx.
Display
Ingress Protection Rating
Operating Temperature
Storage Temperature
Relative Humidity
Altitude
Cycle Life
Active Balancing
Isolation Protection
Installation
Communication
Energy Throughput [4]
LiFePO4
314
Max. 63 pcs in parallel; series prohibited
51.2
44.8 - 58.4
16
16
7.68
150
200 (25 s )
150
200 (25 s )
100% DOD
W477 × H959 × D270 mm
Approx. 125 kg
LED light bar (SOC, alarm)
IP65
Charge: 0℃~55℃,
Discharge: -20℃~55℃
0℃~35℃
95% (non-condensing)
≤3000 m
≥8000 cycles (25℃±2℃, 70% EOL)
Yes
Built-in Circuit Breaker
Floor-Standing (castors & handles)
CAN, RS485, RS232, WiFi
50 MWh
[1] Test conditions: 25℃±2℃, at beginning of life (BOL), 0.5C charge / 0.5C discharge, 100% DOD.
[2] Battery modules auto-network on power-up — parallel address assigned automatically, no DIP switches required.
[3] The current is affected by temperature and SOC.
[4] Energy throughput: the total energy charged into and discharged from the battery over its service life.
Gobel VRM Monitoring
Built-in WiFi streams your PowerCarol's live data to the Gobel VRM cloud platform — monitor every battery pack, anytime, anywhere, right from your phone.
Gobel VRM dashboard — installations overview with online status
1

Installation Dashboard

  • Every site at a glance — online and offline status in one view
  • Recent installations with the last data update
  • Connects over the battery's built-in WiFi
Gobel VRM installations — real-time SOC, voltage, current and temperature
2

Real-Time Monitoring

  • Live SOC, voltage, current and temperature for every pack
  • Status, SOH and cycle count at a glance
  • Alarms and battery status anytime, anywhere
Gobel VRM battery pack history — voltage, current and SOC charts
3

History & Records

  • Voltage, current and SOC trend charts from 1 hour to 1 month
  • Realtime, History and Records views per battery pack
  • Spot trends early and schedule service ahead
Smarten Up Your Home Energy
Scan to download the Gobel VRM APP!
Enjoy a smarter, simpler energy experience with Gobel Power — monitor, manage, and stay connected to your energy system anytime, anywhere.
QR code — Gobel VRM on Google Play
Google Play
QR code — Gobel VRM on the App Store
App Store
