About this product

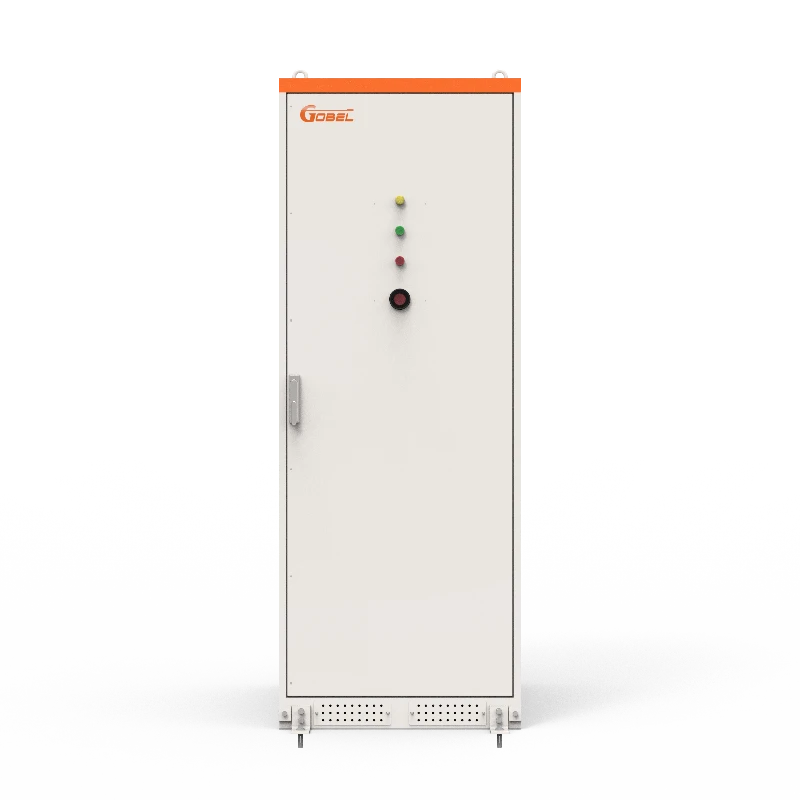

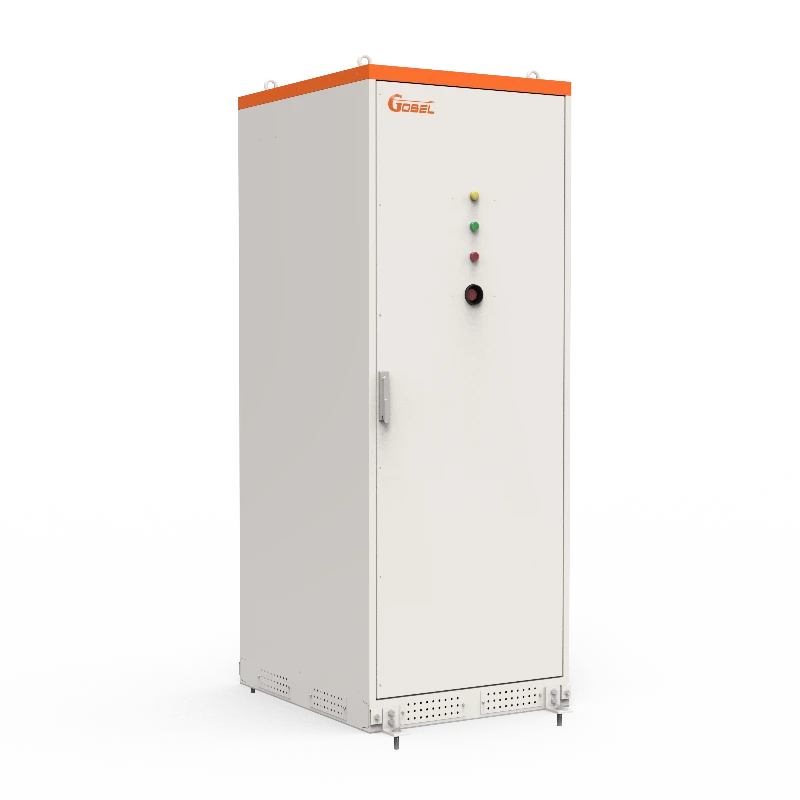

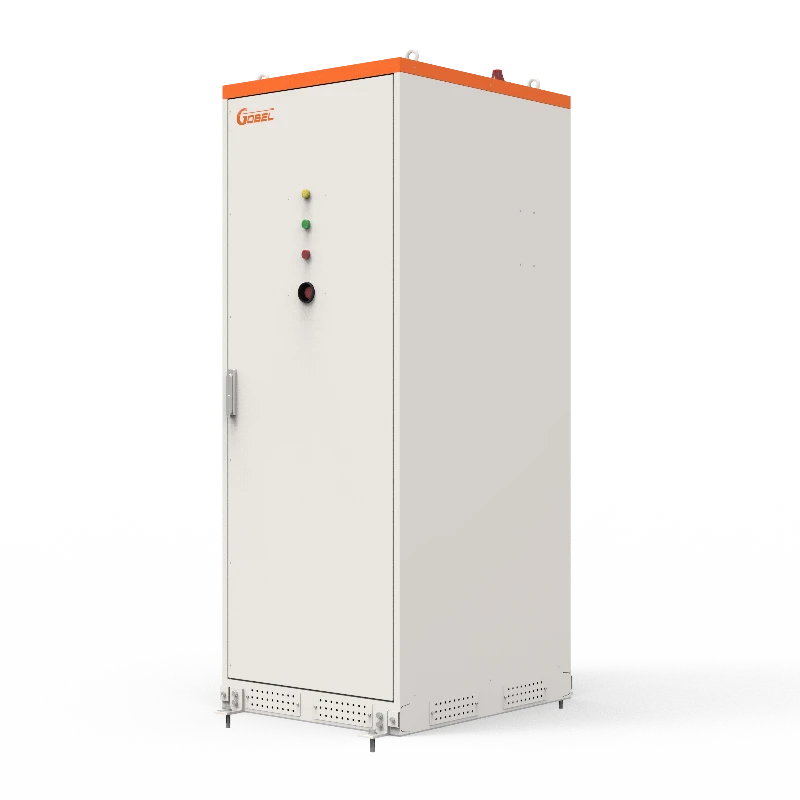

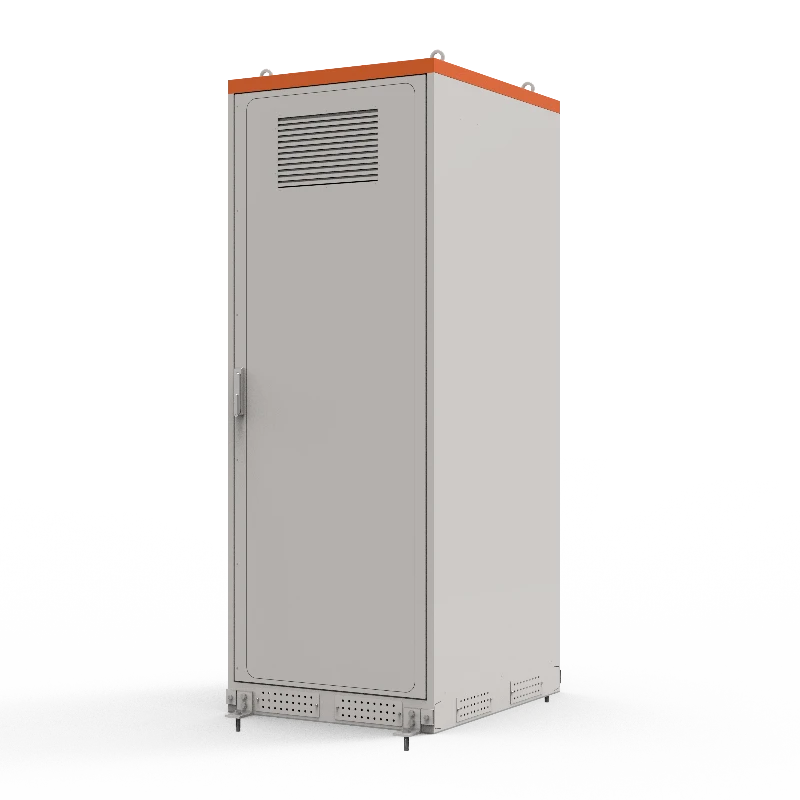

The Gobel Power GP-HV1-B126K is a robust 403V 126kWh high-voltage lithium iron phosphate (LiFePO4) battery system, engineered for commercial and industrial energy storage applications. The system is composed of seven 18S 314Ah battery modules and a high-voltage control box, delivering a total energy capacity of 126kWh with a maximum output power of up to 48kW.
Built with a modular design, the GP-HV1-B126K allows for easy transportation, installation, and maintenance. It features an efficient air-cooling system for stable operation in a wide temperature range (-30°C to +50°C), while its IP55 enclosure and C4 anti-corrosion rating ensure durability in harsh environments.
This system is designed to operate without an integrated PCS, giving system designers the flexibility to choose from compatible inverters such as Deye, Growatt, and Sofar, etc. With built-in RS485, CAN, and Ethernet communication ports, it enables seamless connectivity with mainstream energy control systems, ensuring quick integration and real-time monitoring.
An advanced Battery Management System (BMS) protects the system from over-voltage, under-voltage, over-temperature, over-current, and cell imbalance, ensuring long-lasting safety and performance.
With its high voltage architecture and scalable capacity, the GP-HV1-B126K is ideal for renewable energy storage, commercial backup, peak shaving, and EV charging support. Its compact footprint and modular construction make it an optimal solution for flexible, high-efficiency energy storage in medium to large-scale deployments.
Technical Specifications
- Model:
- GP-HV1-B126K
System Technical Specifications
- Nominal Output Power:
- 48kW
- Capacity:
- 126kWh
- Battery Chemistry:
- LFP (LiFePO4)
- System Ingress Protection:
- IP55
- Operation Temperature Range:
- -30~50°C
- Communication:
- LAN, CAN, RS485, I/O
- Warranty:
- 5 Years Product Warranty, 10 Years Battery Performance Warranty
- Certifications & Standards:
- IEC 62619, UN38.3, EN IEC 62477-1,EN IEC 61000-6-2/4
DC side
- Cell type:
- LFP, 314Ah, 3.2VDC
- Battery configuration:
- 1P18S*7S
- Nominal voltage:
- 403VDC
- Voltage range:
- 315~460VDC
- Nominal energy:
- 126kWh
- Rated C rate:
- 0.5CP
- Overcurrent protection:
- Fuse+Breaker
- Cooling method:
- Active fan cooling
- Battery Management System:
- 7 * BMU + 1 * BCMU
- Cell balancing type:
- Active cell balancing, 4A
Fire Suppression System
- Detectors:
- Smoke detector, Heat detector, Combustible gas detector
- Deflagration venting:
- Ventilation
- Fire extinguishing:
- Aerosol, Dry water pipe
- Alarm:
- Sound-light fire alarm
General
- Weight:
- 1280kg
- Dimensions (W*D*H):
- 600*1000*2150mm
- Working temperature:
- -30~50°C (Derating above 45°C)
